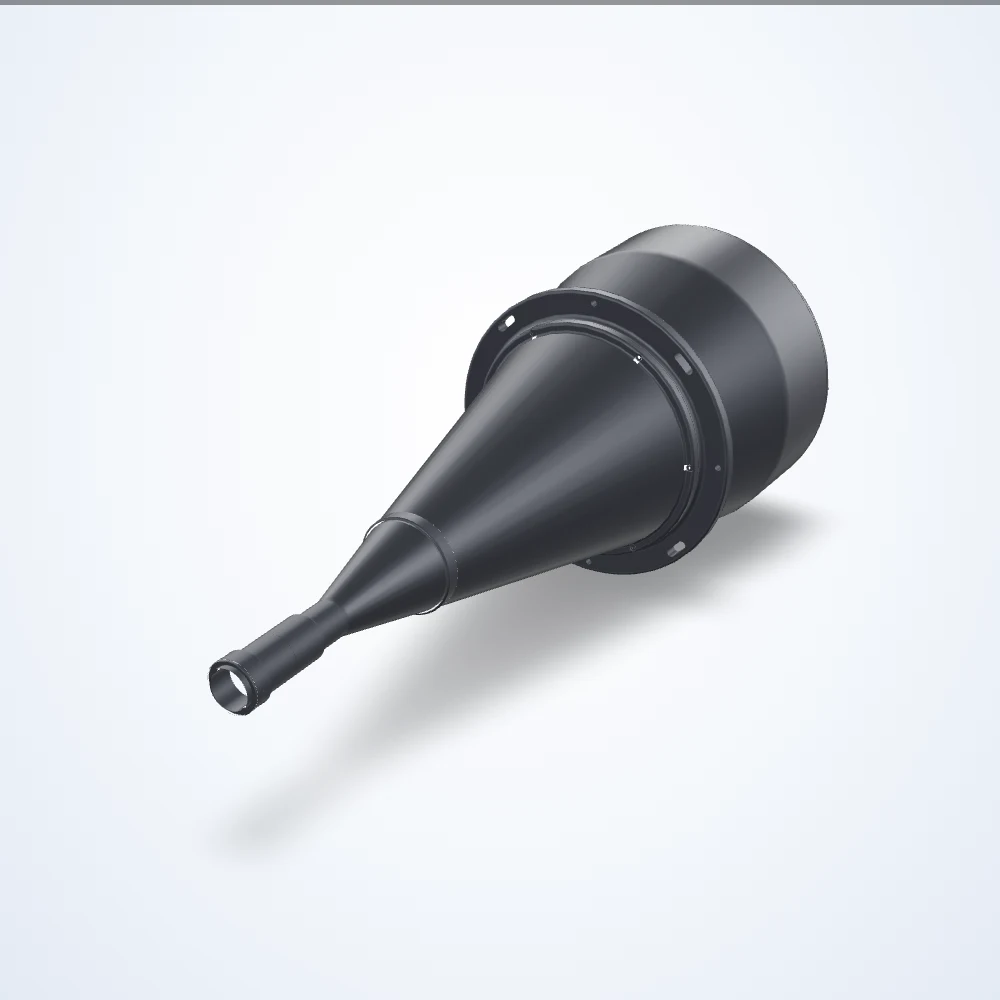

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.096× telecentric lens, APS-C, M42-mount (LS-TCL-0133)
Model LS-TCL-0133
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 492.8 mm; depth of field 71.6 mm.
Specifications
| Model | LS-TCL-0133 |
|---|---|
| Magnification | 0.096× |
| Working distance | 492.8 mm |
| Sensor format | APS-C |
| Mount | M42-Mount |
| Depth of field | 71.6 mm |
| 4/3″ IMX367 | 159.27 x 159.38 mm |
| 4/3″ IMX387 | 196.56 x 110.83 mm |
| Aps-c IMX342 | 232.92 x 174.69 mm |
| Dimensions approximate | 862 x 322 x 322 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Front diameter | 322 mm |
| Image circle | 28 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 298.65 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 53 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.03° |
| Working ƒ/n | f/8 |
| Weight | 18452 Grams |
