Telecentric lenses

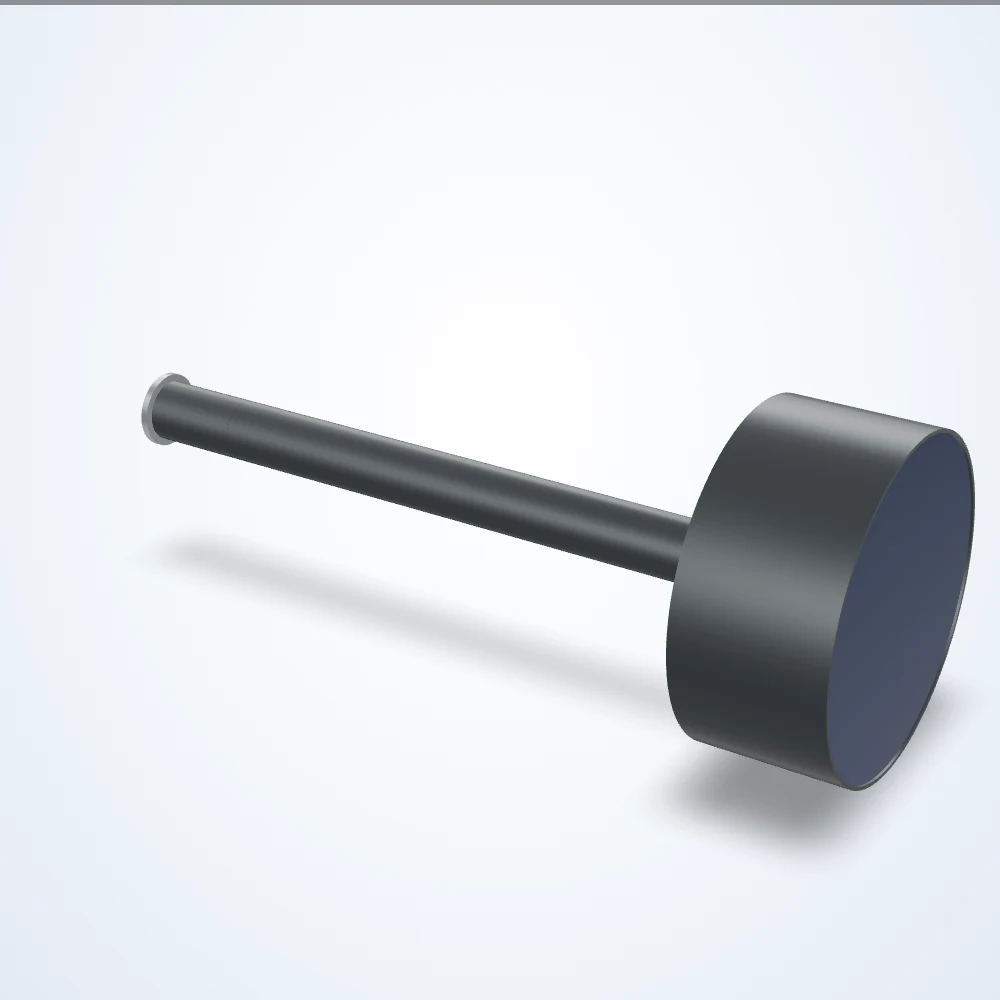

0.156× telecentric lens, APS-C, F-Mount (LS-TCL-0128)
Model LS-TCL-0128
0.156× telecentric lens, APS-C, F-Mount. Working distance 396 mm. Depth of field 27.1 mm.
Specifications
| Model | LS-TCL-0128 |
|---|---|
| APS-C IMX342 | 143.33 x 107.5 mm |
| Depth Of Field | 27.1 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.08 |
| Front Diameter | 200 mm |
| Image Circle Diameter | 28 mm |
| Lens Type | Telecentric |
| Line 4k-7µm | 183.78 mm |
| Magnification | 0.156× |
| Resolution (Pixel Size) | 33 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.06° |
| Working Distance | 396 mm |
| Working ƒ/N | f/8 |
| Mount | F |
| Weight (g) | 6022 |
| Dimensions (dia. x length, mm) | 200 x 506.87 |
| Front clamping diameter | Ø200 h8 |
| Other diameters | Ø200 h8 (second clamping/flange), Ø100 (rear cone start), Ø37.80 h8 (rear clamping), Ø45, Ø64 (mount ring) |
| Clear aperture | Ø186 |
| Flange distance | 46.5 mm (F-mount) |
| Front flange holes | M5 x4 and Ø8 x4 on Ø180 circle |
| Rear protrusion behind mount | 4.3 mm |
| Phase adjustment | yes |
