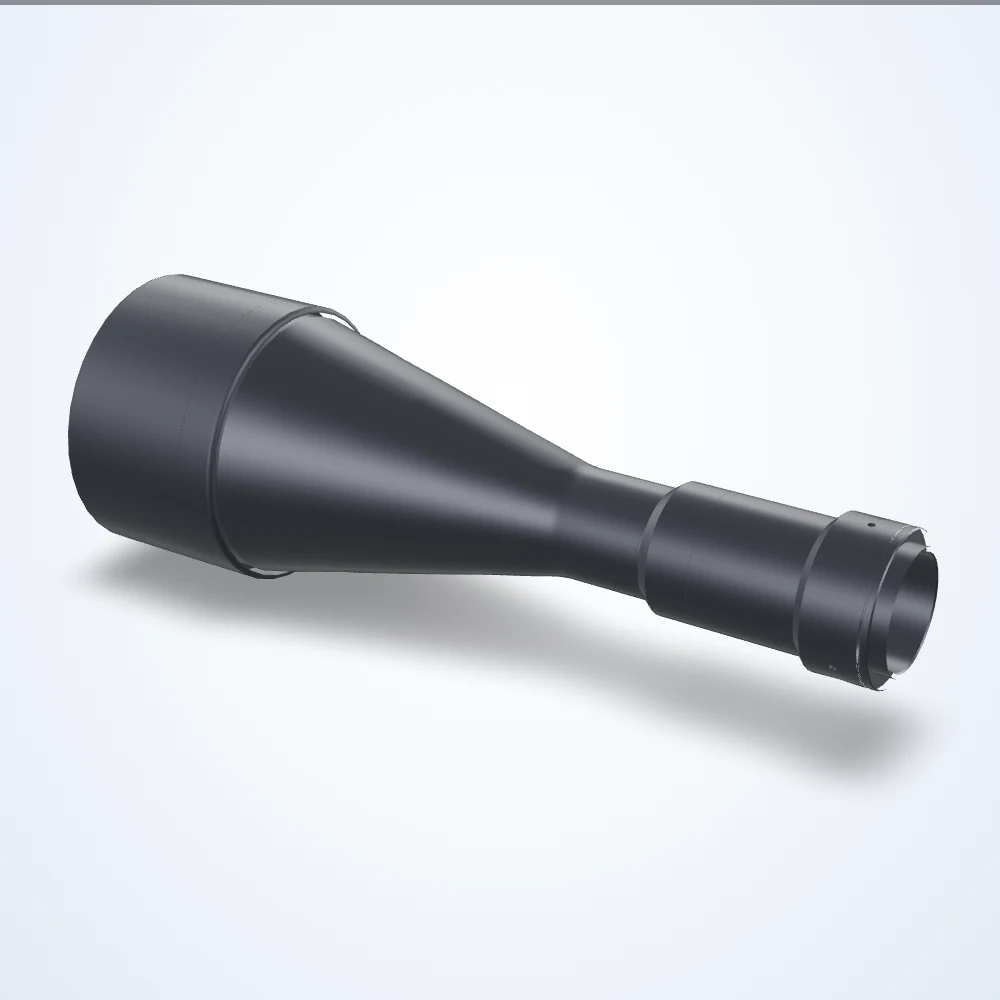

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.351× telecentric lens, APS-C, M42-Mount (LS-TCL-0121)
Model LS-TCL-0121
0.351× telecentric lens, APS-C, M42-Mount. Working distance 181.9 mm. Depth of field 5.4 mm.
Specifications
| Model | LS-TCL-0121 |
|---|---|
| APS-C IMX342 | 63.70 x 47.78 mm |
| Depth Of Field | 5.4 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.04 |
| Filter Thread | No Filter Threads |
| Front Diameter | 100 mm |
| Image Circle Diameter | 28 mm |
| Imager Format | APS-C |
| Lens Type | Telecentric |
| Line 4k-7µm | 81.68 mm |
| Magnification | 0.351× |
| Mount | M42-Mount |
| Resolution (Pixel Size) | 14 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.08° |
| Working Distance | 181.9 mm |
| Working ƒ/N | f/8 |
