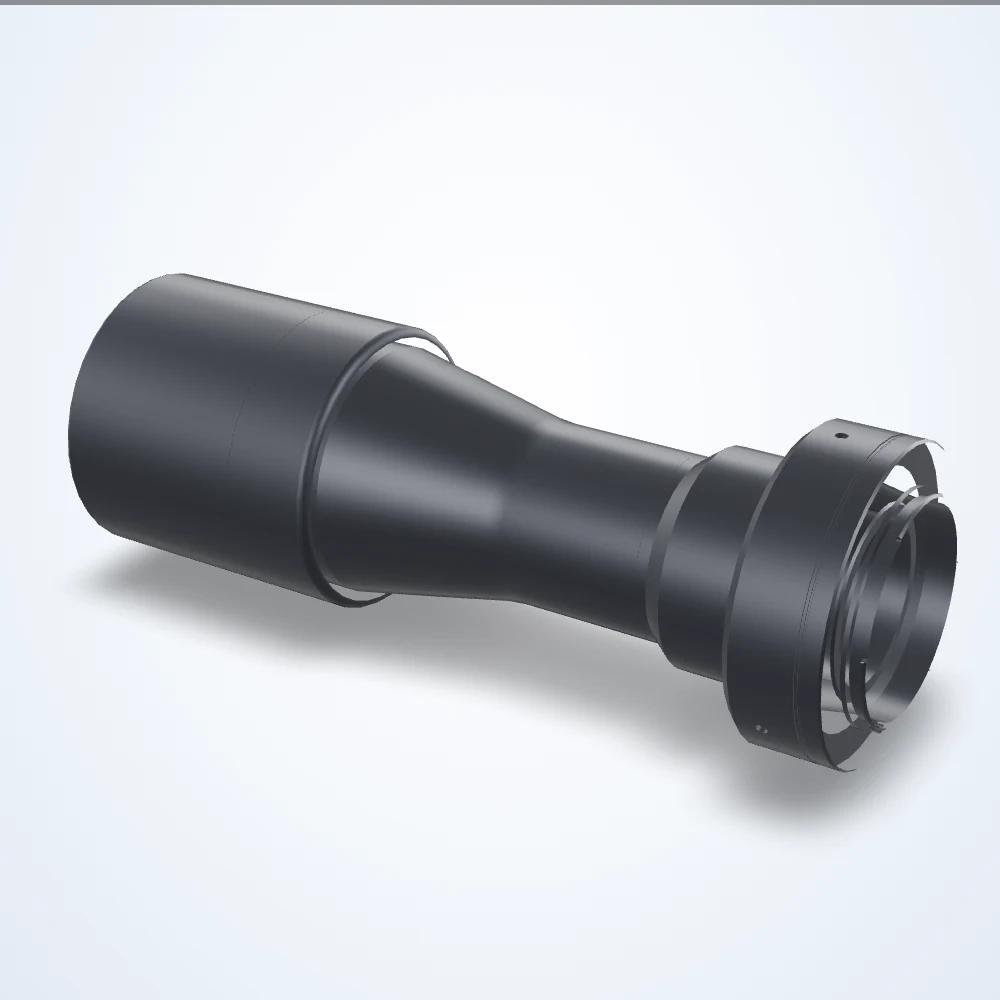

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.617× telecentric lens, APS-C, F-mount (LS-TCL-0114)
Model LS-TCL-0114
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 102.6 mm; depth of field 2.4 mm.
Specifications
| Model | LS-TCL-0114 |
|---|---|
| Magnification | 0.617× |
| Working distance | 102.6 mm |
| Sensor format | APS-C |
| Mount | F-Mount |
| Depth of field | 2.4 mm |
| 4/3″ IMX367 | 24.78 x 24.8 mm |
| 4/3″ IMX387 | 30.58 x 17.24 mm |
| Aps-c IMX342 | 36.24 x 27.18 mm |
| Dimensions approximate | 176.3 x 61 x 61 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.07 |
| Filter thread | No Filter Threads |
| Front diameter | 61 mm |
| Image circle | 28 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 46.47 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 11 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.07° |
| Working ƒ/n | f/11 |
| Weight | 677 Grams |
