Home / Lenses / Telecentric lenses / 0.469× telecentric lens, APS-C, M42-Mount

0.469× telecentric lens, APS-C, M42-Mount (LS-TCL-0117)

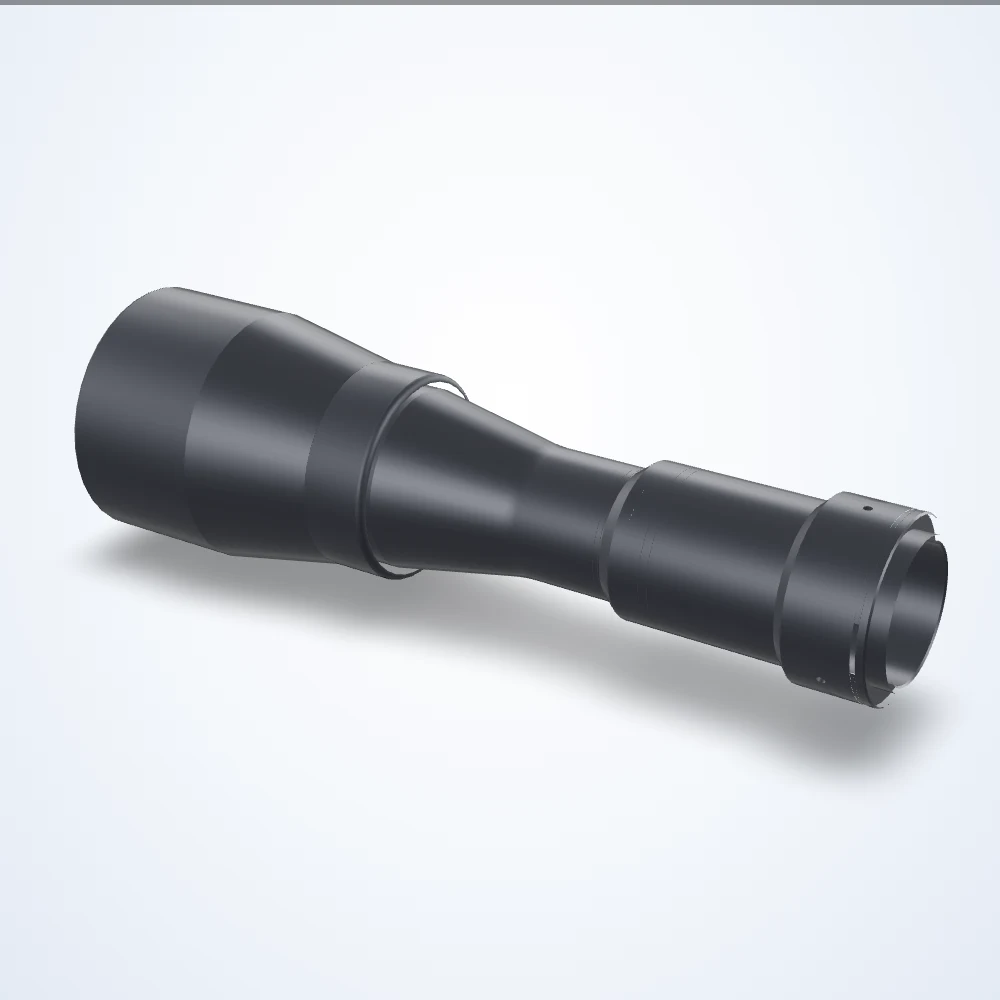

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.469× telecentric lens, APS-C, M42-Mount (LS-TCL-0117)

Model LS-TCL-0117

0.469× telecentric lens, APS-C, M42-Mount. Working distance 132.9 mm. Depth of field 3 mm.

Datasheet (PDF) - LS-TCL-0117 3D model (STEP) - LS-TCL-0117

Specifications

Model	LS-TCL-0117
APS-C IMX342	47.68 x 35.76 mm
Depth Of Field	3 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.05
Filter Thread	No Filter Threads
Front Diameter	75 mm
Image Circle Diameter	28 mm
Imager Format	APS-C
Lens Type	Telecentric
Line 4k-7µm	61.13 mm
Magnification	0.469×
Mount	M42-Mount
Resolution (Pixel Size)	11 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.02°
Working Distance	132.9 mm
Working ƒ/N	f/8
