Telecentric lenses

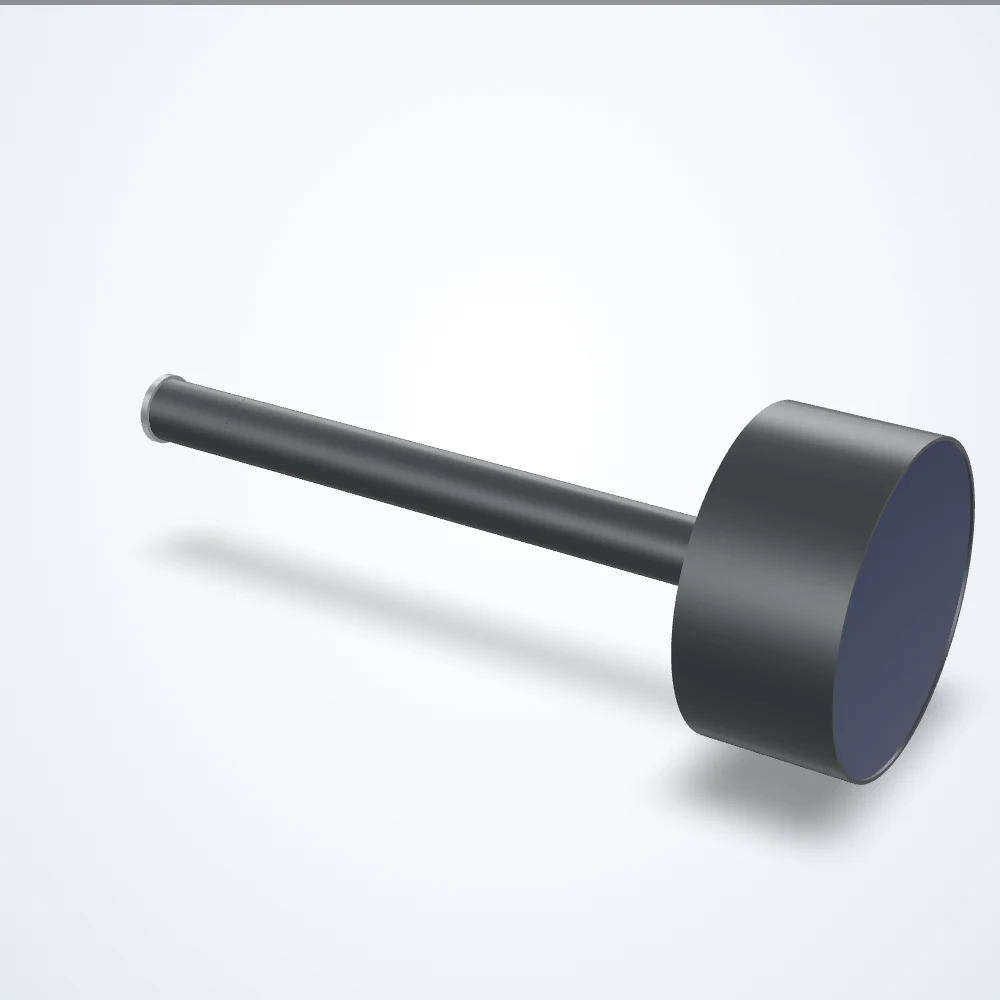

0.184× telecentric lens, APS-C, M42-Mount (LS-TCL-0127)
Model LS-TCL-0127
0.184× telecentric lens, APS-C, M42-Mount. Working distance 334.6 mm. Depth of field 19.5 mm.
Specifications
| Model | LS-TCL-0127 |
|---|---|
| APS-C IMX342 | 121.52 x 91.14 mm |
| Depth Of Field | 19.5 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.06 |
| Front Diameter | 180 mm |
| Image Circle Diameter | 28 mm |
| Lens Type | Telecentric |
| Line 4k-7µm | 155.82 mm |
| Magnification | 0.184× |
| Resolution (Pixel Size) | 28 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.07° |
| Working Distance | 334.6 mm |
| Working ƒ/N | f/8 |
| Mount | M42 |
| Weight (g) | 4840 |
| Dimensions (dia. x length, mm) | 180 x 476.92 |
| Front clamping diameter | Ø180 h8 |
| Other diameters | Ø180 h8 (second clamping/flange), Ø100 (rear cone start), Ø37.80 h8 (rear clamping), Ø45, Ø52 (mount ring) |
| Clear aperture | Ø166 |
| Flange distance | 12 mm (Mount M42x1) |
| Front flange holes | M5 x4 and Ø8 x4 on Ø165 circle |
| Rear protrusion behind mount | 4.03 mm |
| Phase adjustment | yes |
