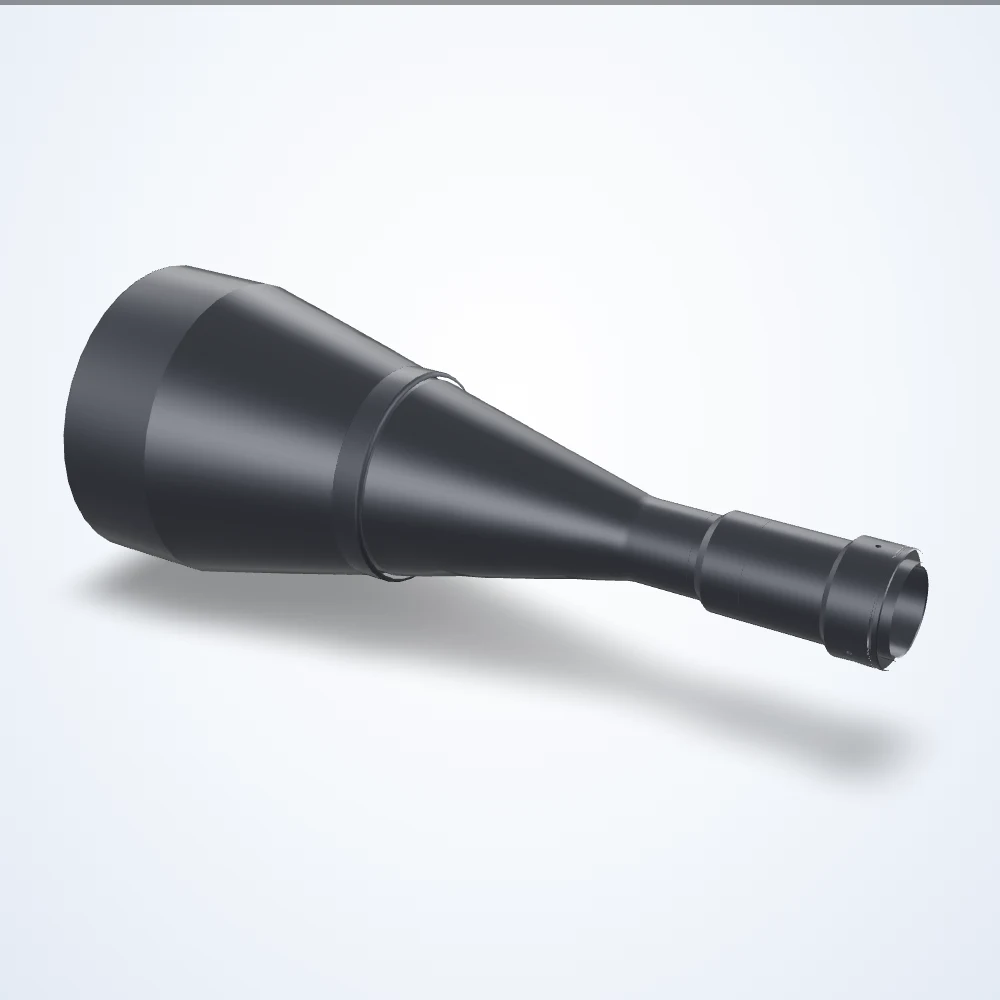

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.238× telecentric lens, APS-C, M42-mount (LS-TCL-0125)
Model LS-TCL-0125
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 278.6 mm; depth of field 11.7 mm.
Specifications
| Model | LS-TCL-0125 |
|---|---|
| Magnification | 0.238× |
| Working distance | 278.6 mm |
| Sensor format | APS-C |
| Mount | M42-Mount |
| Depth of field | 11.7 mm |
| 4/3″ IMX367 | 64.24 x 64.29 mm |
| 4/3″ IMX387 | 79.29 x 44.71 mm |
| Aps-c IMX342 | 93.95 x 70.46 mm |
| Dimensions approximate | 392 x 143 x 143 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.07 |
| Filter thread | No Filter Threads |
| Front diameter | 143 mm |
| Image circle | 28 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 120.46 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 21 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.05° |
| Working ƒ/n | f/8 |
| Weight | 2393 Grams |
