Home / Lenses / Telecentric lenses / 0.888× telecentric lens, APS-C, M42-Mount

0.888× telecentric lens, APS-C, M42-Mount (LS-TCL-0113)

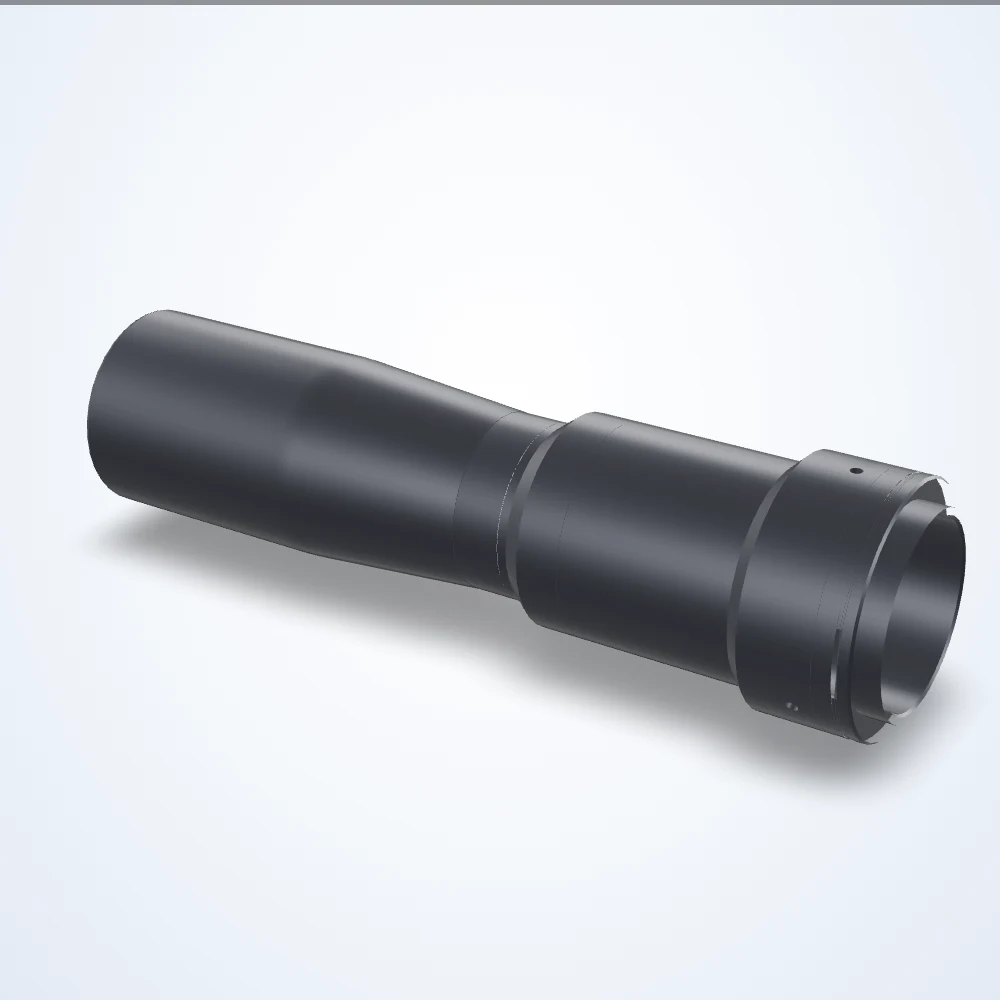

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.888× telecentric lens, APS-C, M42-Mount (LS-TCL-0113)

Model LS-TCL-0113

0.888× telecentric lens, APS-C, M42-Mount. Working distance 67.2 mm. Depth of field 1.2 mm.

Datasheet (PDF) - LS-TCL-0113 3D model (STEP) - LS-TCL-0113

Specifications

Model	LS-TCL-0113
APS-C IMX342	25.18 x 18.89 mm
Depth Of Field	1.2 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.06
Filter Thread	No Filter Threads
Front Diameter	44 mm
Image Circle Diameter	28 mm
Imager Format	APS-C
Lens Type	Telecentric
Line 4k-7µm	32.29 mm
Magnification	0.888×
Mount	M42-Mount
Resolution (Pixel Size)	8 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.07°
Working Distance	67.2 mm
Working ƒ/N	f/11
