Home / Lenses / Telecentric lenses / 0.238× telecentric lens, APS-C, F-Mount

0.238× telecentric lens, APS-C, F-Mount (LS-TCL-0124)

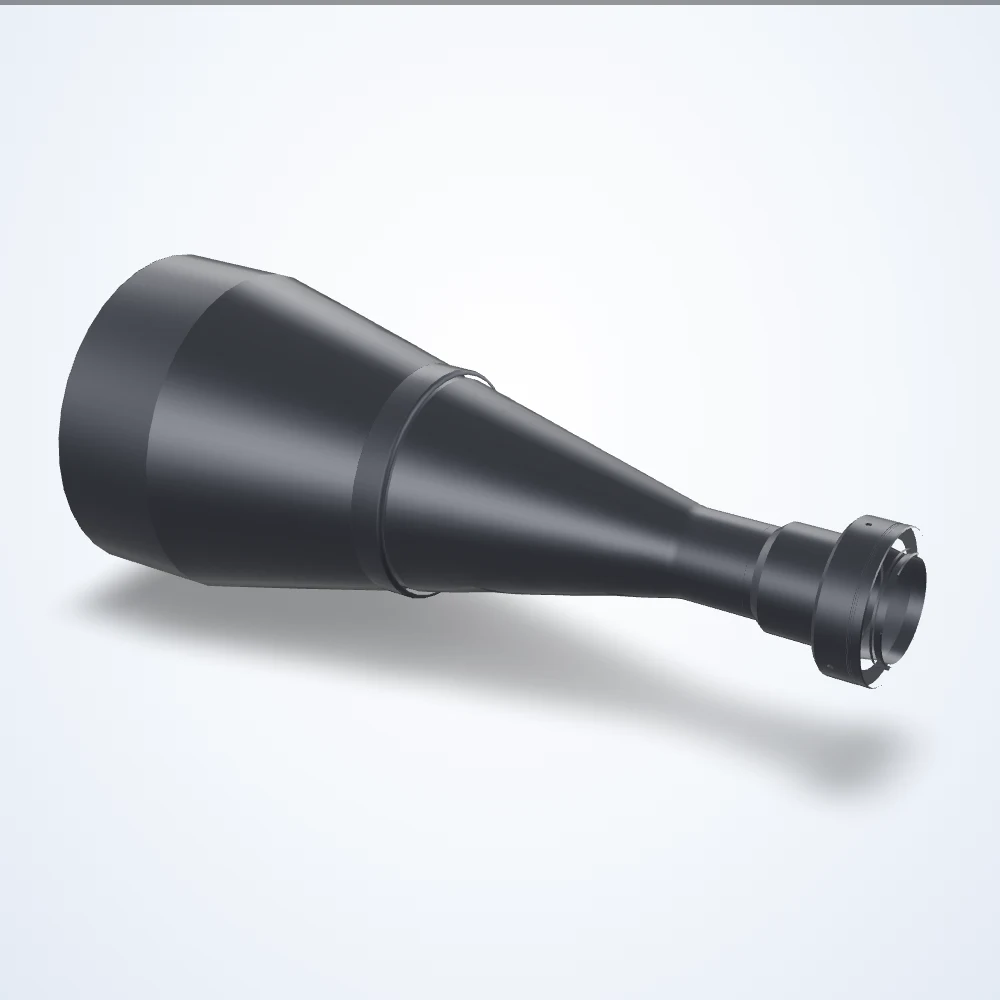

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.238× telecentric lens, APS-C, F-Mount (LS-TCL-0124)

Model LS-TCL-0124

0.238× telecentric lens, APS-C, F-Mount. Working distance 278.6 mm. Depth of field 11.7 mm.

Datasheet (PDF) - LS-TCL-0124 3D model (STEP) - LS-TCL-0124

Specifications

Model	LS-TCL-0124
APS-C IMX342	93.95 x 70.46 mm
Depth Of Field	11.7 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.07
Filter Thread	No Filter Threads
Front Diameter	143 mm
Image Circle Diameter	28 mm
Imager Format	APS-C
Lens Type	Telecentric
Line 4k-7µm	120.46 mm
Magnification	0.238×
Mount	F-Mount
Resolution (Pixel Size)	21 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.05°
Working Distance	278.6 mm
Working ƒ/N	f/8
