Machine vision lenses · 40 models · from $179.00

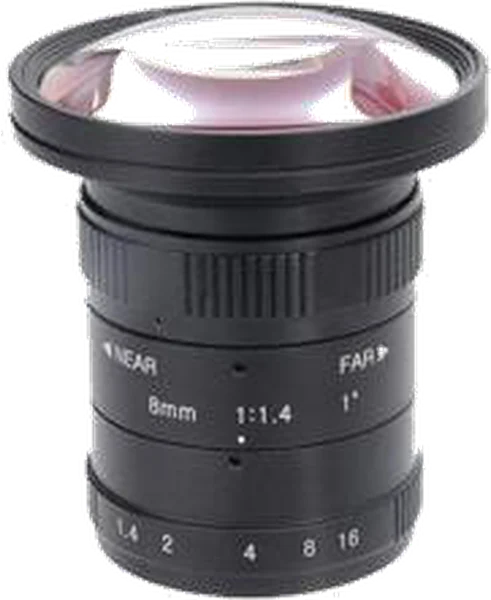

1" machine vision lenses
The 1" machine vision lenses is a range of 40 machine vision lenses from LumaSpec Vision, from $179.00. It comes in 20 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 8 mm, 1", 10 MP, C-mount, 8 mm, 1", 5 MP, C-mount, 8.5 mm, 1", 10 MP, C-mount, 12 mm, 1", 10 MP, C-mount, 12 mm, 1", 5 MP, C-mount, 16 mm, 1", 10 MP, C-mount, 16 mm, 1", 12 MP, C-mount, 16 mm, 1", 5 MP, C-mount, 20 mm, 1", 5 MP, C-mount, 20 mm, 1", 8 MP, C-mount, 25 mm, 1", 10 MP, C-mount, 25 mm, 1", 5 MP, C-mount, 35 mm, 1", 10 MP, C-mount, 35 mm, 1", 5 MP, C-mount, 50 mm, 1", 10 MP, C-mount, 50 mm, 1", 12 MP, C-mount and 4 more |
|---|---|
| Type | Machine vision fixed |
| Mount | C-mount |
| Resolution | 5 MP, 6-10 MP, 12 MP |
| Image circle | 11-16 mm |
| Focal length | 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm, 100 mm + |
| Sensor format | 1" |
Features
- High resolution: 5.0 megapixel cover all 4K & 1080P
- Large format: 1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
- Big aperture: F1.4 big aperture makes imaging far better
- Low distortion: <1.5% low distortion use machine vision ITS
- High resolution: 5 megapixel, covers 4K and 1080P
- Large format: 1" image size, covers 1", 3/4", 2/3", 1/1.8" and 1/2" cameras
- Large F1.4 aperture for better imaging
- Low distortion: 1.8%, for machine vision and ITS
Typical uses
- Automation
- Machine vision
- Medical
- Life science
- ITS
- SMT
All 40 models in the 1" machine vision lenses
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-S1MV0814-5M | 8 mm, 1", 5 MP, C-mount | $179.00 | 3 in stock | View |
| LS-S1MV1214-5M | 12 mm, 1", 5 MP, C-mount | $189.00 | 4 in stock | View |
| LS-S1MV1214-5MC | 12 mm, 1", 5 MP, C-mount | $189.00 | 4 in stock | View |
| LS-S1MV1216G-5M | 12 mm, 1", 5 MP, C-mount | $189.00 | 4 in stock | View |
| LS-S1MV1614-5M | 16 mm, 1", 5 MP, C-mount | $189.00 | 5 in stock | View |
| LS-S1MV1614-5MC | 16 mm, 1", 5 MP, C-mount | $189.00 | 5 in stock | View |
| LS-S1MV1616G-5M | 16 mm, 1", 5 MP, C-mount | $189.00 | 3 in stock | View |
| LS-S1MV1620-5M | 16 mm, 1", 5 MP, C-mount | $189.00 | 4 in stock | View |
| LS-S1MV2016-8M | 20 mm, 1", 8 MP, C-mount | $199.00 | 2 in stock | View |
| LS-S1MV2016G-5M | 20 mm, 1", 5 MP, C-mount | $199.00 | 3 in stock | View |
| LS-S1MV2514-5M | 25 mm, 1", 5 MP, C-mount | $199.00 | 3 in stock | View |
| LS-S1MV2514-5MC | 25 mm, 1", 5 MP, C-mount | $199.00 | 3 in stock | View |
| LS-S1MV2516G-5M | 25 mm, 1", 5 MP, C-mount | $199.00 | 2 in stock | View |
| LS-S1MV3514-5MC | 35 mm, 1", 5 MP, C-mount | $219.00 | 2 in stock | View |
| LS-S1MV3516G-5M | 35 mm, 1", 5 MP, C-mount | $219.00 | 5 in stock | View |
| LS-S1MV3520-5M | 35 mm, 1", 5 MP, C-mount | $219.00 | 5 in stock | View |
| LS-S1MV5014-5MC | 50 mm, 1", 5 MP, C-mount | $239.00 | 3 in stock | View |
| LS-S1MV5020-5M | 50 mm, 1", 5 MP, C-mount | $239.00 | 5 in stock | View |
| LS-S1MV0814-10M | 8 mm, 1", 10 MP, C-mount | $269.00 | 2 in stock | View |
| LS-S1MV0818-10M | 8 mm, 1", 10 MP, C-mount | $269.00 | 3 in stock | View |
| LS-S1MV0824-10M | 8.5 mm, 1", 10 MP, C-mount | $269.00 | 2 in stock | View |
| LS-S1MV1220-10M | 12 mm, 1", 10 MP, C-mount | $269.00 | 3 in stock | View |
| LS-S1MV7518-5MC | 75 mm, 1", 5 MP, C-mount | $269.00 | 2 in stock | View |
| LS-S11MV1614-10M | 16 mm, 1", 10 MP, C-mount | $279.00 | 2 in stock | View |
| LS-S1MV1613-12M | 16 mm, 1", 12 MP, C-mount | $279.00 | 2 in stock | View |
| LS-S1MV1616-10M | 16 mm, 1", 10 MP, C-mount | $279.00 | 3 in stock | View |
| LS-S1MV1620-10M | 16 mm, 1", 10 MP, C-mount | $279.00 | 2 in stock | View |
| LS-S1MV2512-10M | 25 mm, 1", 10 MP, C-mount | $289.00 | 3 in stock | View |
| LS-S1MV2514-10M | 25 mm, 1", 10 MP, C-mount | $289.00 | 4 in stock | View |
| LS-S1MV2518-10M | 25 mm, 1", 10 MP, C-mount | $289.00 | 5 in stock | View |
| LS-S1MV10035-8M | 100 mm, 1", 8 MP, C-mount | $299.00 | 4 in stock | View |
| LS-S1MV3512-10M | 35 mm, 1", 10 MP, C-mount | $299.00 | 3 in stock | View |
| LS-S1MV3514-10M | 35 mm, 1", 10 MP, C-mount | $299.00 | 5 in stock | View |
| LS-S1MV3520-10M | 35 mm, 1", 10 MP, C-mount | $299.00 | 3 in stock | View |
| LS-S1MV5013-12M | 50 mm, 1", 12 MP, C-mount | $319.00 | 3 in stock | View |
| LS-S1MV5014-12M | 50 mm, 1", 12 MP, C-mount | $319.00 | 2 in stock | View |
| LS-S1MV5020-10M | 50 mm, 1", 10 MP, C-mount | $319.00 | 4 in stock | View |
| LS-S1MV5024-10M | 50 mm, 1", 10 MP, C-mount | $319.00 | 4 in stock | View |
| LS-S1MV7518-10M | 75 mm, 1", 10 MP, C-mount | $359.00 | 4 in stock | View |
| LS-S1MV7528-10M | 75 mm, 1", 10 MP, C-mount | $359.00 | 5 in stock | View |
