Machine vision lenses

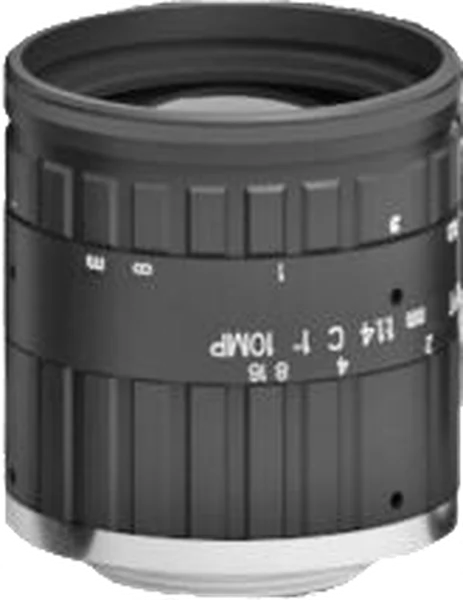

50 mm, 1", 10 MP, C-mount Machine Vision Lens (LS-S1MV5024-10M)
Model LS-S1MV5024-10M
50 mm, 1", 10 MP, C-mount Machine Vision Lens. 1" format, 10 megapixel C-mount FA machine vision lenses with manual iris, 35 to 75 mm, rated for 1" and 2/3" sensors. At a glance: focal length 50 mm; format 1"; resolution 10 Megapixel; aperture F2.4 Manual iris; mount C.
Specifications
| Model | LS-S1MV5024-10M |
|---|---|
| Mount | C |
| Format | 1" |
| Resolution | 10 Megapixel |
| Focal length | 50 mm |
| Aperture | F2.4 Manual iris |
| Angle of view (1", DxHxV) | 19.5 x 15.6 x 11.8 deg |
| Angle of view (2/3", DxHxV) | 12.2 x 10 x 7.6 deg |
| M.O.D. | 0.55 m |
| Distortion | <0.1% |
| Filter thread | M37.5 x P0.5 |
| Size | dia. 40 x 49.1 mm |
| Weight | 130 g |
| Shipping weight (estimated) | 0.28 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the 1" machine vision lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-S1MV3520-5M | 35 mm, 1", 5 MP, C-mount | $219.00 | 5 in stock | View |
| LS-S1MV5014-5MC | 50 mm, 1", 5 MP, C-mount | $239.00 | 3 in stock | View |
| LS-S1MV5020-5M | 50 mm, 1", 5 MP, C-mount | $239.00 | 5 in stock | View |
| LS-S1MV0814-10M | 8 mm, 1", 10 MP, C-mount | $269.00 | 2 in stock | View |
| LS-S1MV0818-10M | 8 mm, 1", 10 MP, C-mount | $269.00 | 3 in stock | View |
| LS-S1MV0824-10M | 8.5 mm, 1", 10 MP, C-mount | $269.00 | 2 in stock | View |
| LS-S1MV1220-10M | 12 mm, 1", 10 MP, C-mount | $269.00 | 3 in stock | View |
| LS-S1MV7518-5MC | 75 mm, 1", 5 MP, C-mount | $269.00 | 2 in stock | View |
| LS-S11MV1614-10M | 16 mm, 1", 10 MP, C-mount | $279.00 | 2 in stock | View |
| LS-S1MV1613-12M | 16 mm, 1", 12 MP, C-mount | $279.00 | 2 in stock | View |
| LS-S1MV1616-10M | 16 mm, 1", 10 MP, C-mount | $279.00 | 3 in stock | View |
| LS-S1MV1620-10M | 16 mm, 1", 10 MP, C-mount | $279.00 | 2 in stock | View |
| LS-S1MV2512-10M | 25 mm, 1", 10 MP, C-mount | $289.00 | 3 in stock | View |
| LS-S1MV2514-10M | 25 mm, 1", 10 MP, C-mount | $289.00 | 4 in stock | View |
| LS-S1MV2518-10M | 25 mm, 1", 10 MP, C-mount | $289.00 | 5 in stock | View |
| LS-S1MV10035-8M | 100 mm, 1", 8 MP, C-mount | $299.00 | 4 in stock | View |
| LS-S1MV3512-10M | 35 mm, 1", 10 MP, C-mount | $299.00 | 3 in stock | View |
| LS-S1MV3514-10M | 35 mm, 1", 10 MP, C-mount | $299.00 | 5 in stock | View |
| LS-S1MV3520-10M | 35 mm, 1", 10 MP, C-mount | $299.00 | 3 in stock | View |
| LS-S1MV5013-12M | 50 mm, 1", 12 MP, C-mount | $319.00 | 3 in stock | View |
| LS-S1MV5014-12M | 50 mm, 1", 12 MP, C-mount | $319.00 | 2 in stock | View |
| LS-S1MV5020-10M | 50 mm, 1", 10 MP, C-mount | $319.00 | 4 in stock | View |
| LS-S1MV7518-10M | 75 mm, 1", 10 MP, C-mount | $359.00 | 4 in stock | View |
| LS-S1MV7528-10M | 75 mm, 1", 10 MP, C-mount | $359.00 | 5 in stock | View |
