Machine vision lenses
50 mm, 1", 12 MP, C-mount Machine Vision Lens (LS-S1MV5014-12M)
Model LS-S1MV5014-12M
50 mm, 1", 12 MP, C-mount Machine Vision Lens. 1" 12-megapixel FA machine vision lens, 50 mm, F1.4 manual iris, C-mount. At a glance: focal length 50 mm; format 1"; resolution 12 Megapixel; aperture F1.4-C Manual iris; mount C.
Specifications
| Model | LS-S1MV5014-12M |
|---|---|
| Resolution | 12 Megapixel |
| Format | 1" |
| Focal length | 50 mm |
| Aperture | F1.4-C Manual iris |
| Angle of view (1") | 55 x 44 x 33.5 deg |
| M.O.D. | 0.3 m |
| Distortion | <3% |
| Size | dia. 55 x 66.2 mm |
| Mount | C |
| Weight | 280 g |
| Shipping weight (estimated) | 0.49 kg |

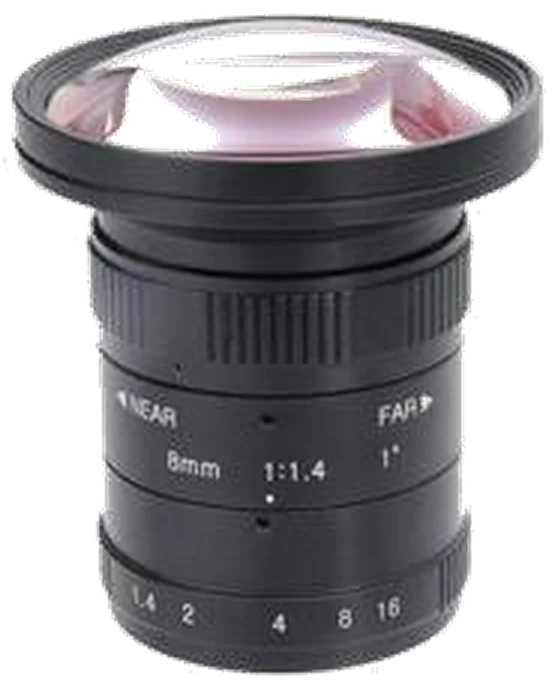

Photo shows a representative model of this series; see the specifications for this model.
Applications
- Electronics
- SMT / AOI
- Automation
- Life science
- Police / public security
- ITS (intelligent transport)
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the 1" machine vision lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-S1MV3520-5M | 35 mm, 1", 5 MP, C-mount | $219.00 | 5 in stock | View |
| LS-S1MV5014-5MC | 50 mm, 1", 5 MP, C-mount | $239.00 | 3 in stock | View |
| LS-S1MV5020-5M | 50 mm, 1", 5 MP, C-mount | $239.00 | 5 in stock | View |
| LS-S1MV0814-10M | 8 mm, 1", 10 MP, C-mount | $269.00 | 2 in stock | View |
| LS-S1MV0818-10M | 8 mm, 1", 10 MP, C-mount | $269.00 | 3 in stock | View |
| LS-S1MV0824-10M | 8.5 mm, 1", 10 MP, C-mount | $269.00 | 2 in stock | View |
| LS-S1MV1220-10M | 12 mm, 1", 10 MP, C-mount | $269.00 | 3 in stock | View |
| LS-S1MV7518-5MC | 75 mm, 1", 5 MP, C-mount | $269.00 | 2 in stock | View |
| LS-S11MV1614-10M | 16 mm, 1", 10 MP, C-mount | $279.00 | 2 in stock | View |
| LS-S1MV1613-12M | 16 mm, 1", 12 MP, C-mount | $279.00 | 2 in stock | View |
| LS-S1MV1616-10M | 16 mm, 1", 10 MP, C-mount | $279.00 | 3 in stock | View |
| LS-S1MV1620-10M | 16 mm, 1", 10 MP, C-mount | $279.00 | 2 in stock | View |
| LS-S1MV2512-10M | 25 mm, 1", 10 MP, C-mount | $289.00 | 3 in stock | View |
| LS-S1MV2514-10M | 25 mm, 1", 10 MP, C-mount | $289.00 | 4 in stock | View |
| LS-S1MV2518-10M | 25 mm, 1", 10 MP, C-mount | $289.00 | 5 in stock | View |
| LS-S1MV10035-8M | 100 mm, 1", 8 MP, C-mount | $299.00 | 4 in stock | View |
| LS-S1MV3512-10M | 35 mm, 1", 10 MP, C-mount | $299.00 | 3 in stock | View |
| LS-S1MV3514-10M | 35 mm, 1", 10 MP, C-mount | $299.00 | 5 in stock | View |
| LS-S1MV3520-10M | 35 mm, 1", 10 MP, C-mount | $299.00 | 3 in stock | View |
| LS-S1MV5013-12M | 50 mm, 1", 12 MP, C-mount | $319.00 | 3 in stock | View |
| LS-S1MV5020-10M | 50 mm, 1", 10 MP, C-mount | $319.00 | 4 in stock | View |
| LS-S1MV5024-10M | 50 mm, 1", 10 MP, C-mount | $319.00 | 4 in stock | View |
| LS-S1MV7518-10M | 75 mm, 1", 10 MP, C-mount | $359.00 | 4 in stock | View |
| LS-S1MV7528-10M | 75 mm, 1", 10 MP, C-mount | $359.00 | 5 in stock | View |
