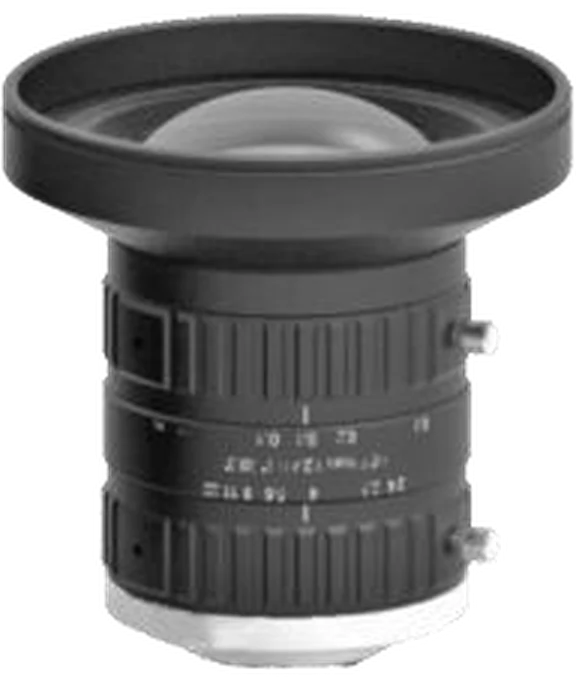

8.5 mm, 1", 10 MP, C-mount Machine Vision Lens (LS-S1MV0824-10M)

Machine vision lenses

8.5 mm, 1", 10 MP, C-mount Machine Vision Lens (LS-S1MV0824-10M)

Model LS-S1MV0824-10M

8.5 mm, 1", 10 MP, C-mount Machine Vision Lens. 1" 10-megapixel FA machine vision lens, 8.5 mm, F2.4 manual iris, C-mount. At a glance: focal length 8.5 mm; format 1"; resolution 10 Megapixel; aperture F2.4 Manual iris; mount C.

$269.00 USDIn stock · 2 available

Inventory updated Oct 15, 2026

0.48 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this lens → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-S1MV0824-10M

Specifications

ModelLS-S1MV0824-10M
Resolution10 Megapixel
Format1"
Focal length8.5 mm
ApertureF2.4 Manual iris
Angle of view (1")92 x 79.3 x 63.7 deg
Angle of view (2/3")66 x 54.7 x 42.4 deg
M.O.D.0.1 m
Distortion<0.7%
Sizedia. 80 x 67.1 mm
Filter threadM77 x P0.75
MountC
Weight270 g
Shipping weight (estimated)0.48 kg

Applications

  • Electronics
  • SMT / AOI
  • Automation
  • Life science
  • Police / public security
  • ITS (intelligent transport)
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the 1" machine vision lenses series

ModelSizePriceAvailability
LS-S1MV2016-8M20 mm, 1", 8 MP, C-mount $199.00 2 in stockView
LS-S1MV2016G-5M20 mm, 1", 5 MP, C-mount $199.00 3 in stockView
LS-S1MV2514-5M25 mm, 1", 5 MP, C-mount $199.00 3 in stockView
LS-S1MV2514-5MC25 mm, 1", 5 MP, C-mount $199.00 3 in stockView
LS-S1MV2516G-5M25 mm, 1", 5 MP, C-mount $199.00 2 in stockView
LS-S1MV3514-5MC35 mm, 1", 5 MP, C-mount $219.00 2 in stockView
LS-S1MV3516G-5M35 mm, 1", 5 MP, C-mount $219.00 5 in stockView
LS-S1MV3520-5M35 mm, 1", 5 MP, C-mount $219.00 5 in stockView
LS-S1MV5014-5MC50 mm, 1", 5 MP, C-mount $239.00 3 in stockView
LS-S1MV5020-5M50 mm, 1", 5 MP, C-mount $239.00 5 in stockView
LS-S1MV0814-10M8 mm, 1", 10 MP, C-mount $269.00 2 in stockView
LS-S1MV0818-10M8 mm, 1", 10 MP, C-mount $269.00 3 in stockView
LS-S1MV1220-10M12 mm, 1", 10 MP, C-mount $269.00 3 in stockView
LS-S1MV7518-5MC75 mm, 1", 5 MP, C-mount $269.00 2 in stockView
LS-S11MV1614-10M16 mm, 1", 10 MP, C-mount $279.00 2 in stockView
LS-S1MV1613-12M16 mm, 1", 12 MP, C-mount $279.00 2 in stockView
LS-S1MV1616-10M16 mm, 1", 10 MP, C-mount $279.00 3 in stockView
LS-S1MV1620-10M16 mm, 1", 10 MP, C-mount $279.00 2 in stockView
LS-S1MV2512-10M25 mm, 1", 10 MP, C-mount $289.00 3 in stockView
LS-S1MV2514-10M25 mm, 1", 10 MP, C-mount $289.00 4 in stockView
LS-S1MV2518-10M25 mm, 1", 10 MP, C-mount $289.00 5 in stockView
LS-S1MV10035-8M100 mm, 1", 8 MP, C-mount $299.00 4 in stockView
LS-S1MV3512-10M35 mm, 1", 10 MP, C-mount $299.00 3 in stockView
LS-S1MV3514-10M35 mm, 1", 10 MP, C-mount $299.00 5 in stockView

See all 40 models in the 1" machine vision lenses series
