Machine vision lenses · 6 models · from $189.00

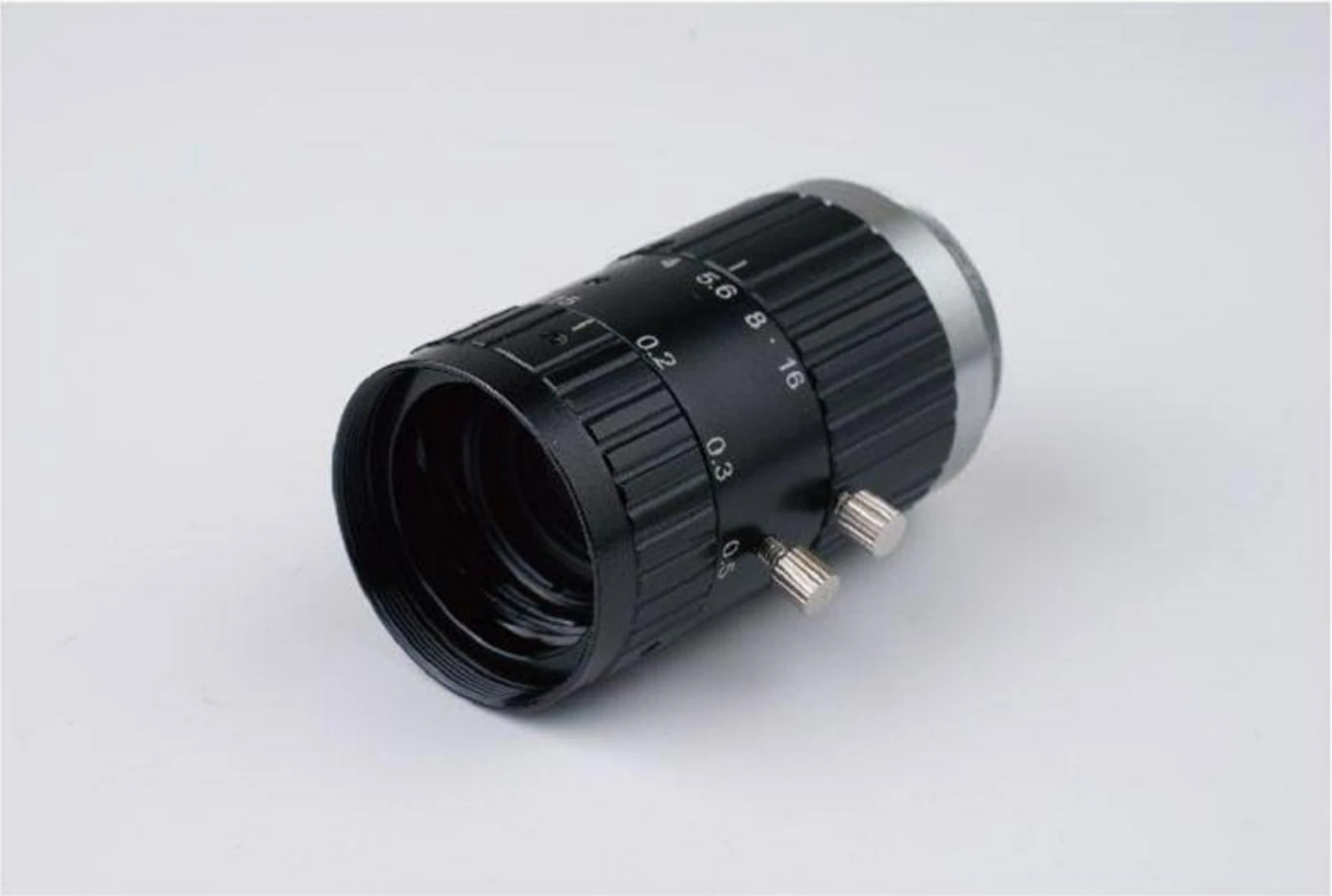

Fixed lens for FA, 2/3" 10MP
The Fixed lens for FA, 2/3" 10MP is a range of 6 machine vision lenses from LumaSpec Vision, from $189.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 8 mm, 2/3", C-Mount, 12 mm, 2/3", C-Mount, 16 mm, 2/3", C-Mount, 25 mm, 2/3", C-Mount, 35 mm, 2/3", C-Mount, 50 mm, 2/3", C-Mount |
|---|---|
| Mount | C-mount |
| Resolution | 6-10 MP |
| Image circle | Up to 8 mm |
| Focal length | 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm |
| Sensor format | 2/3" |
Features
- Ultra-high imaging quality
- Suitable for 2.4µ sensor, resolution up to 10MP
- High relative illumination, with big aperture
- Focus range from 0.1 m to infinity
- Small size, ultra-compact design
Typical uses
- Electronic component: yes or no / identify - check the presence of IC in the carrier band
- Electronic equipment: blemish / stain - check the appearance of the battery outer tank
- Electronic component: position / tilt - detect the defective conductor of the capacitor
- Liquid crystal, semiconductor: position / tilt - positioning of the glass circuit board
All 6 models in the Fixed lens for FA, 2/3" 10MP
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-FA0810A | 8 mm, 2/3", C-Mount | $189.00 | 3 in stock | View |
| LS-FA1210A | 12 mm, 2/3", C-Mount | $199.00 | 5 in stock | View |
| LS-FA1610A | 16 mm, 2/3", C-Mount | $199.00 | 3 in stock | View |
| LS-FA2510A | 25 mm, 2/3", C-Mount | $209.00 | 5 in stock | View |
| LS-FA3510A | 35 mm, 2/3", C-Mount | $229.00 | 5 in stock | View |
| LS-FA5010A | 50 mm, 2/3", C-Mount | $249.00 | 5 in stock | View |
