Machine vision lenses · 6 models · from $629.00

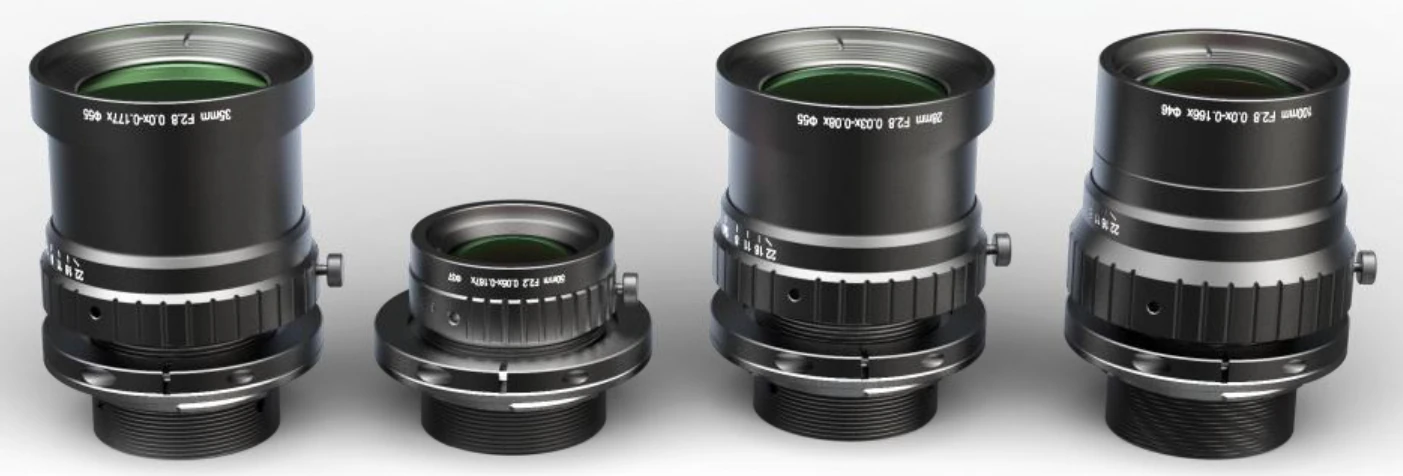

F mount 29 MP full frame lens
The F mount 29 MP full frame lens is a range of 6 machine vision lenses from LumaSpec Vision, from $629.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 28 mm, M58 / F-mount, 35 mm, M58 / F-mount, 50 mm, M58 / F-mount, 60 mm, M58 / F-mount, 80 mm, M58 / F-mount, 100 mm, M58 / F-mount |
|---|---|
| Mount | M58 |
| Image circle | 30-45 mm |
| Focal length | 25-50 mm, 50-100 mm, 100 mm + |
| Sensor format | APS-H / Full frame |
Features
- Compact design
- Full frame design, image sensor cover dia. 43.2mm
- Adjustable flange distance, F mount, thread design
- Support 5.5um pixel, 29 million high resolution line scan camera
- Full frame design, image sensor cover φ43.2mm
- Support 5.5μm pixel, 29 million high resolution line scan camera
Typical uses
- Cellphone screen inspection
- LCD screen inspection
- Glass cover-plate inspection
- Printing inspection
- Photovoltaic inspection
- OLED
All 6 models in the F mount 29 MP full frame lens
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-2828M | 28 mm, M58 / F-mount | $629.00 | 3 in stock | View |
| LS-3528M | 35 mm, M58 / F-mount | $679.00 | 3 in stock | View |
| LS-5022M | 50 mm, M58 / F-mount | $779.00 | 3 in stock | View |
| LS-6040M | 60 mm, M58 / F-mount | $839.00 | 2 in stock | View |
| LS-8056M | 80 mm, M58 / F-mount | $969.00 | 4 in stock | View |
| LS-10028M | 100 mm, M58 / F-mount | $1,099.00 | 4 in stock | View |
