Machine vision lenses · 9 models · from $99.00

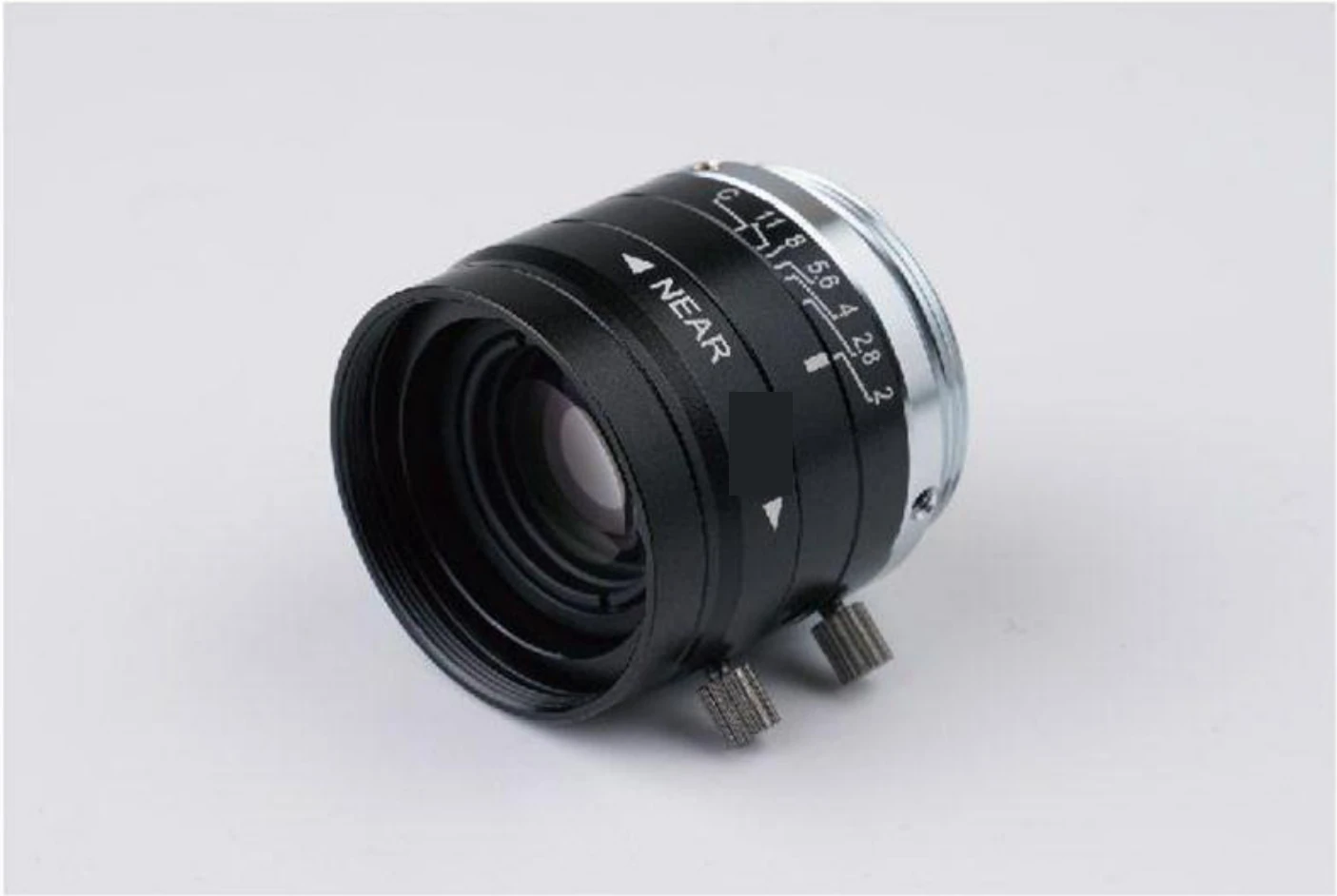

1/1.8" 5MP FA lens
The 1/1.8" 5MP FA lens is a range of 9 machine vision lenses from LumaSpec Vision, from $99.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 4 mm, 1/1.8", C-mount, 6 mm, 1/1.8", C-mount, 8 mm, 1/1.8", C-mount, 12 mm, 1/1.8", C-mount, 16 mm, 1/1.8", C-mount, 25 mm, 1/1.8", C-mount, 35 mm, 1/1.8", C-mount, 50 mm, 1/1.8", C-mount, 75 mm, 1/1.8", C-mount |
|---|---|
| Mount | C-mount |
| Resolution | 5 MP |
| Image circle | 8-11 mm |
| Focal length | Under 6 mm, 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm |
| Sensor format | 1/1.8" - 1/1.56" |
Features
- 5MP, suitable for 2MP, 3MP, 5MP cameras
- Aperture manually adjustable, fixed aperture optional
- TV distortion < 0.1%
- Complete EFL range, from 4 mm to 75 mm
- Small size, ultra-compact design
- High contrast industrial FA lens
Typical uses
- Automobile: yes or no / identify - identify the type of safety belt harness
- Container: blemish / stain - check the appearance of the bottle cap
- Electronic equipment: yes or no / identify - check the bundling of motor wires, bad and broken leads
- Food: recognition - barcode reading of the package
All 9 models in the 1/1.8" 5MP FA lens
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-FA0401C | 4 mm, 1/1.8", C-mount | $99.00 | 5 in stock | View |
| LS-FA0601C | 6 mm, 1/1.8", C-mount | $99.00 | 4 in stock | View |
| LS-FA0801C | 8 mm, 1/1.8", C-mount | $99.00 | 5 in stock | View |
| LS-FA1201C | 12 mm, 1/1.8", C-mount | $109.00 | 3 in stock | View |
| LS-FA1601C | 16 mm, 1/1.8", C-mount | $109.00 | 2 in stock | View |
| LS-FA2501C | 25 mm, 1/1.8", C-mount | $129.00 | 5 in stock | View |
| LS-FA3501C | 35 mm, 1/1.8", C-mount | $139.00 | 3 in stock | View |
| LS-FA5001C | 50 mm, 1/1.8", C-mount | $159.00 | 3 in stock | View |
| LS-FA7501C | 75 mm, 1/1.8", C-mount | $189.00 | 4 in stock | View |
