Home / Lenses / Machine vision lenses / Motorized-Focus lenses

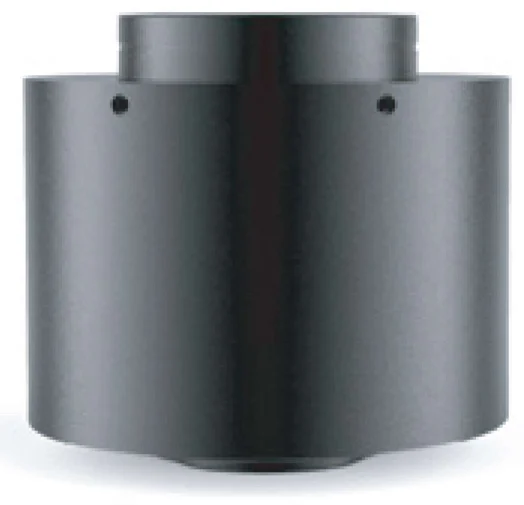

Motorized-Focus lenses

Machine vision lenses · 9 models · from $659.00

Motorized-Focus lenses

The Motorized-Focus lenses is a range of 9 machine vision lenses from LumaSpec Vision, from $659.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Series datasheet (PDF)

Building a full system? Configure a camera, lens, light and controller that fit together →

The series at a glance

Sizes / versions9 mm, 2/3", 5 MP, C-mount, 12 mm, 2/3", 5 MP, C-mount, 16 mm, 2/3", 10 MP, C-mount, 21 mm, 1.2", 25 MP, C-mount, 25 mm, 2/3", 10 MP, C-mount, 35 mm, 1.2", 25 MP, C-mount
TypeMotorized focus
MountC-mount
Resolution5 MP, 6-10 MP, 16-25 MP
Image circleUp to 8 mm, 11-16 mm, 16-22 mm
Focal lengthUnder 6 mm, 6-12 mm, 12-25 mm, 25-50 mm
Sensor format2/3", 1.1" - 1.2"

Features

  • Quick: one command or key press completes autofocus
  • Accurate: consistent focus every time
  • Easy: no training or experience needed
  • Flexible: refocus with one key when working distance or object changes; alert function
  • Random & multi-inspection: mixed, real-time and mobile inspection
  • Compatible & extended: mainstream cameras and servo drivers, SDK for third-party systems
  • Remote control
  • Macro: short M.O.D. 80 mm

Typical uses

  • Industrial machine vision inspection
  • Automotive parts inspection (many sizes)
  • Medical production lines
  • Dust-free environments
  • Restricted production lines where manual on-site focusing is limited
  • Robot-arm inspection

All 9 models in the Motorized-Focus lenses

ModelSizePriceAvailabilityLink
LS-S12AF-RC2120-25M21 mm, 1.2", 25 MP, C-mount $659.00 3 in stockView
LS-S12AF-RC3524-25M35 mm, 1.2", 25 MP, C-mount $659.00 2 in stockView
LS-SAF-RC0920-5M9 mm, 2/3", 5 MP, C-mount $659.00 5 in stockView
LS-SAF-RC1218-5M12 mm, 2/3", 5 MP, C-mount $659.00 5 in stockView
LS-SAF-RC1620-10M16 mm, 2/3", 10 MP, C-mount $659.00 2 in stockView
LS-SAF-RC2520-10M25 mm, 2/3", 10 MP, C-mount $659.00 5 in stockView
LS-SMZ-MV1620-10M16 mm, 2/3", 10 MP, C-mount $659.00 3 in stockView
LS-SMZ-MV2520-10M25 mm, 2/3", 10 MP, C-mount $659.00 5 in stockView
LS-SRC-MF2520M-10M25 mm, 2/3", 10 MP, C-mount $659.00 3 in stockView
