Machine vision lenses

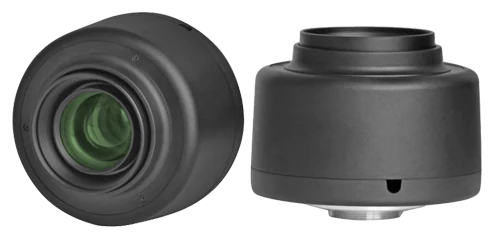

35 mm, 1.2", 25 MP, C-mount Motorized-Focus Lens (LS-S12AF-RC3524-25M)
Model LS-S12AF-RC3524-25M
35 mm, 1.2", 25 MP, C-mount Motorized-Focus Lens. 35 mm 1.2" 25 megapixel macro machine vision lens with motorized focus and iris and remote autofocus driven by the IPRAS (Intelligent Passive Random Autofocus System) algorithm; minimum object distance 80 mm, accurate autofocus within 7 s or speed mode within 2 s, 255 focus presets. For production lines where manual on-site focusing is impractical. At a glance: magnification by wd 80 mm : 0.4141; 90: 0.3722; 100: 0.3383; 150: 0.2276; 200: 0.1729; 250: 0.1389; 300: 0.1163; 350: 0.1002; 400: 0.0878; 450: 0.0773; 500: 0.0705; 550: 0.0637; 600: 0.0589; 700: 0.0495; 800: 0.0434; 900: 0.0391; 1000: 0.0348; focal length 35 mm; format 1.2" (dia. 19.3); resolution 25 MP; aperture range F2.4-16.
Features
- Macro: short M.O.D. 80 mm
- IPRAS algorithm drives remote autofocus without on-site adjustment
- Speed: accurate mode within 7 s, speed mode within 2 s
- Option: auto-run of 255 motorized-focus presets, recall within 0.1 s
- Speed: accurate mode 3-7 s, speed mode 2 s
- Option: 255 preset motorized focus positions, recall within 0.1 s
Specifications
| Model | LS-S12AF-RC3524-25M |
|---|---|
| Focal length | 35 mm |
| Format | 1.2" (dia. 19.3) |
| Resolution | 25 MP |
| Mount | C |
| Aperture range | F2.4-16 |
| Focus range | 80 mm |
| Iris control | Motorized |
| Focus control | Motorized (auto-focus) |
| Angle of view (1.2", DxHxV) | 29.8 x 24 x 18.5 deg |
| Angle of view (1", DxHxV) | 24 x 20 x 14.8 deg |
| Angle of view (2/3", DxHxV) | 17.1 x 13.6 x 10.2 deg |
| Distortion | 0.06% |
| Relative illumination | 80% |
| Back focal length (mechanical) | 12.67 mm |
| Filter size | M46 x 0.75 |
| Control interface | USB |
| Operating temperature | 20 ~ +70 °C |
| Weight | 327 g |
| Size | dia. 82 x 65 mm |
| Autofocus speed | Accurate mode within 7 s, speed mode within 2 s |
| Presets | 255 motorized-focus preset positions, recall within 0.1 s |
| Magnification by WD (mm) | 80: 0.4141; 90: 0.3722; 100: 0.3383; 150: 0.2276; 200: 0.1729; 250: 0.1389; 300: 0.1163; 350: 0.1002; 400: 0.0878; 450: 0.0773; 500: 0.0705; 550: 0.0637; 600: 0.0589; 700: 0.0495; 800: 0.0434; 900: 0.0391; 1000: 0.0348 |
| Aperture | F2.4-16 |
| M.B.L. | 12.67 mm |
| Working temperature | 20 to +70 C |
| Magnification | 0.4141x at 80 mm to 0.0348x at 1000 mm WD |
| Shipping weight (estimated) | 0.56 kg |
Applications
- Automotive parts inspection (many sizes)
- Medical production lines
- Dust-free environments
- Restricted production lines where manual on-site focusing is limited
- Robot-arm inspection
- Automotive parts of various sizes
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
