Home / Lenses / Machine vision lenses / Machine Vision Zoom lenses

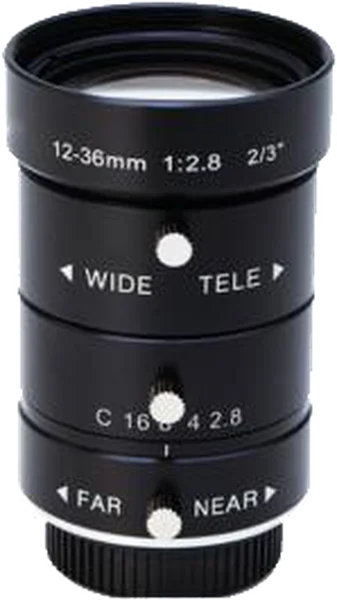

Machine Vision Zoom lenses

Machine vision lenses · 8 models · from $329.00

Machine Vision Zoom lenses

The Machine Vision Zoom lenses is a range of 8 machine vision lenses from LumaSpec Vision, from $329.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Series datasheet (PDF)

Building a full system? Configure a camera, lens, light and controller that fit together →

The series at a glance

Sizes / versions6-12 mm, 1/1.8", 3 MP, C-mount, 7-36 mm, 1/1.8", 6 MP, C-mount, 10-50 mm, 1/1.8", 6 MP, C-mount, 10-55 mm, 1/1.7", 10 MP, C-mount, 12-36 mm, 2/3", 3 MP, C-mount, 12-36 mm, 2/3", 5 MP, C-mount, 12-36 mm, 2/3", 8 MP, C-mount, 16-35 mm, 2/3", 10 MP, C-mount
TypeMachine vision zoom
MountC-mount
ResolutionUp to 3 MP, 5 MP, 6-10 MP
Image circle8-11 mm
Focal lengthVarifocal / zoom
Sensor format1/1.8" - 1/1.56", 2/3"

Features

  • High resolution: 5.0 megapixel cover all 4K & 1080P
  • Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Big aperture: F1.4 big aperture makes imaging far better
  • Low distortion: <1% low distortion use machine vision ITS
  • High resolution: 8.0 megapixel cover all 4K & 1080P
  • Wide focal: 12-36mm focal length support variety working distance.
  • Low distortion: -3.4% ~0.3% low distortion
  • High resolution: 6.0 megapixel

Typical uses

  • Electronics
  • SMT / AOI
  • Automation
  • Life sciences
  • Public security
  • Intelligent transportation (ITS)

All 8 models in the Machine Vision Zoom lenses

ModelSizePriceAvailabilityLink
LS-SMV1236-3M12-36 mm, 2/3", 3 MP, C-mount $329.00 5 in stockView
LS-SMV1236-5M12-36 mm, 2/3", 5 MP, C-mount $329.00 4 in stockView
LS-SMV1236-8M12-36 mm, 2/3", 8 MP, C-mount $329.00 4 in stockView
LS-SVFA0736-6M7-36 mm, 1/1.8", 6 MP, C-mount $329.00 4 in stockView
LS-SVFA1050-6M10-50 mm, 1/1.8", 6 MP, C-mount $329.00 4 in stockView
LS-SVFA1055-10M10-55 mm, 1/1.7", 10 MP, C-mount $329.00 5 in stockView
LS-SVMV0612-3M6-12 mm, 1/1.8", 3 MP, C-mount $329.00 5 in stockView
LS-SVMV1635-10M16-35 mm, 2/3", 10 MP, C-mount $329.00 3 in stockView
