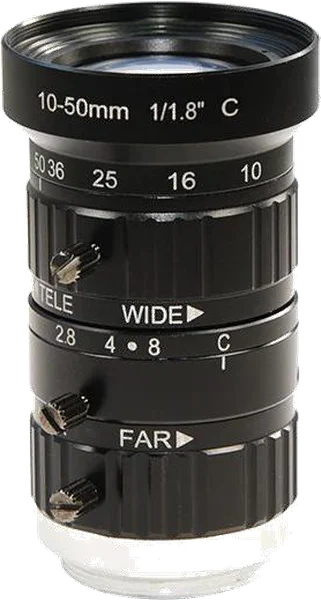

10-50 mm, 1/1.8", 6 MP, C-mount Machine Vision Zoom Lens (LS-SVFA1050-6M)
Model LS-SVFA1050-6M
10-50 mm, 1/1.8", 6 MP, C-mount Machine Vision Zoom Lens. Compact C-mount varifocal FA machine vision lenses for 1/1.7" and 1/1.8" sensors, 6 to 10 megapixel, F2.8 manual iris, 7-36 mm, 10-50 mm and 10-55 mm, from the section "1/1.7" Machine Vision FA Lens". At a glance: focal length 10-50 mm; format 1/1.8"; resolution 6 Megapixel; aperture F2.8 Manual iris; mount C.
Specifications
| Model | LS-SVFA1050-6M |
|---|---|
| Mount | C |
| Format | 1/1.8" |
| Resolution | 6 Megapixel |
| Focal length | 10-50 mm |
| Aperture | F2.8 Manual iris |
| Angle of view (1/1.8") | W: 37 x 25 deg; T: 9 x 6 deg |
| Angle of view (1/2") | W: 32 x 24 deg; T: 8 x 6 deg |
| Angle of view (1/2.8") | W: 24 x 18 deg; T: 6 x 5 deg |
| M.O.D. | 100 mm |
| Distortion (TV) | 1.3% ~ -0.08% |
| Filter thread | M35.5 x P0.5 |
| Size | dia. 37 x 61 mm |
| Weight | 110 g |
| Operating temperature | 20°~+60° |
| Shipping weight (estimated) | 0.25 kg |
Applications
- Electronics
- SMT / AOI
- Automation
- Life sciences
- Public security
- Intelligent transportation (ITS)
