Machine vision lenses · 4 models · from $659.00
Liquid-Lens Autofocus lenses

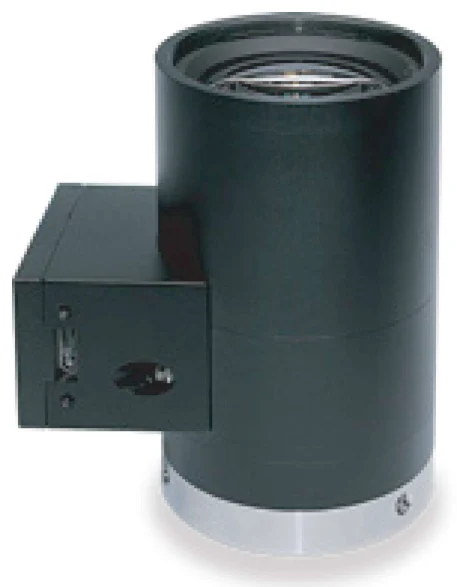

The Liquid-Lens Autofocus lenses is a range of 4 machine vision lenses from LumaSpec Vision, from $659.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 16 mm, 1.1", 10 MP, C-mount, 18 mm, 1.1", 10 MP, C-mount, 35 mm, 1.1", 10 MP, C-mount, 75 mm, 1.2", 10 MP, C-mount |
|---|---|
| Type | Liquid autofocus |
| Mount | C-mount |
| Resolution | 6-10 MP |
| Image circle | 16-22 mm |
| Focal length | 12-25 mm, 25-50 mm, 50-100 mm |
| Sensor format | 1.1" - 1.2" |
Features
- Super speed: autofocus in <0.8 s
- passive autofocus algorithm: no coding/decoding, no initial focus, fast focus on unknown-size incoming objects
- ROI (region of interest) focusing
- DOF combination: multiple depth-of-field images merged into one clear picture
- Compact, lower cost and larger FOV than ToF laser-assisted autofocus
- Real algorithm-based autofocus
- Quick: one command or key press completes autofocus
- Accurate: consistent focus every time
Typical uses
- Automotive parts of various sizes
- Medical production lines
- Dust-free environments
- Restricted production lines without manual focusing
- Industrial machine vision inspection
All 4 models in the Liquid-Lens Autofocus lenses
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-S11AF-L-1640-10M | 16 mm, 1.1", 10 MP, C-mount | $659.00 | 2 in stock | View |
| LS-S11AF-L-1856-10M | 18 mm, 1.1", 10 MP, C-mount | $659.00 | 2 in stock | View |
| LS-S11AF-L-3563-10M | 35 mm, 1.1", 10 MP, C-mount | $659.00 | 5 in stock | View |
| LS-S12AF-L-7587-10M | 75 mm, 1.2", 10 MP, C-mount | $659.00 | 2 in stock | View |
