75 mm, 1.2", 10 MP, C-mount Liquid-Lens Autofocus Lens (LS-S12AF-L-7587-10M)

Machine vision lenses

75 mm, 1.2", 10 MP, C-mount Liquid-Lens Autofocus Lens (LS-S12AF-L-7587-10M)

Model LS-S12AF-L-7587-10M

75 mm, 1.2", 10 MP, C-mount Liquid-Lens Autofocus Lens. Liquid-lens 75 mm autofocus lens for 1.2" sensors (10 MP) driven by the IPRAS intelligent passive random autofocus algorithm, focusing in under 0.8 s on objects of unknown size, with ROI focus and depth-of-field merging. At a glance: recommended working distance 200-500 mm; focal length 75 mm; resolution 0.3 > @75 lp/mm; aperture F8.7; mount C.

$659.00 USDIn stock · 2 available

Inventory updated Oct 14, 2026

0.52 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • Super speed: autofocus in <0.8 s
  • IPRAS algorithm: no coding/decoding, no initial focus, fast focus on unknown-size incoming objects
  • ROI (region of interest) focusing
  • DOF combination: multiple depth-of-field images merged into one clear picture
  • Compact, lower cost and larger FOV than ToF laser-assisted autofocus
  • Real algorithm-based autofocus

Specifications

ModelLS-S12AF-L-7587-10M
Wavelengthvisible
MountC
ConnectorMicro
Input voltage4.5-5.5 V
Input current<50 mA
Image sizedia. 19 mm
Focal length75 mm
Recommended working distance200-500 mm
Effective working distance250-400 mm
ApertureF8.7
Resolution0.3 > @75 lp/mm
Distortion<0.5%
Angle of view (1.2", DxHxV)14.5 x 10.8 x 9.3 deg
Angle of view (2/3", DxHxV)11.8 x 9.9 x 6.5 deg
Filter threadM34 x P0.5

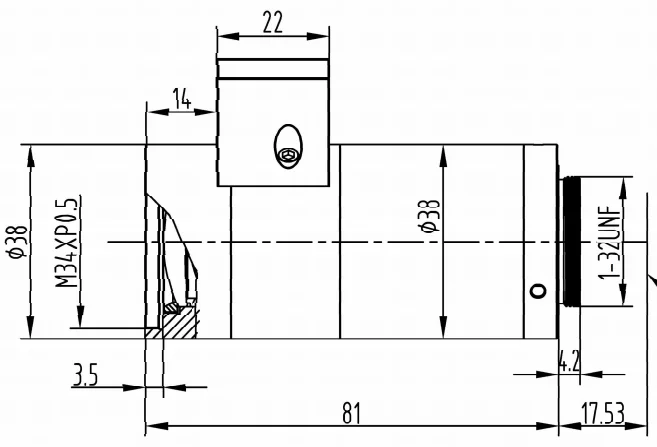

Sizedia. 38 x 81 mm
Autofocus time<0.8 s
Shipping weight (estimated)0.52 kg

Applications

  • Automotive parts of various sizes
  • Medical production lines
  • Dust-free environments
  • Restricted production lines without manual focusing
