Home / Lenses / Machine vision lenses / 1/1.8" machine vision lenses
1/1.8" machine vision lenses

Machine vision lenses · 13 models · from $99.00

1/1.8" machine vision lenses

The 1/1.8" machine vision lenses is a range of 13 machine vision lenses from LumaSpec Vision, from $99.00. It comes in 11 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Series datasheet (PDF)

Building a full system? Configure a camera, lens, light and controller that fit together →

The series at a glance

Sizes / versions3.5 mm, 1/1.8", 3 MP, C-mount, 4 mm, 1/1.8", 5 MP, C-mount, 6 mm, 1/1.8", 5 MP, C-mount, 8 mm, 1/1.8", 5 MP, C-mount, 12 mm, 1/1.8", 5 MP, C-mount, 16 mm, 1/1.8", 5 MP, C-mount, 25 mm, 1/1.8", 5 MP, C-mount, 35 mm, 1/1.8", 5 MP, C-mount, 35 mm, 1/1.8", 6 MP, C-mount, 50 mm, 1/1.8", 5 MP, C-mount, 75 mm, 1/1.8", 5 MP, C-mount
TypeMachine vision fixed
MountC-mount
ResolutionUp to 3 MP, 5 MP, 6-10 MP
Image circle8-11 mm
Focal lengthUnder 6 mm, 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
Sensor format1/1.8" - 1/1.56"

Features

  • High resolution: 5 megapixel, covers 5 MP, 3 MP and 1080P cameras
  • Large format: 1/1.8" image size, covers 1/1.8", 1/2" and 1/3" cameras
  • Small size: compact design fits most applications
  • Low distortion for machine vision and ITS
  • 3.0 megapixel
  • Large format 1/1.8" covering 1/1.8", 1/2", 1/3"
  • Small size fits most applications
  • Low distortion -1.23% for measurement and vision

Typical uses

  • Automation
  • Machine vision
  • Medical
  • Life science
  • ITS
  • SMT

All 13 models in the 1/1.8" machine vision lenses

ModelSizePriceAvailabilityLink

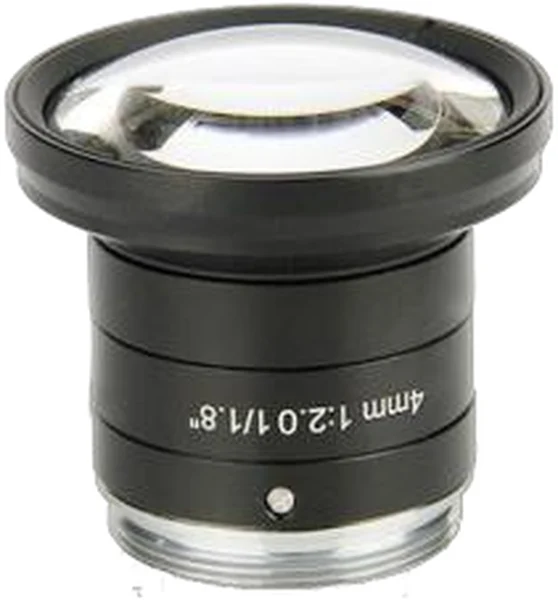

LS-SFA0420-5M4 mm, 1/1.8", 5 MP, C-mount $99.00 5 in stockView
LS-SFA0620-5M6 mm, 1/1.8", 5 MP, C-mount $99.00 2 in stockView
LS-SFA0820-5M8 mm, 1/1.8", 5 MP, C-mount $99.00 5 in stockView
LS-SFA0822-5M8 mm, 1/1.8", 5 MP, C-mount $99.00 4 in stockView
LS-SFA35H24-3M3.5 mm, 1/1.8", 3 MP, C-mount $99.00 3 in stockView
LS-SFA1220-5M12 mm, 1/1.8", 5 MP, C-mount $109.00 4 in stockView
LS-SFA1222-5M12 mm, 1/1.8", 5 MP, C-mount $109.00 4 in stockView
LS-SFA1620-5M16 mm, 1/1.8", 5 MP, C-mount $109.00 4 in stockView
LS-SFA2520-5M25 mm, 1/1.8", 5 MP, C-mount $129.00 5 in stockView
LS-SFA3520-5M35 mm, 1/1.8", 5 MP, C-mount $139.00 5 in stockView
LS-SFA3524-6M35 mm, 1/1.8", 6 MP, C-mount $139.00 2 in stockView
LS-SFA5028-5M50 mm, 1/1.8", 5 MP, C-mount $159.00 5 in stockView
LS-SFA7528-5M75 mm, 1/1.8", 5 MP, C-mount $189.00 4 in stockView
