Machine vision lenses

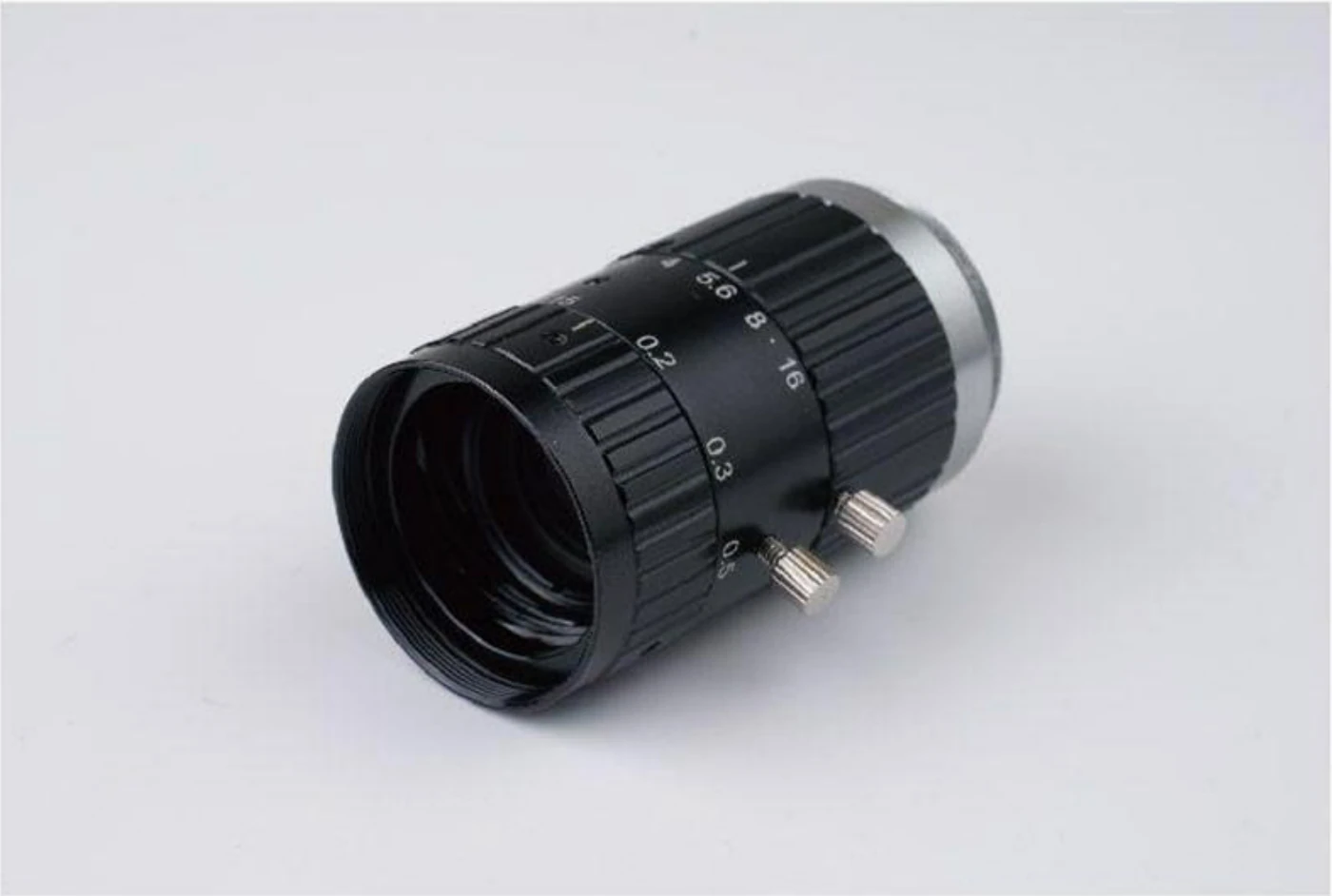

Fixed lens for FA, 2/3" 10MP, 12 mm, 2/3", C-Mount (LS-FA1210A)
Model LS-FA1210A
Ultra-high imaging quality fixed FA lenses for 2.4 µm pixel sensors, resolution up to 10MP, with high relative illumination and a big aperture in a small, ultra-compact design.
Features
- Ultra-high imaging quality
- Suitable for 2.4µ sensor, resolution up to 10MP
- High relative illumination, with big aperture
- Focus range from 0.1 m to infinity
- Small size, ultra-compact design
Specifications
| Model | LS-FA1210A |
|---|---|
| Focal length range | 8-50mm |
| F/NO | 2.8-16 |
| Mount | C-Mount |
| Distortion | <0.1% |
| Image size | 2/3" |
| Resolution | 10MP |
| EFL | 12mm |
| Image size (dia.) | 2/3" |
| Field of view angle 2/3" | 39.8° x 30.4° |
| Field of view angle 1/2" | 29.5° x 22.3° |
| Field of view angle 1/3" | 22.3° x 16.8° |
| Distortion (TV) 2/3" | <0.2% |
| MOD | 0.1m |
| Filter size | M27×P0.5 |
| Sensor format | 2/3" |
| Aperture | F2.8-16 |
| Shipping weight | 0.38 kg |
Applications
- Electronic component: yes or no / identify - check the presence of IC in the carrier band
- Electronic equipment: blemish / stain - check the appearance of the battery outer tank
- Electronic component: position / tilt - detect the defective conductor of the capacitor
- Liquid crystal, semiconductor: position / tilt - positioning of the glass circuit board
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Fixed lens for FA, 2/3" 10MP series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-FA0810A | 8 mm, 2/3", C-Mount | $79.00 | 3 in stock | View |
| LS-FA1610A | 16 mm, 2/3", C-Mount | $89.00 | 3 in stock | View |
| LS-FA2510A | 25 mm, 2/3", C-Mount | $99.00 | 5 in stock | View |
| LS-FA3510A | 35 mm, 2/3", C-Mount | $109.00 | 5 in stock | View |
| LS-FA5010A | 50 mm, 2/3", C-Mount | $129.00 | 5 in stock | View |
