Machine vision lenses

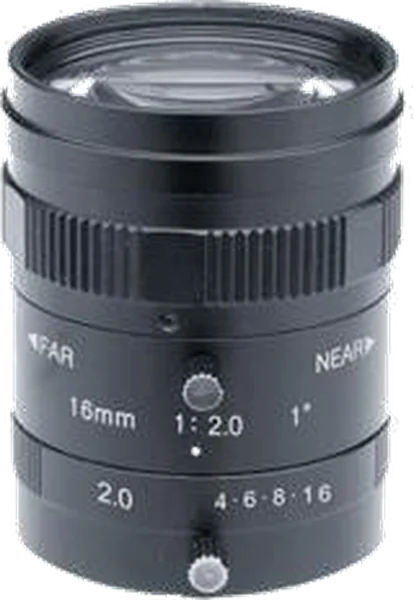

16 mm, 1", 5 MP, C-mount Machine Vision Lens (LS-S1MV1620-5M)
Model LS-S1MV1620-5M
16 mm, 1", 5 MP, C-mount Machine Vision Lens. 1" format, 5 megapixel C-mount FA machine vision lenses with manual iris, 8 to 50 mm. At a glance: focal length 16 mm; format 1"; resolution 5.0 Megapixel; aperture F2.0-C Manual iris; mount C.
Specifications
| Model | LS-S1MV1620-5M |
|---|---|
| Mount | C |
| Format | 1" |
| Resolution | 5.0 Megapixel |
| Focal length | 16 mm |
| Aperture | F2.0-C Manual iris |
| Angle of view (1") | 53 x 43 x 32.5 deg |
| M.O.D. | 0.2 m |
| Distortion | <1% |
| Size | dia. 41.5 x 55.65 mm |
| Weight | 180 g |
| Shipping weight (estimated) | 0.35 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the 1" machine vision lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-S1MV0814-5M | 8 mm, 1", 5 MP, C-mount | $179.00 | 3 in stock | View |
| LS-S1MV1214-5M | 12 mm, 1", 5 MP, C-mount | $189.00 | 4 in stock | View |
| LS-S1MV1214-5MC | 12 mm, 1", 5 MP, C-mount | $189.00 | 4 in stock | View |
| LS-S1MV1216G-5M | 12 mm, 1", 5 MP, C-mount | $189.00 | 4 in stock | View |
| LS-S1MV1614-5M | 16 mm, 1", 5 MP, C-mount | $189.00 | 5 in stock | View |
| LS-S1MV1614-5MC | 16 mm, 1", 5 MP, C-mount | $189.00 | 5 in stock | View |
| LS-S1MV1616G-5M | 16 mm, 1", 5 MP, C-mount | $189.00 | 3 in stock | View |
| LS-S1MV2016-8M | 20 mm, 1", 8 MP, C-mount | $199.00 | 2 in stock | View |
| LS-S1MV2016G-5M | 20 mm, 1", 5 MP, C-mount | $199.00 | 3 in stock | View |
| LS-S1MV2514-5M | 25 mm, 1", 5 MP, C-mount | $199.00 | 3 in stock | View |
| LS-S1MV2514-5MC | 25 mm, 1", 5 MP, C-mount | $199.00 | 3 in stock | View |
| LS-S1MV2516G-5M | 25 mm, 1", 5 MP, C-mount | $199.00 | 2 in stock | View |
| LS-S1MV3514-5MC | 35 mm, 1", 5 MP, C-mount | $219.00 | 2 in stock | View |
| LS-S1MV3516G-5M | 35 mm, 1", 5 MP, C-mount | $219.00 | 5 in stock | View |
| LS-S1MV3520-5M | 35 mm, 1", 5 MP, C-mount | $219.00 | 5 in stock | View |
| LS-S1MV5014-5MC | 50 mm, 1", 5 MP, C-mount | $239.00 | 3 in stock | View |
| LS-S1MV5020-5M | 50 mm, 1", 5 MP, C-mount | $239.00 | 5 in stock | View |
| LS-S1MV0814-10M | 8 mm, 1", 10 MP, C-mount | $269.00 | 2 in stock | View |
| LS-S1MV0818-10M | 8 mm, 1", 10 MP, C-mount | $269.00 | 3 in stock | View |
| LS-S1MV0824-10M | 8.5 mm, 1", 10 MP, C-mount | $269.00 | 2 in stock | View |
| LS-S1MV1220-10M | 12 mm, 1", 10 MP, C-mount | $269.00 | 3 in stock | View |
| LS-S1MV7518-5MC | 75 mm, 1", 5 MP, C-mount | $269.00 | 2 in stock | View |
| LS-S11MV1614-10M | 16 mm, 1", 10 MP, C-mount | $279.00 | 2 in stock | View |
| LS-S1MV1613-12M | 16 mm, 1", 12 MP, C-mount | $279.00 | 2 in stock | View |
