Shadowless lights

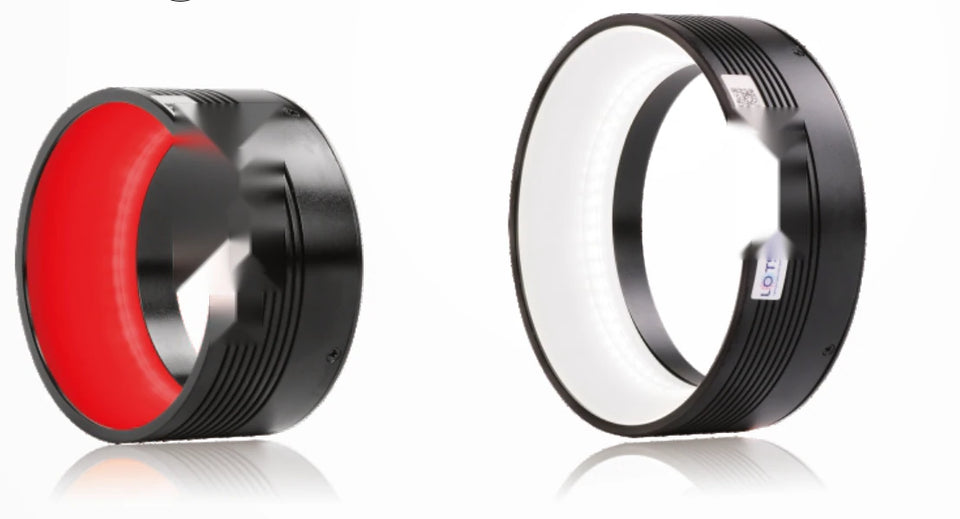

Low angle shadowless light (LS-SDL-S11)
- 11 models
- from $159.00
- Series LS-SDL-S11
The Low angle shadowless light (LS-SDL-S11) is a range of 11 shadowless lights from LumaSpec Vision, from $159.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 73 mm, 80 mm, 87 mm, 113 mm, 142 mm, 150 mm, 170 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Special emitting structure, uniform emission
- Efficient low-angle illumination, strengthens surface characteristics
- Highlights defect contrast
- Reduces reflected light and flare
- Wire jacket covers the cable exit, anti-pull
- Customizable: Outer & inner diameter, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
- Special emitting structure, emitting uniformly
Typical uses
- BGA/QFP position inspection
- Integrated circuit material strap inspection
- Connection lead pin pitch and excursion inspection
- Bottle cap crack inspection
- Imaging example: battery packing inspection (LS-SDL-0067-W), low-angle emission reduces metal reflection and shows the defect clearly
- BGA\QFP position inspection
All 11 models in the Low angle shadowless light (LS-SDL-S11)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SDL-0062 | 4.4W/5.4W | $159.00 | View | |||
| LS-SDL-0063 | 5.8W/7.2W | $199.00 | View | |||
| LS-SDL-0064 | 73 mm | 73 | R(red)/W(white) | 8.6W/11.5W | $209.00 | View |
| LS-SDL-0066 | 80 mm | 80 | R(red)/W(white) | 10.1W/11.6W | $229.00 | View |
| LS-SDL-0065 | 87 mm | 87 | R(red) | 8.7W/11.1W | $349.00 | View |
| LS-SDL-0068 | 28.8W/37.5W | $359.00 | View | |||
| LS-SDL-0067 | 113 mm | 113 | R(red)/W(white) | 11.6W/14.4W | $429.00 | View |
| LS-SDL-0069 | 142 mm | 142 | R(red)/W(white) | 31.7W/39.9W | $489.00 | View |
| LS-SDL-0070 | 150 mm | 150 | R(red)/W(white) | 15.9W/20.2W | $489.00 | View |
| LS-SDL-0071 | 170 mm | 170 | R(red)/W(white) | 18.8W/24.5W | $529.00 | View |
| LS-SDL-0072 | 24.5W/30.3W | $569.00 | View |
