Shadowless lights

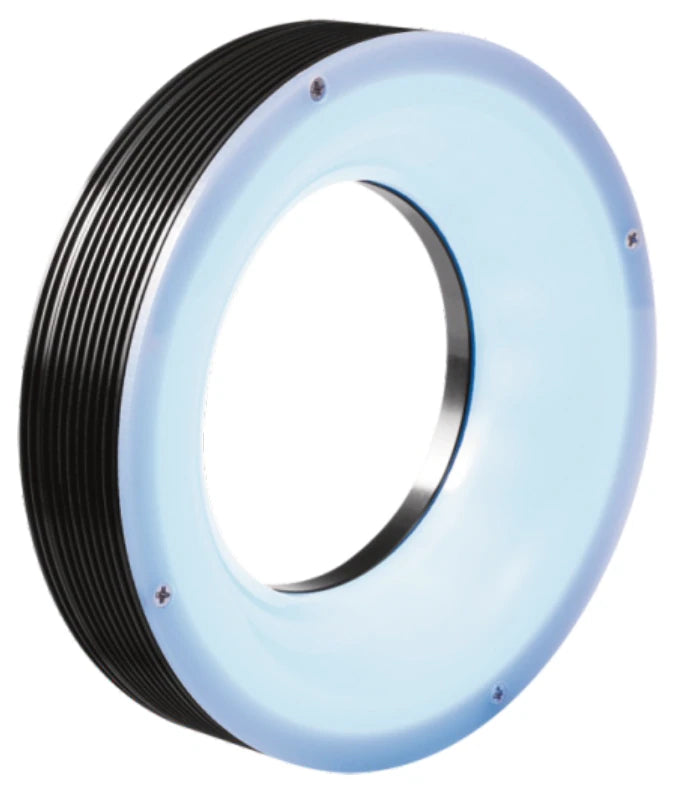

Shadowless light source / ring light (LS-SDL-S18)
- 6 models
- from $279.00
- Series LS-SDL-S18
The Shadowless light source / ring light (LS-SDL-S18) is a range of 6 shadowless lights from LumaSpec Vision, from $279.00. It comes in 1 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 334 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Large irradiated area
- High and low working distance could be used
- High brightness
Typical uses
- Dirt inspection of beverage bottle caps
- Character inspection on highly reflective metal mobile phone shell panels
- Highly reflective IC plastic packaging screen detection
- Surface detection of high-speed pipelined electronic components
- Inspection of aluminium foil packages for medical drugs
- High angle uniform illumination
All 6 models in the Shadowless light source / ring light (LS-SDL-S18)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SDL-0110 | 27.5 | 36 | 80 | 6.3 | $279.00 | View |
| LS-SDL-0111 | 25.5 | 66 | 116 | 14 | $429.00 | View |
| LS-SDL-0112 | 25.5 | 116 | 166 | 23 | $659.00 | View |
| LS-SDL-0113 | 25.5 | 146 | 196 | 27 | $809.00 | View |
| LS-SDL-0114 | 26 | 158 | 208 | 34 | $879.00 | View |
| LS-SDL-0115 | 25.5 | 300 | 350 | 56 | $1,959.00 | View |
