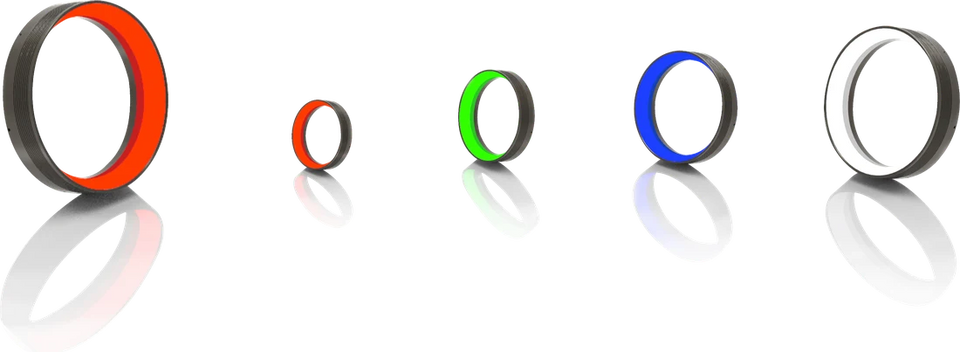

Low angle ring shadowless light (LS-SDL-S30)
- 5 models
- from $389.00
- Series LS-SDL-S30
The Low angle ring shadowless light (LS-SDL-S30) is a range of 5 shadowless lights from LumaSpec Vision, from $389.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 88 mm OD, 100 mm OD, 136 mm OD, 180 mm OD, 250 mm OD
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Good uniformity, suitable for low-angle illumination.
- High-density LEDs arranged vertically with special light-guiding diffusion.
- Reduces reflective glare.
- Efficient low-angle lighting enhances surface features.
Typical uses
- Surface damage inspection
- IC tape inspection
- BGA/QFP position inspection
- Connector pin spacing/offset detection
- Metal scratches detection
- Metal surface detection
All 5 models in the Low angle ring shadowless light (LS-SDL-S30)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SDL-0168 | 88 mm OD | 88x60x37 | 4.2 | 4.5 | $389.00 | View |
| LS-SDL-0169 | 100 mm OD | 100x73x40 | 4.6 | 5 | $389.00 | View |
| LS-SDL-0170 | 136 mm OD | 136x109x40 | 8 | 10 | $469.00 | View |
| LS-SDL-0171 | 180 mm OD | 180x153x40 | 11 | 13 | $579.00 | View |
| LS-SDL-0172 | 250 mm OD | 250x210x50 | 14 | 15 | $769.00 | View |
