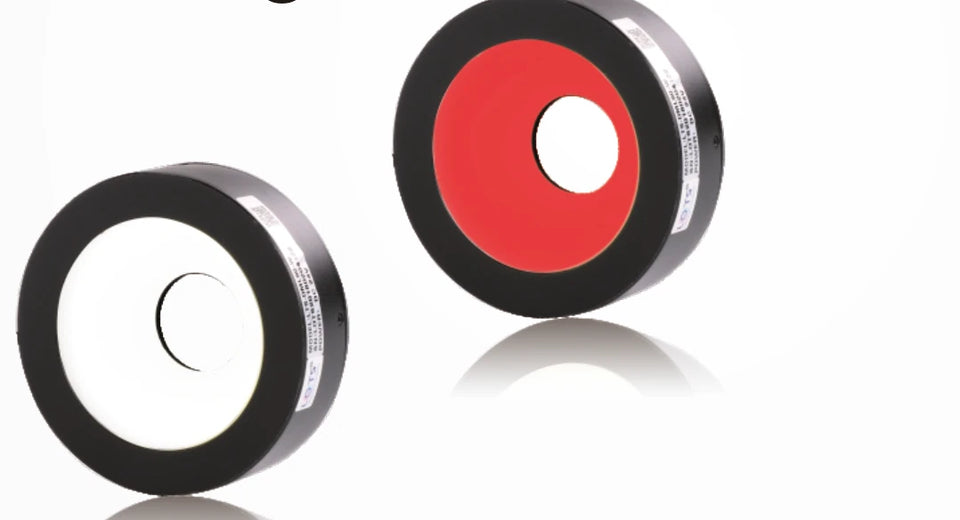

Multi-direction shadowless light (LS-SDL-S05)
- 3 models
- from $229.00
- Series LS-SDL-S05
The Multi-direction shadowless light (LS-SDL-S05) is a range of 3 shadowless lights from LumaSpec Vision, from $229.00. It comes in 2 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 64 mm, 94 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- LEDs mounted vertically, fastened to the light side
- Special diffuser, reflected ring illumination
- Highly uniform emission onto multiple slopes
- Customizable: Shape, Outer & inner diameter, Combined light, Colour & colour temperature, Multi-area control, Cable length, Installation method
- UV & IR versions can be customized as required
- LED vertical direction, fasten to light side
- Special diffuser, reflect ring illumination
- Provide high uniform emitting to multi slope
Typical uses
- Surface character and pattern recognition
- Metal object edge location and measurement inspection
- Imaging example: metal shrapnel location (LS-SDL-0030-W), high-uniformity diffuse light gives high contrast
- Metal object edge location, measure inspection
All 3 models in the Multi-direction shadowless light (LS-SDL-S05)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SDL-0030 | 64 mm | 64 | 4.4W/5.8W | 2.4W | $229.00 | View |
| LS-SDL-0029 | 2.9W/3.6W | $249.00 | View | |||
| LS-SDL-0031 | 94 mm | 94 | 5.8W/7.2W | 3.1W | $389.00 | View |
