Multi-direction shadowless light (LS-SDL-S05)
  • Multi-direction shadowless light (LS-SDL-S05)
  • LS-SDL-0029 dimensions (mm)

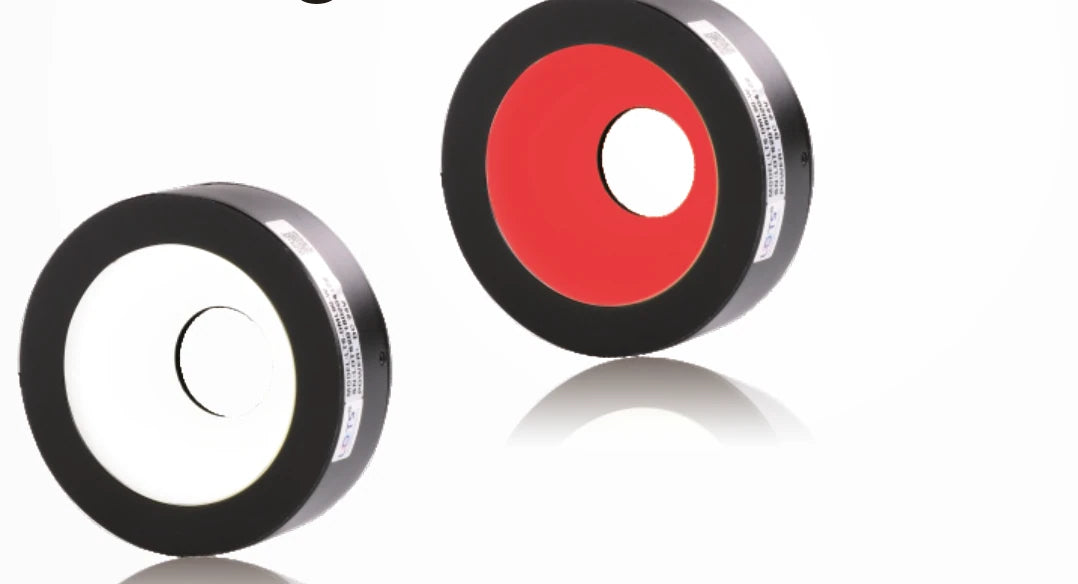

Representative photo of this series

Shadowless lights

Multi-direction shadowless light (LS-SDL-0029)

Model LS-SDL-0029

  • ColourRed, Blue, Green, White
  • Voltage24 V
  • Power2.9W/3.6W
  • Min. diameterdia. 90
$249.00

Ships in 2-3 weeks

0.5 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Multi-direction shadowless light (LS-SDL-0029)LS-SDL-0029

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LED lamp is located in the side of the light vertically. The emitting light go through a arc diffuser plate, then get a high uniformity light ray. Can be used in the character recognization and location.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SDL-0029
FOV1~100 mm
NoteUV & IR light can be customized as required.

Optics

Recommended working distance10~100 mm

Interfaces and I/O

Cable length500 mm
Extension cable optionsPVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines)

Light

Colour temperature of white6600 K

Environment and compliance

Operating temperature0-50 °C
Operating humidity20-85% (non-condensing)
Lifespan50000 h (to 50% of factory default luminance)

Electrical

Voltage24 V
Adapted controllersStrobe controller, analog controller, digital controller
Power2.9W/3.6W

Mechanical

Min. diameterdia. 90
Max. diameterdia. 120
DimensionOuter dia. 70mm,Inner dia. 28mm,Height 28mm
Shipping weight0.50 kg

Other models in the Multi-direction shadowless light (LS-SDL-S05) series

See all 3 models
ModelSize / key dataPriceAvailabilityLink
LS-SDL-0030 64 mm $229.00 Ships in 2-3 weeks View
LS-SDL-0031 94 mm $389.00 Ships in 2-3 weeks View
