Shadowless lights

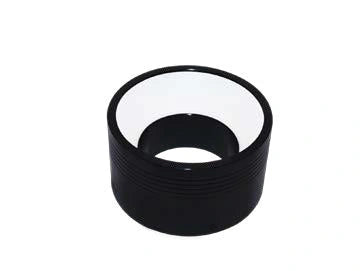

Ring-shaped shadowless light (LS-SDL-S24)
- 7 models
- from $119.00
- Series LS-SDL-S24
The Ring-shaped shadowless light (LS-SDL-S24) is a range of 7 shadowless lights from LumaSpec Vision, from $119.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 26 mm dia., 42 mm dia., 66 mm dia., 70 mm dia., 80 mm dia., 88 mm dia., 130 mm dia.
- Colour
- Red, Green, Blue, White, Infrared, UV
- Voltage
- 24 V
Features
- Shadowless diffused illumination
- Size can be customized according to different needs
Typical uses
- Connector pin positioning, QR code recognition
- PCB substrate inspection, electronic component inspection, appearance inspection
- LCD correction
All 7 models in the Ring-shaped shadowless light (LS-SDL-S24)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SDL-0135 | 26 mm dia. | 23 | 10 | 3 x M3 threaded, depth 5 | $119.00 | View |
| LS-SDL-0136 | 42 mm dia. | 32 | 18 | 4 x M3 threaded, depth 5.5 | $159.00 | View |
| LS-SDL-0137 | 66 mm dia. | 37 | 40 | 4 x M3 threaded, depth 5 | $229.00 | View |
| LS-SDL-0138 | 70 mm dia. | 37 | 42 | 4 x M3 threaded, depth 5 | $249.00 | View |
| LS-SDL-0139 | 80 mm dia. | 27 | 36 | 4 x M3 threaded, depth 4 | $279.00 | View |
| LS-SDL-0140 | 88 mm dia. | 37 | 61 | 4 x M3 threaded, depth 5 | $389.00 | View |
| LS-SDL-0141 | 130 mm dia. | 37 | 102 | 4 x M3 threaded, depth 5 | $489.00 | View |
