Shadowless lights

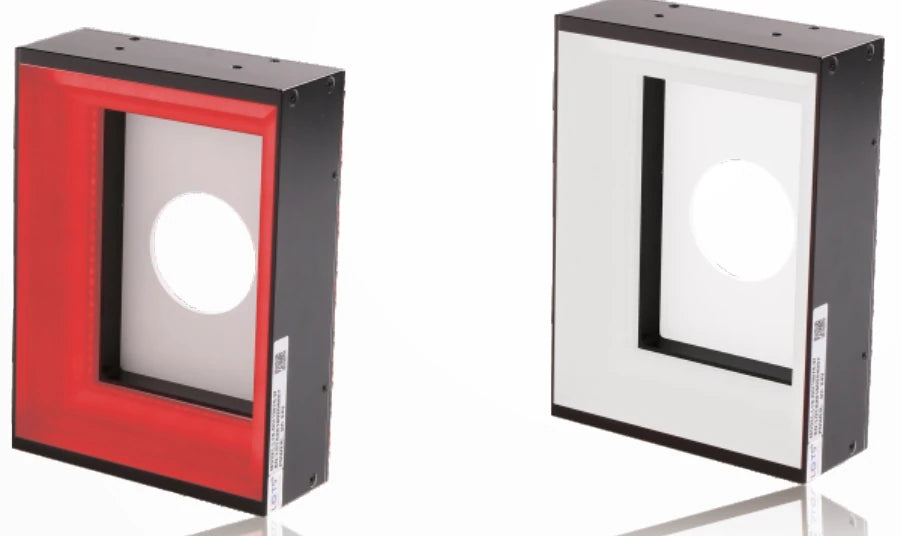

Square shadowless light (LS-SDL-S25)
- 6 models
- from $499.00
- Series LS-SDL-S25
The Square shadowless light (LS-SDL-S25) is a range of 6 shadowless lights from LumaSpec Vision, from $499.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- 100-200 mm
- Voltage
- 24 V
Features
- LEDs distributed vertically
- High uniformity, high luminance
- For workpieces that need a balanced surface
- Reduces reflected light and flare
- Customizable: Length and width, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
- LED vertical distribution
- Used to the workpiece which need balanced surface
Typical uses
- Cigarette case surface inspection
- Integrated circuit material strap inspection
- Lead pin pitch inspection
- Integrated circuit character inspection
- Metal surface scratch inspection
- Imaging example: packing contour inspection (LS-SDL-0144-W), obvious high-contrast contour
All 6 models in the Square shadowless light (LS-SDL-S25)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SDL-0143 | $499.00 | View | ||||
| LS-SDL-0142 | 110 x 75 | 12.3W/14.1W | L156xW113xH44(mm) | 2×2-M4 depth 4.5 | $609.00 | View |
| LS-SDL-0145 | 125 x 125 | 12.3W/15.2W | L173xW165xH42(mm) | 8-M4 depth 4 | $699.00 | View |
| LS-SDL-0144 | 152 x 76 | 13.0W/16.2W | L200xW116xH42(mm) | 6-M4 depth 4 | $839.00 | View |
| LS-SDL-0146 | 232 x 140 | 14.1W/17.3W | L280xW180xH42(mm) | 10-M4 depth 4 | $1,359.00 | View |
| LS-SDL-0147 | 302 x 160 | 17.3W/21.6W | L350xW200xH42(mm) | 10-M4 depth 4 | $1,929.00 | View |
