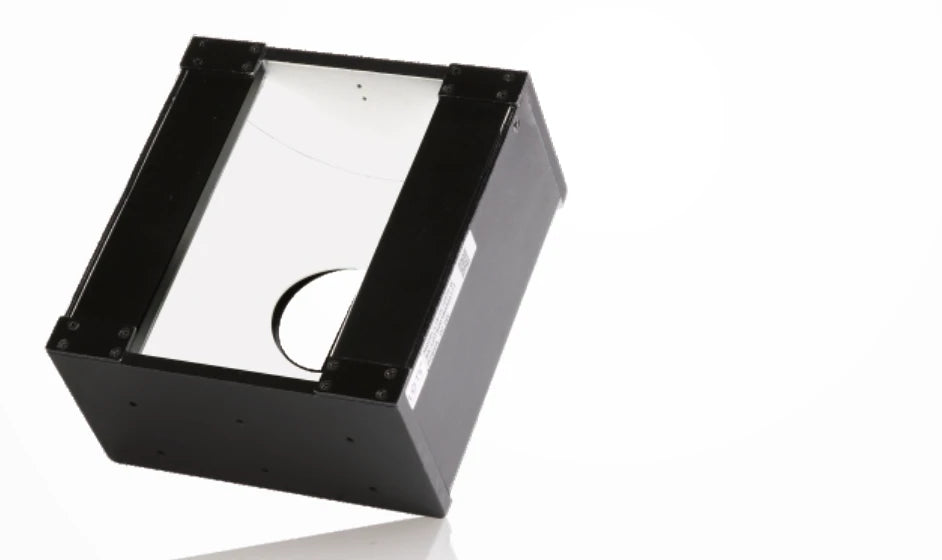

Arch shadowless light (LS-SDL-S04)
- 10 models
- from $389.00
- Series LS-SDL-S04
The Arch shadowless light (LS-SDL-S04) is a range of 10 shadowless lights from LumaSpec Vision, from $389.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 90 x 70 mm, 125 x 70 mm, 143 x 95 mm, 145 x 277 mm, 204 x 110 mm, 220 x 25 mm, 260 x 70 mm, 340 x 130 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- High uniformity, high luminance
- For workpieces that need a balanced surface
- Reduces reflected light and flare
- Customizable: Shape, Length, Viewport, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
- Used to the workpiece which need balanced surface
- Reduce the reflect light or flare
Typical uses
- PCB inspection
- Packing inspection
- Plastic surface inspection
- Imaging example: pill (tablet blister) dirty part inspection (LS-SDL-0020-W), uniform emission highlights the black dirt
- Metal surface scratch inspection
All 10 models in the Arch shadowless light (LS-SDL-S04)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SDL-0019 | 90 x 70 mm | 90 x 70 | R(red)/W(white) | 9.6W/11.6W | $389.00 | View |
| LS-SDL-0020 | 125 x 70 mm | 125 x 70 | W(white) | 15.4W/17.3W | $469.00 | View |
| LS-SDL-0021 | 143 x 95 mm | 143 x 95 | R(red)/W(white) | 15.4W/17.3W | $559.00 | View |
| LS-SDL-0022 | R(red)/W(white) | 15.4W/17.3W | $679.00 | View | ||
| LS-SDL-0025 | R(red)/W(white) | 17.3W/23.1W | $859.00 | View | ||
| LS-SDL-0026 | 204 x 110 mm | 204 x 110 | R(red)/W(white) | 17.3W/23.1W | $879.00 | View |
| LS-SDL-0023 | 220 x 25 mm | 220 x 25 | $949.00 | View | ||
| LS-SDL-0024 | 260 x 70 mm | 260 x 70 | R(red)/W(white) | 26.9W/34.6W | $1,219.00 | View |
| LS-SDL-0027 | 145 x 277 mm | 145 x 277 | R(red)/W(white) | 28.8W/34.6W | $1,359.00 | View |
| LS-SDL-0028 | 340 x 130 mm | 340 x 130 | R(red)/W(white) | 34.6W/46.1W | $1,859.00 | View |
