Shadowless lights

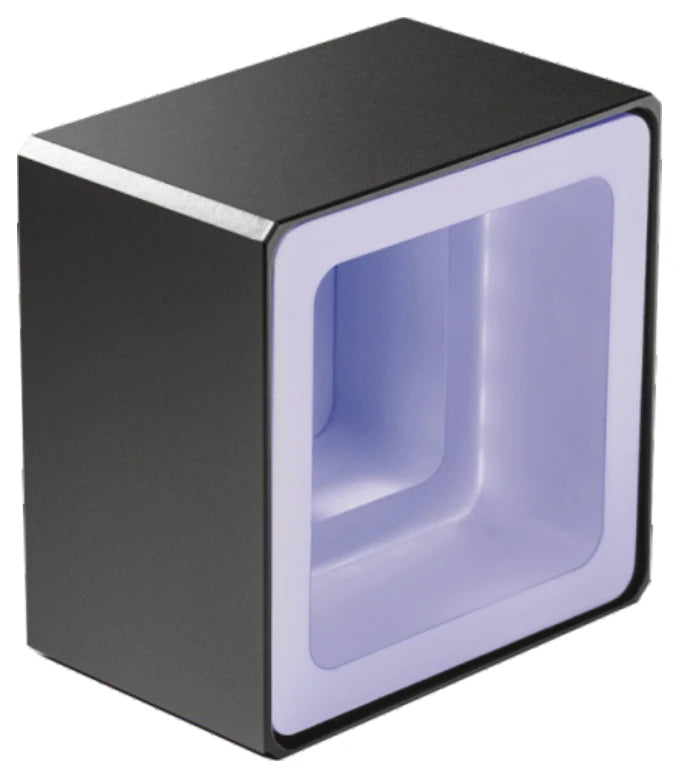

Square shadowless light source (LS-SDL-S12)
- 8 models
- from $179.00
- Series LS-SDL-S12
The Square shadowless light source (LS-SDL-S12) is a range of 8 shadowless lights from LumaSpec Vision, from $179.00. It comes in 1 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 142.55 x 60 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Suitable for square object measuring
- Uniform illumination
- Eliminate the reflections
Typical uses
- FPC product positioning
- Electronic components inspection
- Pin bending inspection
- Pin surface dirt inspection
- IC pin drop inspection
- Inspection of substrate appearance pattern
All 8 models in the Square shadowless light source (LS-SDL-S12)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SDL-0073 | 48 | 48 | 2.3 | 1.2 | $179.00 | View |
| LS-SDL-0074 | 75 | 75 | 3.4 | 2.3 | $259.00 | View |
| LS-SDL-0075 | 96 | 96 | 4.5 | 2.8 | $339.00 | View |
| LS-SDL-0076 | 120 | 120 | 4.5 | 3.4 | $449.00 | View |
| LS-SDL-0077 | 150 | 150 | 4.2 | 3 | $549.00 | View |
| LS-SDL-0079 | 180 | 120 | 6.8 | 7.2 | $729.00 | View |
| LS-SDL-0078 | 234 | 234 | 18 | 15 | $1,049.00 | View |
| LS-SDL-0080 | 300 | 200 | 18 | 13 | $1,509.00 | View |
