Shadowless lights

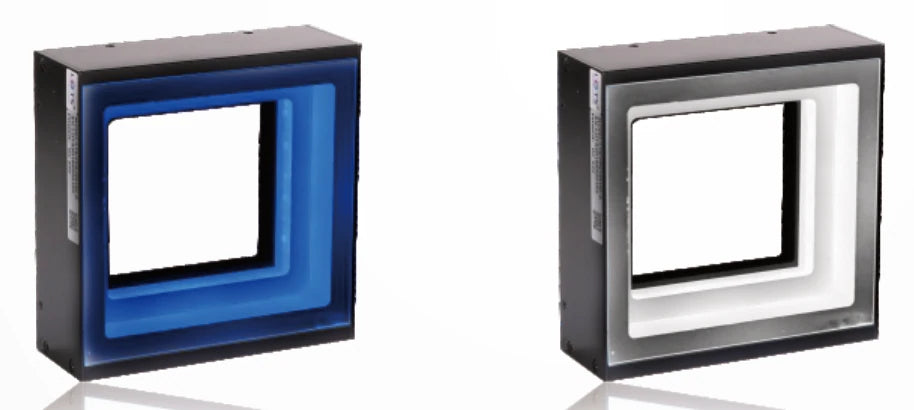

Square shadowless light (LS-SDL-S10)
- 6 models
- from $179.00
- Series LS-SDL-S10
The Square shadowless light (LS-SDL-S10) is a range of 6 shadowless lights from LumaSpec Vision, from $179.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 104 x 56 mm, 108 x 116 mm, 138 x 146 mm, 238 x 246 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Special emitting structure, uniform emission in the effective working area
- Efficient low-angle illumination, strengthens surface characteristics, highlights defect contrast
- For workpieces that need a balanced surface and reduced reflected light or flare
- Customizable: Length and width, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
Typical uses
- BGA, GFP position inspection (as printed)
- Integrated circuit material strap inspection
- Lead pin pitch inspection
- Integrated circuit character inspection
- Metal surface scratch inspection
- Imaging example: needle column vertical inspection on electronics (LS-SDL-0059-W), white needle shows distortion clearly
All 6 models in the Square shadowless light (LS-SDL-S10)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SDL-0056 | 1.2W | 0.7W | $179.00 | View | ||
| LS-SDL-0057 | 1.4W | 1.0W | $219.00 | View | ||
| LS-SDL-0058 | 104 x 56 mm | 104 x 56 | 2.2W | 1.4W | $429.00 | View |
| LS-SDL-0059 | 108 x 116 mm | 108 x 116 | 10.6W | 7.2W | $429.00 | View |
| LS-SDL-0060 | 138 x 146 mm | 138 x 146 | 11.5W | 7.7W | $569.00 | View |
| LS-SDL-0061 | 238 x 246 mm | 238 x 246 | 19.7W | 13.0W | $1,139.00 | View |
