Shadowless lights

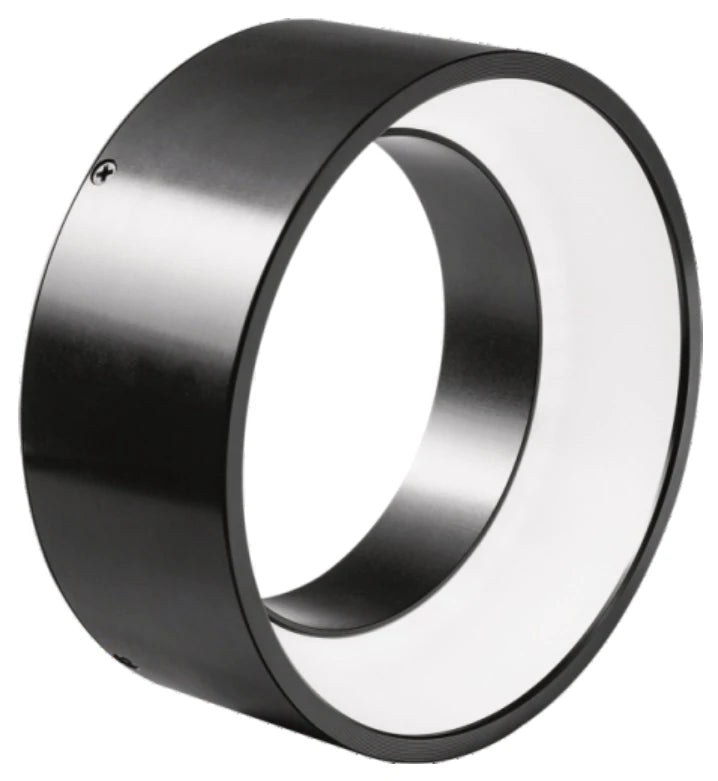

Shadowless light source (LS-SDL-S13)
- 5 models
- from $179.00
- Series LS-SDL-S13
The Shadowless light source (LS-SDL-S13) is a range of 5 shadowless lights from LumaSpec Vision, from $179.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 42 mm, 78 mm, 92 mm, 142 mm, 172 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Suitable for large round objects or small irregularly shaped objects
- Higher uniformity
- Uniform illumination without shadow
Typical uses
- Contour extraction of circular metal parts
- Low angle uniform illumination
- Low angle feature extraction
- Various character recognition
- Inspection of parts on substrate
- Label inspection
All 5 models in the Shadowless light source (LS-SDL-S13)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SDL-0081 | 42 mm | 42 | 40 | 21 | $179.00 | View |
| LS-SDL-0082 | 78 mm | 78 | 38 | 60 | $309.00 | View |
| LS-SDL-0083 | 92 mm | 92 | 40 | 71 | $389.00 | View |
| LS-SDL-0084 | 142 mm | 142 | 40 | 80 | $589.00 | View |
| LS-SDL-0085 | 172 mm | 172 | 40 | 151 | $739.00 | View |
