Shadowless lights

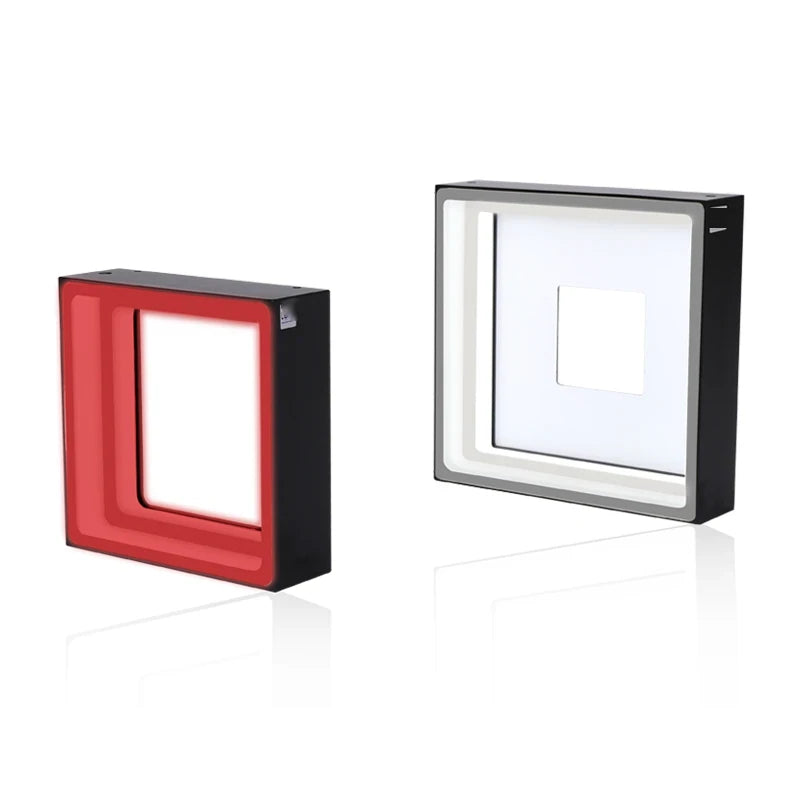

Square shadowless light (LS-SDL-S01)
- 10 models
- from $139.00
- Series LS-SDL-S01
The Square shadowless light (LS-SDL-S01) is a range of 10 shadowless lights from LumaSpec Vision, from $139.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- Under 50 mm, 50-100 mm, 100-200 mm, 200-400 mm
- Voltage
- 24 V
Features
- Uniformly emitting from 4 direction at low angle
- The 2FPQ is 2-3 times brighter than LS-SDL-S10 series
- The installation hole at top and flank make the installation more flexible
- Suitable for quadrangular workpiece (Ex. The outline of four corners)
- Achieve more uniformly emitting by reflector
Typical uses
- BGA,GFP position inspection
- Integrated circuit material strap inspection
- Inspection lead pin pitch character of integrated circuit
- Metal surface scratch inspection
All 10 models in the Square shadowless light (LS-SDL-S01)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SDL-0001 | 2.7W/4.0W | L32xW32xH30(mm) | 2-M3 depth 6; 4-M2 depth 3; 4-M3 depth 4 | $139.00 | View | |
| LS-SDL-0002 | 45 x 45 | 5.3W/6.6W | L48xW48xH30(mm) | 4-M3 depth 3 | $179.00 | View |
| LS-SDL-0003 | 57 x 57 | 7.9W/9.3W | L60xW60xH30(mm) | 4-M3 depth 3 | $219.00 | View |
| LS-SDL-0004 | 72 x 72 | 10.6W/11.9W | L75xW75xH30(mm) | 2×2-M3 depth 6; 4-M3 depth 3 | $259.00 | View |
| LS-SDL-0005 | 93 x 93 | 10.6W/13.2W | L96xW96xH30(mm) | 4-M3 depth 3; 2×2-M3 depth 6 | $339.00 | View |
| LS-SDL-0006 | 117 x 117 | 15.9W/21.2W | L120xW120xH30(mm) | 4-M3 depth 3 | $449.00 | View |
| LS-SDL-0007 | 147 x 147 | 21.2W/26.4W | L150xW150xH30(mm) | 4-M3 depth 3 | $579.00 | View |
| LS-SDL-0008 | 177 x 147 | 23.8W/29.1W | L180xW150xH30(mm) | 6-M3 depth 4 | $729.00 | View |
| LS-SDL-0009 | 247 x 137 | 27.8W/34.3W | L250xW140xH30(mm) | 6-M3 depth 3 | $1,149.00 | View |
| LS-SDL-0010 | 342 x 246 | 43.6W/54.2W | L350xW250xH24(mm) | 16-M4 depth 4 (reverse side) | $1,919.00 | View |
