Shadowless lights

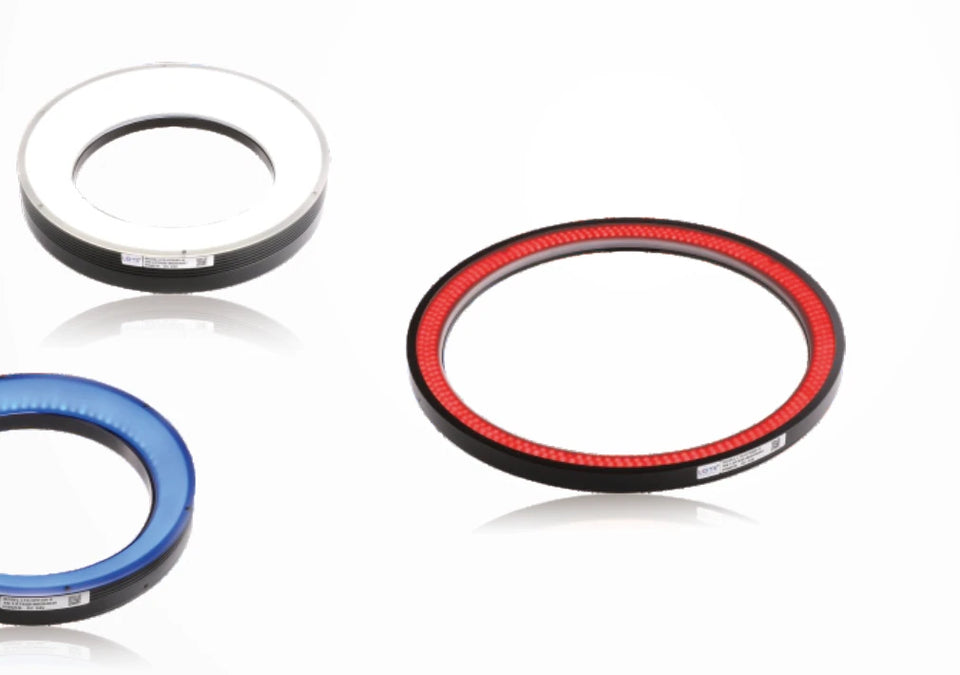

Ring shadowless light (LS-SDL-S17)
- 8 models
- from $189.00
- Series LS-SDL-S17
The Ring shadowless light (LS-SDL-S17) is a range of 8 shadowless lights from LumaSpec Vision, from $189.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 61 mm, 103 mm, 122 mm, 184 mm, 205 mm, 228 mm, 286 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Uses surface-mount (paste) LEDs, high uniformity
- High-angle uniform emission
- Wire jacket covers the cable exit, anti-pull
- Customizable: Emitting angle, Outer & inner diameter, Shape, Colour & colour temperature, Multi-area control, Cable length, Installation method
- UV & IR versions can be customized as required
Typical uses
- Date code inspection on food packaging
- Inspection of highly reflective surfaces of workpieces
- Imaging example: air-conditioner fan blade direction inspection (LS-SDL-0108-W), uniform emission whitens the background to contrast with the black fan blades
All 8 models in the Ring shadowless light (LS-SDL-S17)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SDL-0102 | 61 mm | 61 | 2.7W | 1.7W | $189.00 | View |
| LS-SDL-0103 | 5.0W | 3.4W | $269.00 | View | ||
| LS-SDL-0104 | 103 mm | 103 | 8.2W | 5.5W | $399.00 | View |
| LS-SDL-0105 | 122 mm | 122 | 8.6W | 5.8W | $449.00 | View |
| LS-SDL-0106 | 184 mm | 184 | 10.1W | 6.7W | $559.00 | View |
| LS-SDL-0107 | 205 mm | 205 | 16.8W | 10.1W | $599.00 | View |
| LS-SDL-0108 | 228 mm | 228 | 24.0W | 14.4W | $619.00 | View |
| LS-SDL-0109 | 286 mm | 286 | 17.0W | 10.3W | $789.00 | View |
