Ring shadowless light (LS-SDL-S17)
  • Ring shadowless light (LS-SDL-S17)

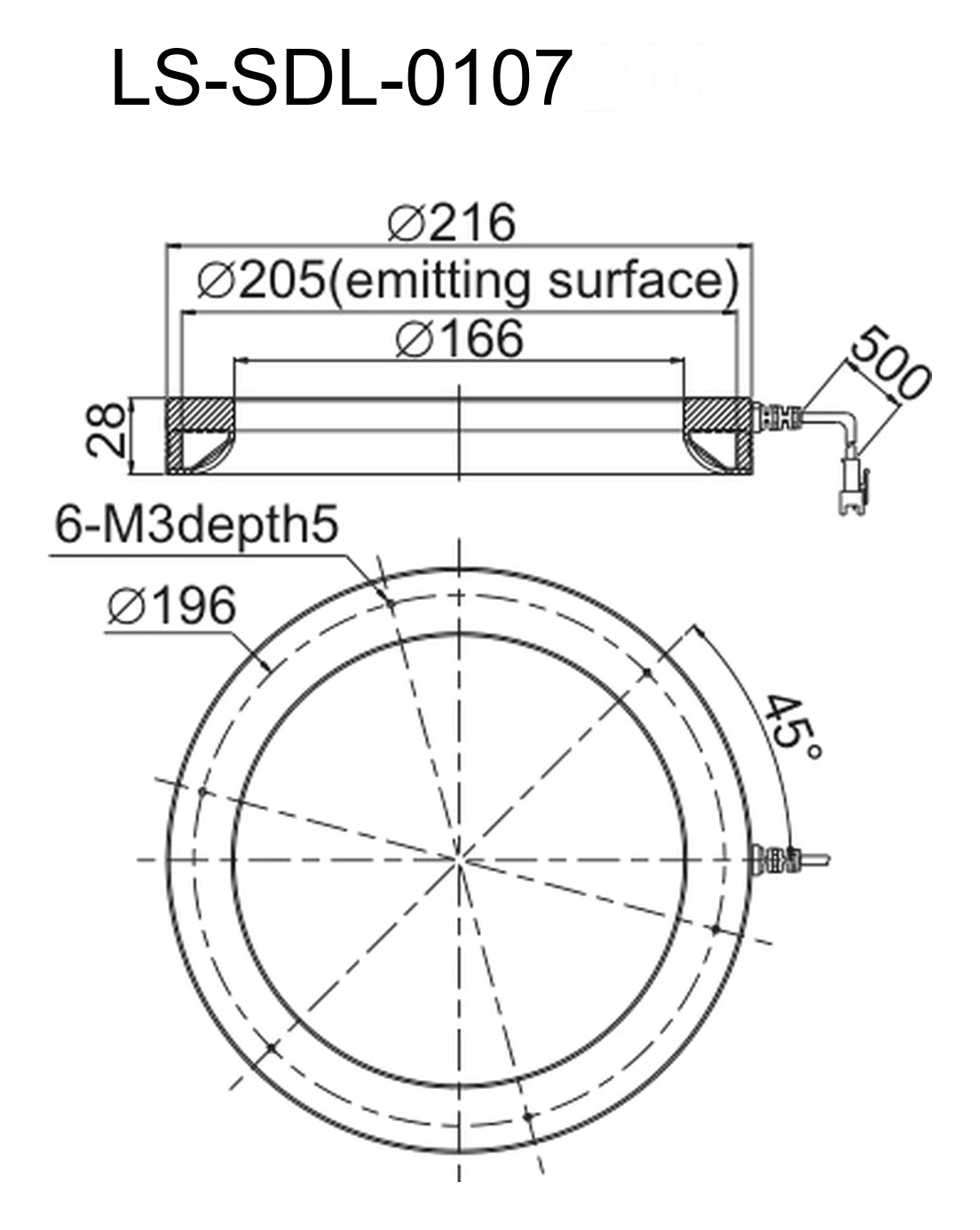

  • LS-SDL-0107 dimensions (mm)

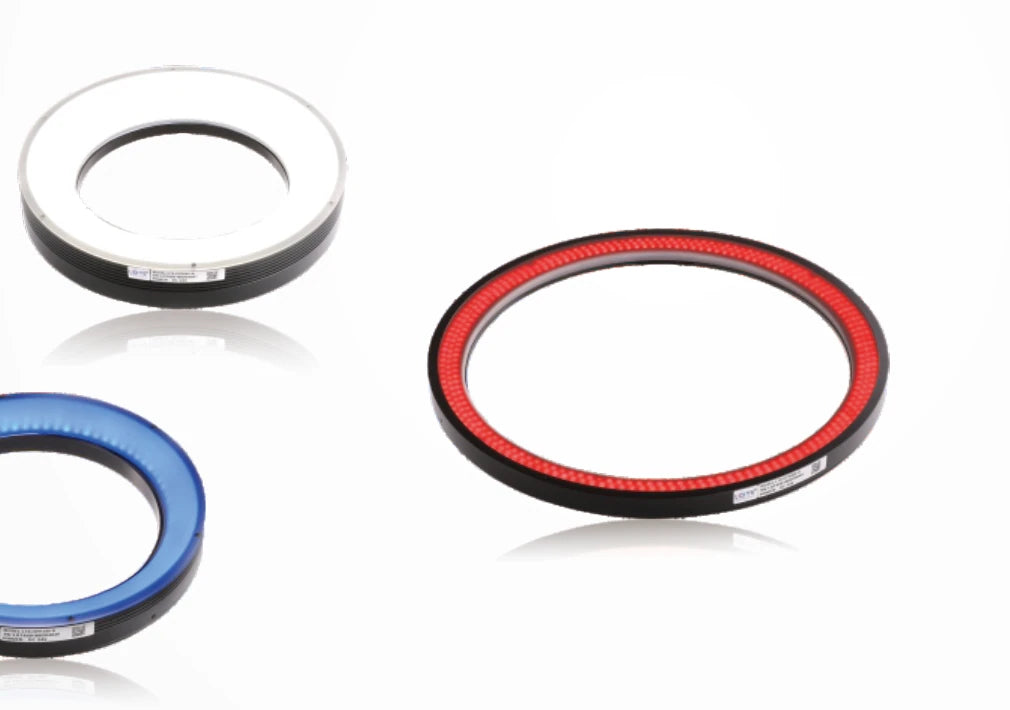

Representative photo of this series

Shadowless lights

205 mm Ring shadowless light (LS-SDL-0107)

Model LS-SDL-0107

  • ColourRed, Green, Blue, White
  • Emitting area205 mm
  • Voltage24 V
  • Min. diameterdia. 61
$599.00

Ships in 2-3 weeks

0.9 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

205 mm Ring shadowless light (LS-SDL-0107)LS-SDL-0107

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ring shadowless light using surface-mount LEDs with high uniformity and uniform high-angle emission.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SDL-0107
FOV1~300 mm

Optics

Recommended working distance100~300 mm

Interfaces and I/O

Cable length500 mm
Extension cable optionsPVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines)

Light

Colour temperature of white6600 K
Emitting surface dia. (mm)205

Environment and compliance

Operating temperature0-50 °C
Operating humidity20-85% (non-condensing)
Lifespan50000 h (to 50% of factory default luminance)

Electrical

Voltage24 V
Adapted controllersStrobe controller, analog controller, digital controller
Power (R)10.1W
Power (G/B/W)16.8W

Mechanical

Min. diameterdia. 61
Max. diameterdia. 300
Weight622 g

Other models in the Ring shadowless light (LS-SDL-S17) series

See all 8 models
ModelSize / key dataPriceAvailabilityLink
LS-SDL-0102 61 mm $189.00 Ships in 2-3 weeks View
LS-SDL-0103 Red, Green, Blue, White · 24 V $269.00 Ships in 2-3 weeks View
LS-SDL-0104 103 mm $399.00 Ships in 2-3 weeks View
LS-SDL-0105 122 mm $449.00 Ships in 2-3 weeks View
LS-SDL-0106 184 mm $559.00 Ships in 2-3 weeks View
LS-SDL-0108 228 mm $619.00 Ships in 2-3 weeks View
LS-SDL-0109 286 mm $789.00 Ships in 2-3 weeks View
