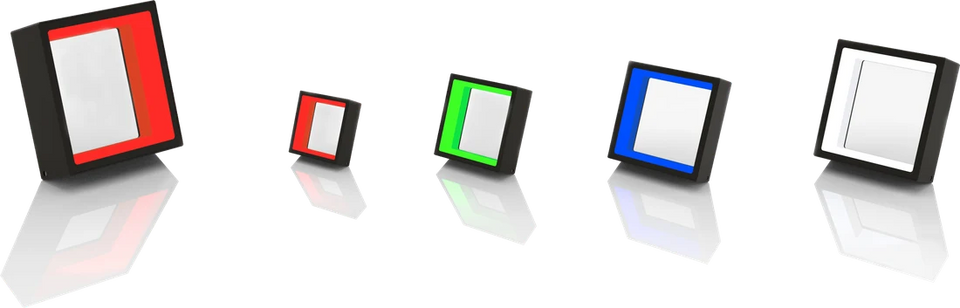

Square shadowless light (LS-SDL-S33)
- 8 models
- from $109.00
- Series LS-SDL-S33
The Square shadowless light (LS-SDL-S33) is a range of 8 shadowless lights from LumaSpec Vision, from $109.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 20 mm, 32 mm, 48 mm, 75 mm, 96 mm, 120 mm, 200 x 120 mm, 300 x 200 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Illumination area can be customized.
- High-brightness, high uniformity.
- Ideal for square-shaped objects.
- Capable of detecting the contours of the four corners that are difficult to illuminate with ring light, and prevents reflective projections.
Typical uses
- Print surface defect check
- Pin/leg flatness inspection
- Metal scratch detection
- Solder joint inspection
- Pin/leg bend, loss, dirt check
- PCB appearance & pattern inspection
All 8 models in the Square shadowless light (LS-SDL-S33)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SDL-0179 | 20 mm | 5x5 | 20x20x23 | 2.5 | $109.00 | View |
| LS-SDL-0180 | 32 mm | 10x10 | 32x32x30 | 3 | $139.00 | View |
| LS-SDL-0181 | 48 mm | 26x26 | 48x48x30 | 3 | $179.00 | View |
| LS-SDL-0182 | 75 mm | 53x53 | 75x75x30 | 4 | $259.00 | View |
| LS-SDL-0183 | 96 mm | 74x74 | 96x96x30 | 4.5 | $389.00 | View |
| LS-SDL-0184 | 120 mm | 98x98 | 120x120x30 | 8 | $449.00 | View |
| LS-SDL-0185 | 200 x 120 mm | 177x97 | 200x120x30 | 16 | $839.00 | View |
| LS-SDL-0186 | 300 x 200 mm | 268x168 | 200x300x30 | 20 | $849.00 | View |
