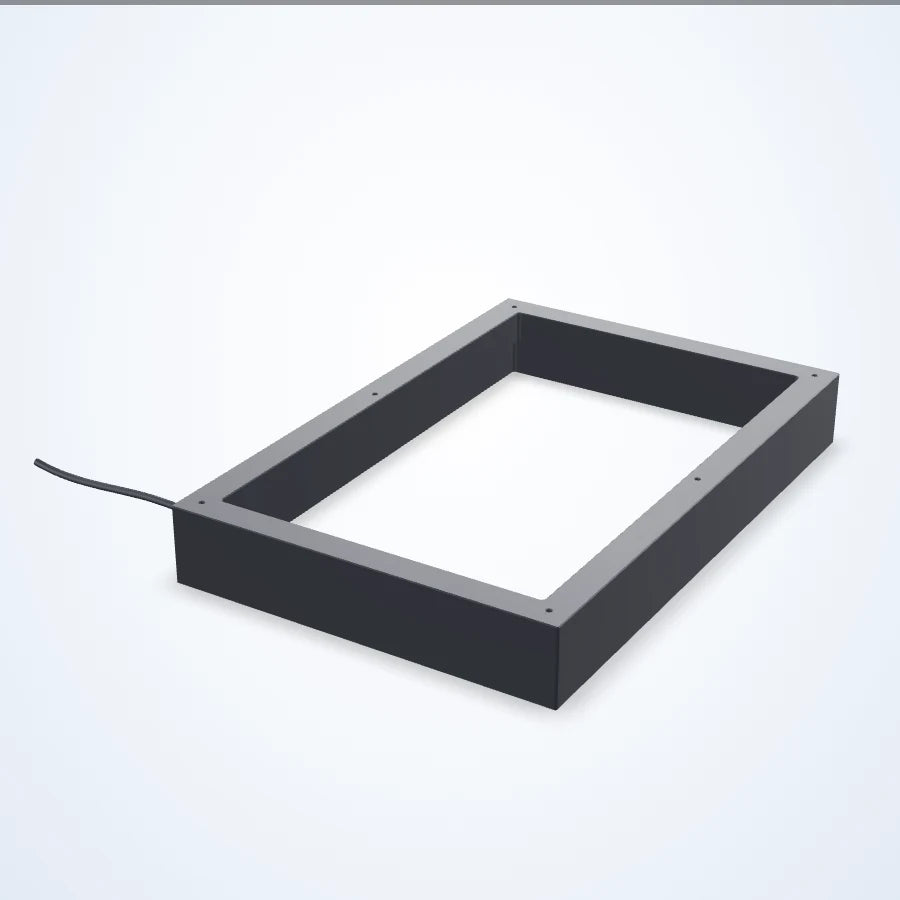

LS-SDL-0186 3D render
  • LS-SDL-0186 3D render

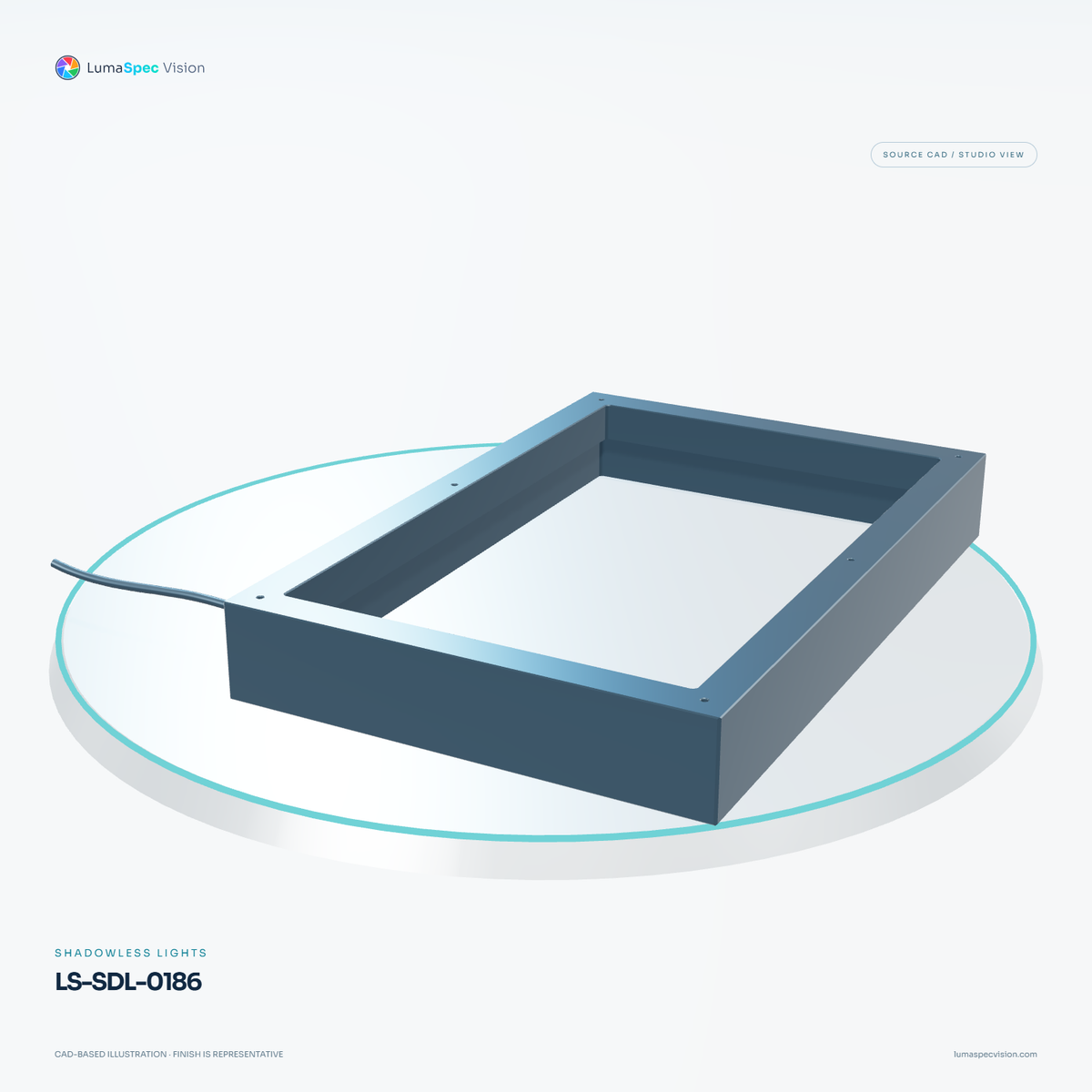

  • LS-SDL-0186 — Shadowless lights, 3D view 1. CAD-based illustration; finish is representative.

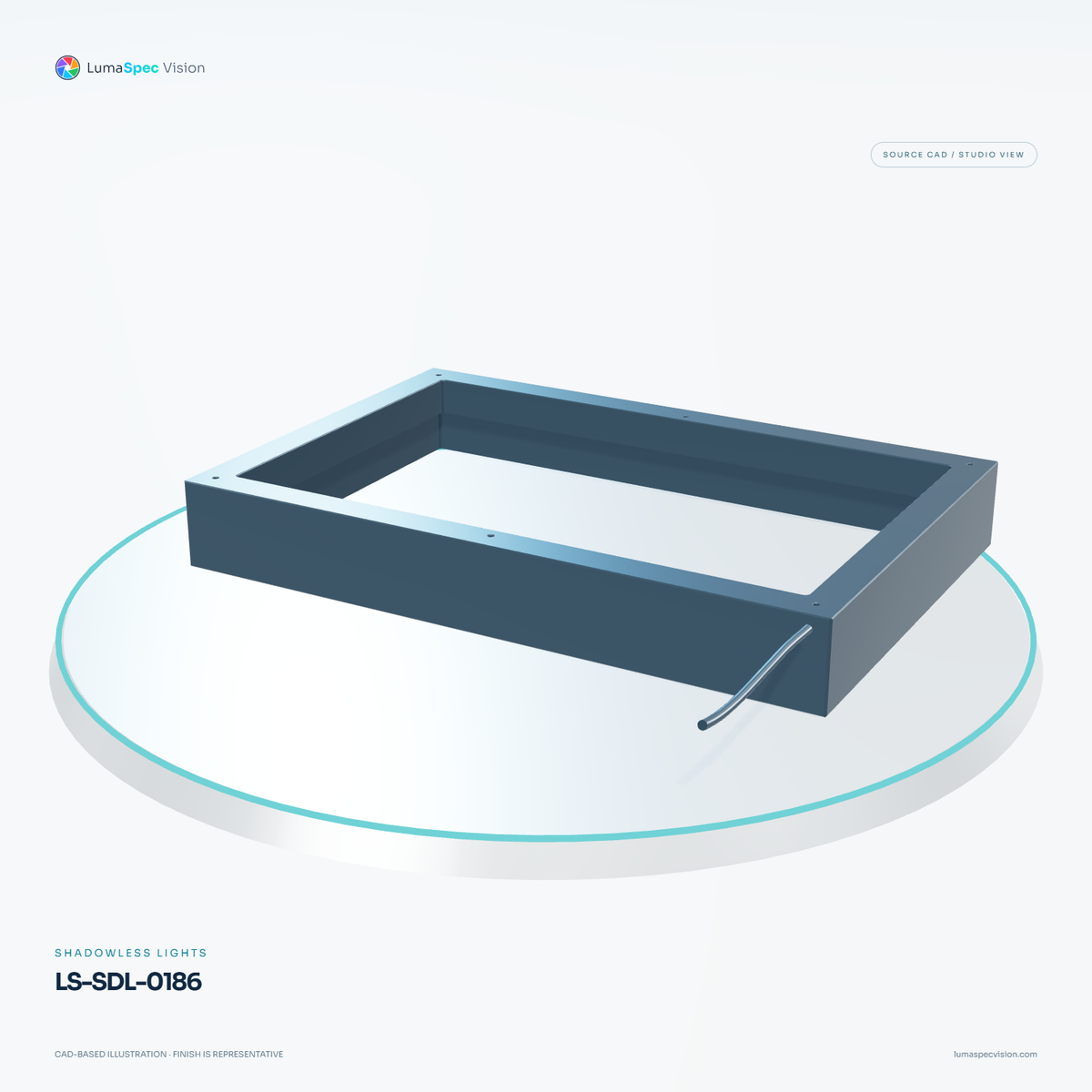

  • LS-SDL-0186 — Shadowless lights, 3D view 2. CAD-based illustration; finish is representative.

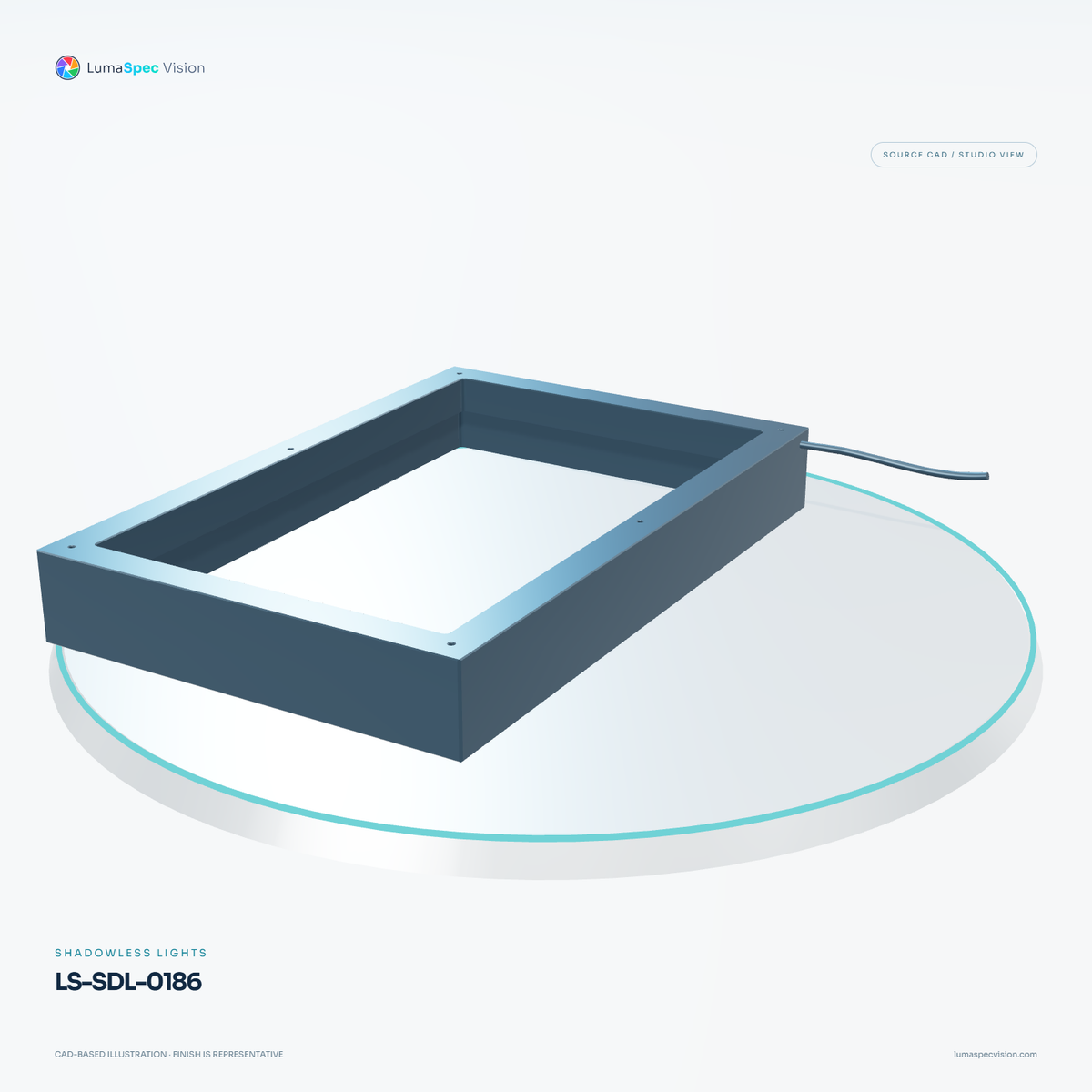

  • LS-SDL-0186 — Shadowless lights, 3D view 3. CAD-based illustration; finish is representative.

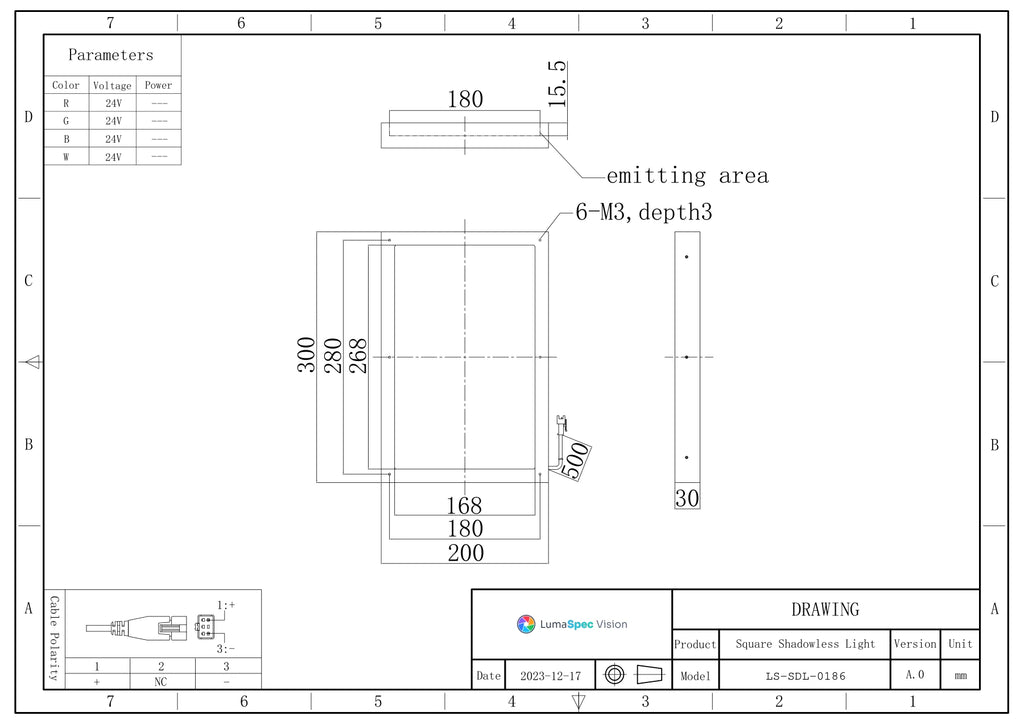

  • LS-SDL-0186 dimensions (mm)

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Shadowless lights

300 x 200 mm Square Flat Shadowless Light (LS-SDL-0186)

Model LS-SDL-0186

  • ColourRed, Green, Blue, White
  • Voltage24 V
  • Power26 W
  • Inner dia268x168 mm
$849.00

Ships in 2-3 weeks

1.4 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

300 x 200 mm Square Flat Shadowless Light (LS-SDL-0186)LS-SDL-0186

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

300 x 200 mm Square Flat Shadowless Light. Square shadowless light with high brightness and high uniformity, ideal for square-shaped objects. It lights the four-corner contours that a ring light struggles to reach and prevents reflective projections; the illumination area can be customized.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SDL-0186
Inner dia (mm)268x168
L x W x H (mm)200x300x30

Interfaces and I/O

Cable lead (mm, per drawings)500

Light

ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)20
Power W/B/G (W)26

Mechanical

Shipping weight (estimated)1.40 kg

Mounting and drawing data

table prints LxWxH as 200x300x30; drawing: 6-M3 depth 3, 180 x 280 pattern; emitting face around the perimeter

LS-SDL-0186

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-SDL-0186 — Shadowless lights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Voltage (V)
24
Inner dia (mm)
268x168
Power R (W)
20
Power W/B/G (W)
26

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
