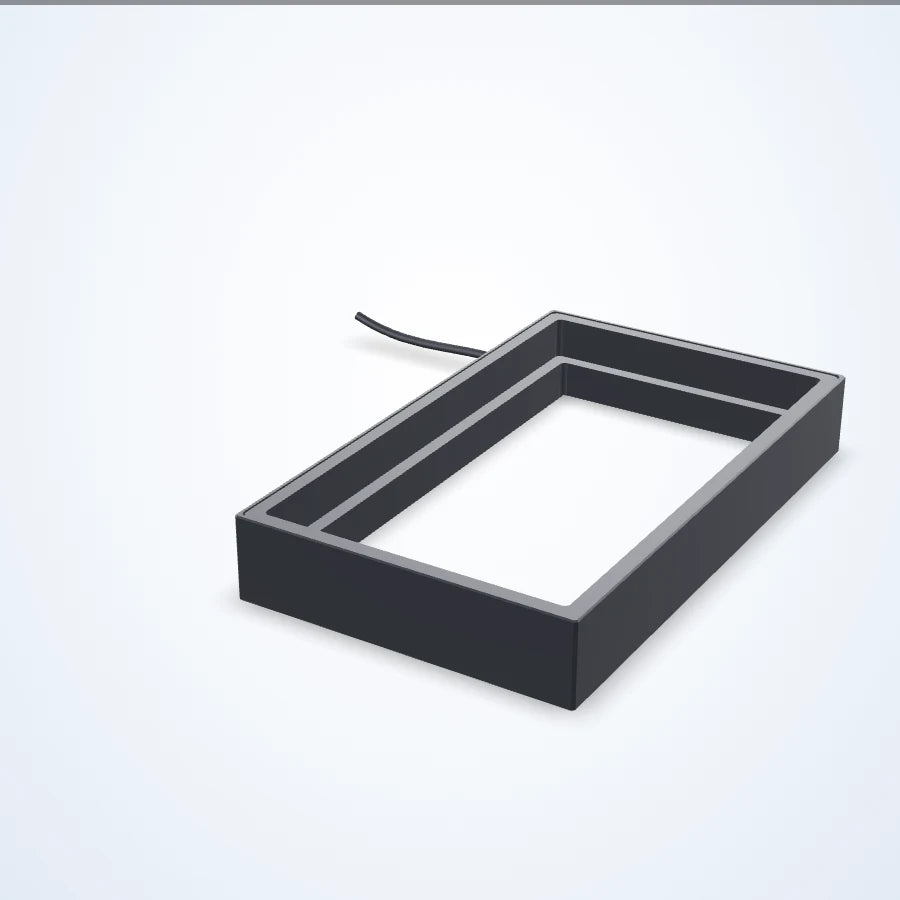

LS-SDL-0185 3D render
  • LS-SDL-0185 3D render

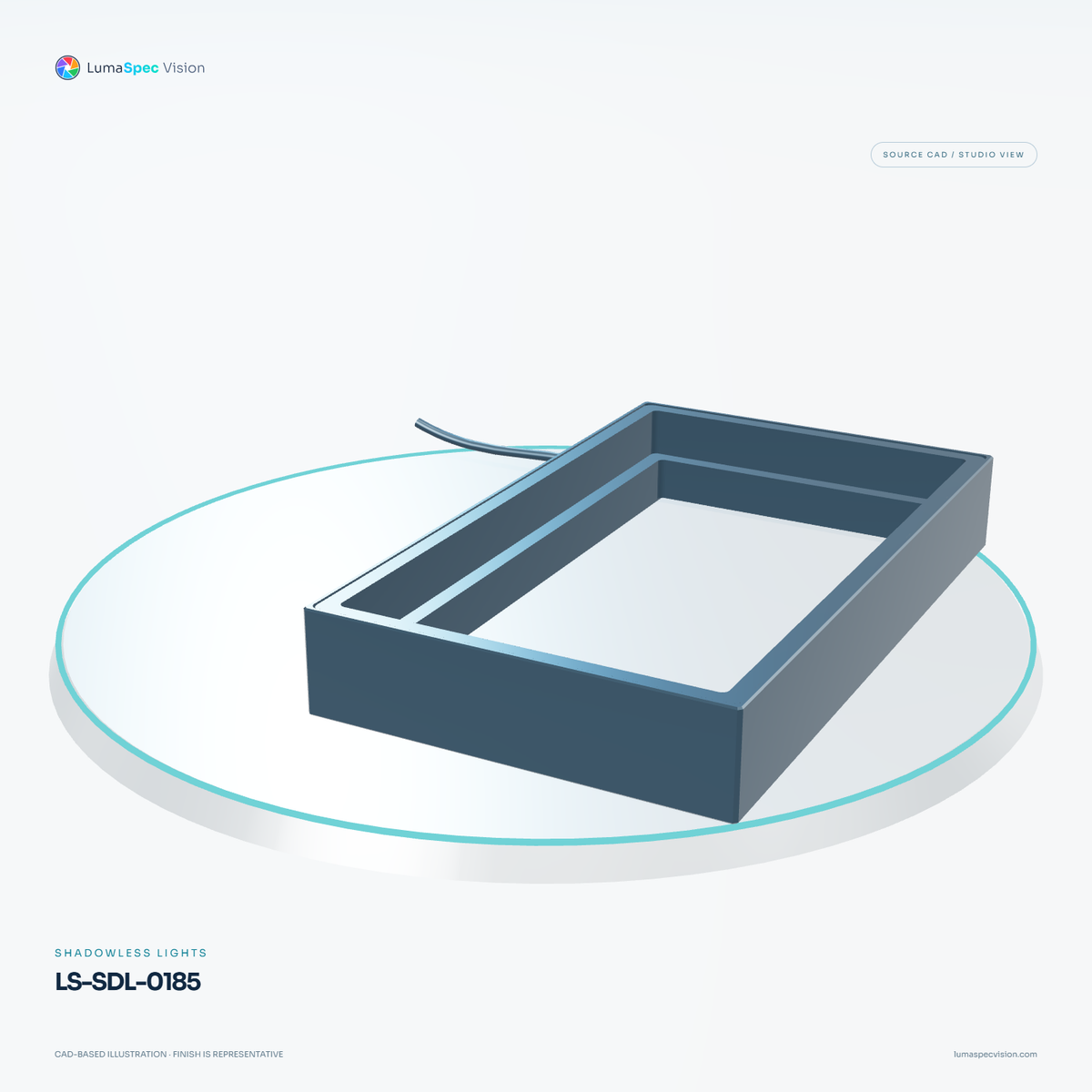

  • LS-SDL-0185 — Shadowless lights, 3D view 1. CAD-based illustration; finish is representative.

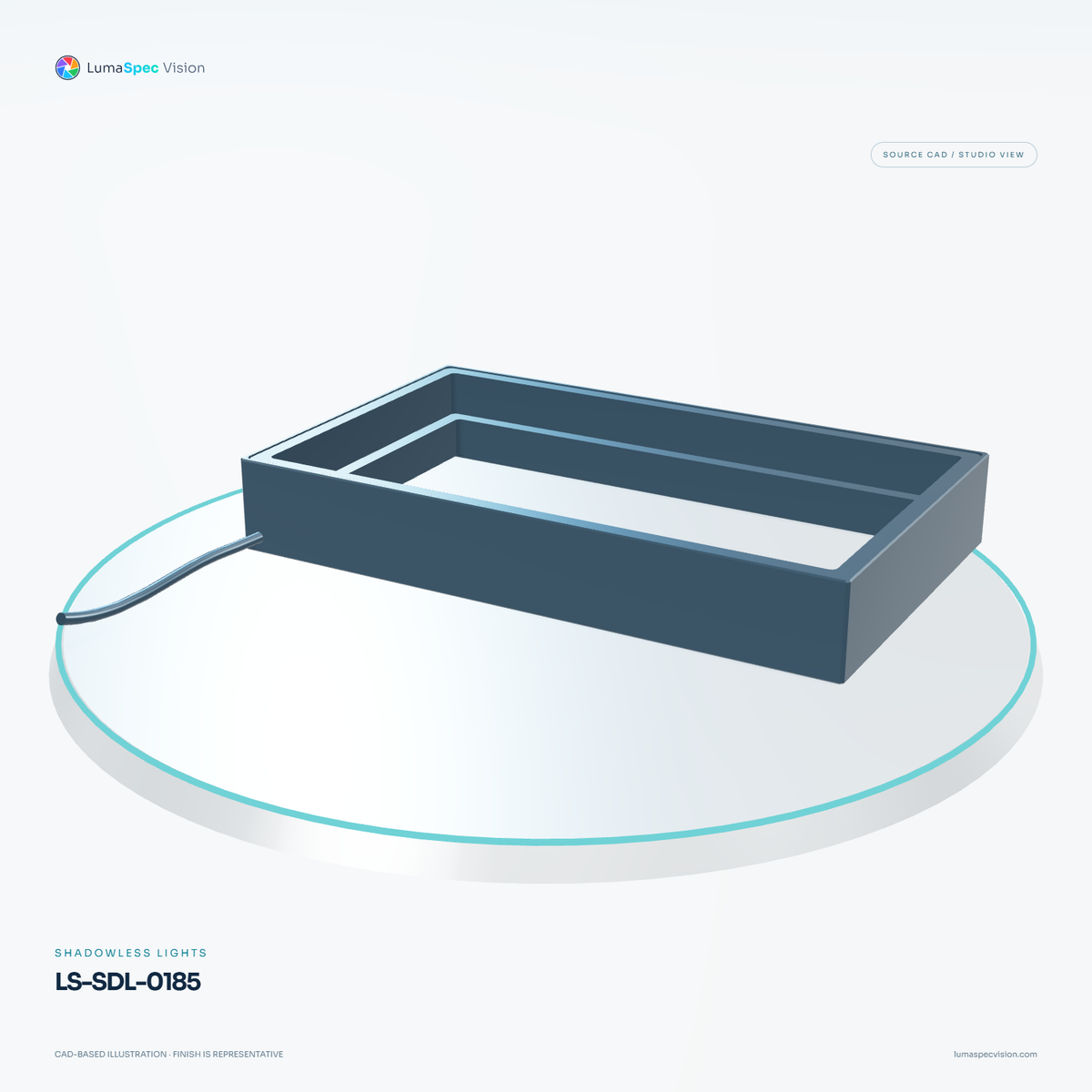

  • LS-SDL-0185 — Shadowless lights, 3D view 2. CAD-based illustration; finish is representative.

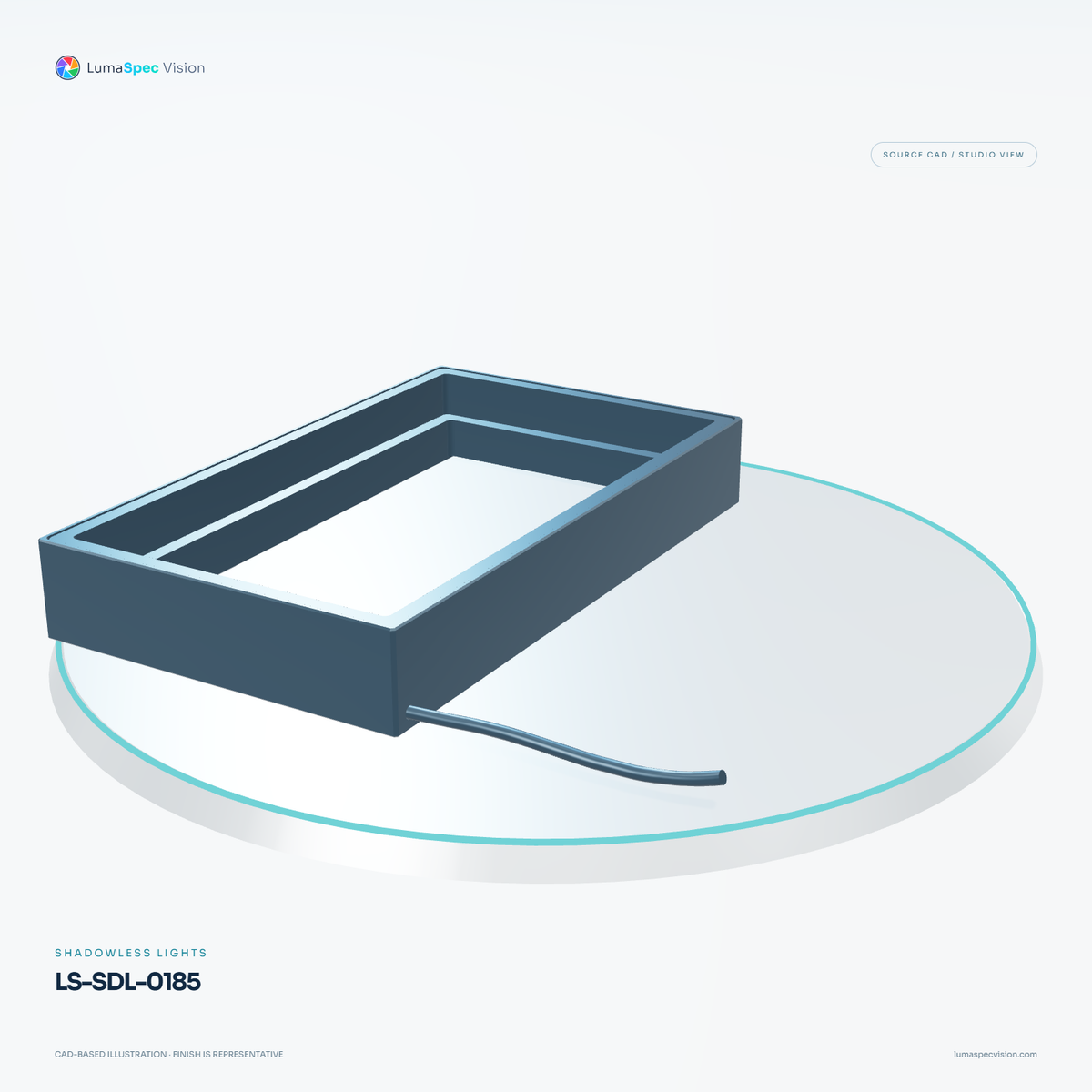

  • LS-SDL-0185 — Shadowless lights, 3D view 3. CAD-based illustration; finish is representative.

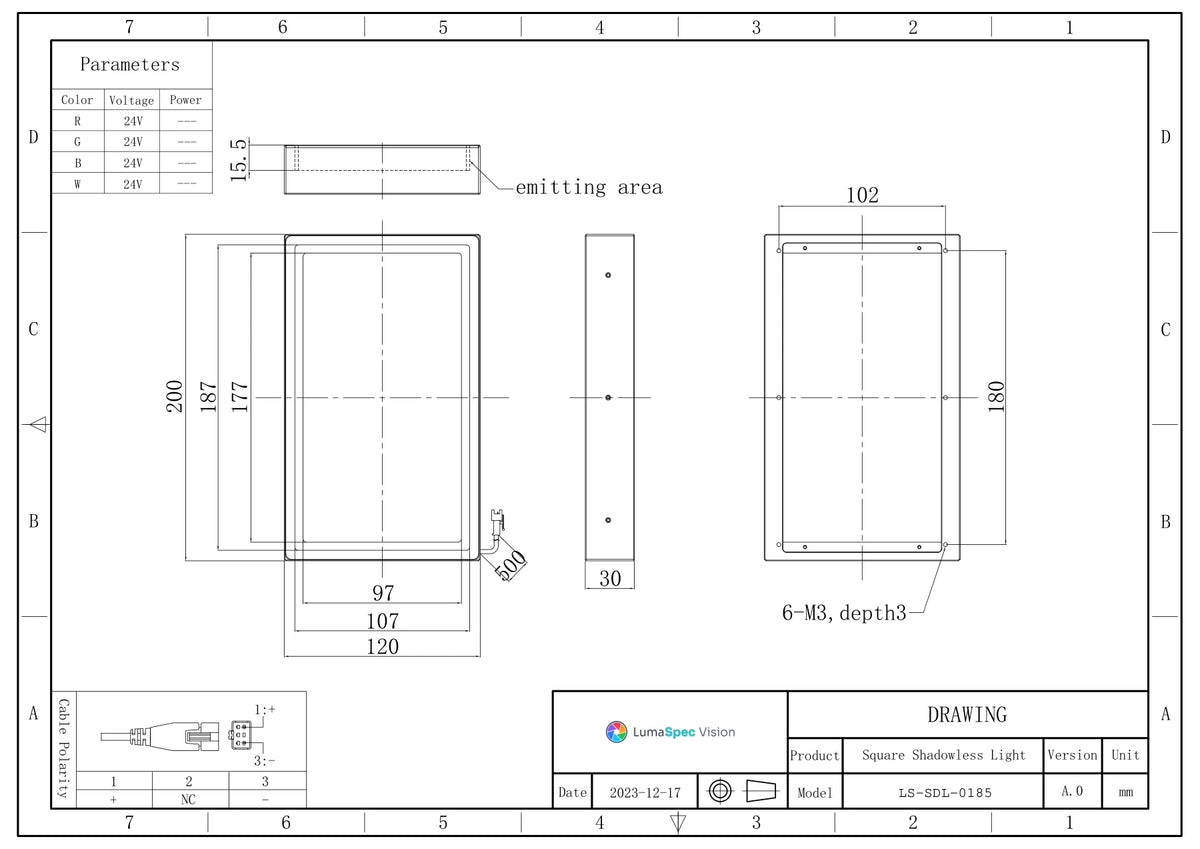

  • LS-SDL-0185 dimensions (mm)

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Shadowless lights

200 x 120 mm Square Flat Shadowless Light (LS-SDL-0185)

Model LS-SDL-0185

  • ColourRed, Green, Blue, White
  • Voltage24 V
  • Power19 W
  • Inner dia177x97 mm
$839.00

Ships in 2-3 weeks

0.65 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

200 x 120 mm Square Flat Shadowless Light (LS-SDL-0185)LS-SDL-0185

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

200 x 120 mm Square Flat Shadowless Light. Square shadowless light with high brightness and high uniformity, ideal for square-shaped objects. It lights the four-corner contours that a ring light struggles to reach and prevents reflective projections; the illumination area can be customized.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SDL-0185
Inner dia (mm)177x97
L x W x H (mm)200x120x30

Interfaces and I/O

Cable lead (mm, per drawings)500

Light

ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)16
Power W/B/G (W)19

Mechanical

Shipping weight (estimated)0.65 kg

Mounting and drawing data

drawing: 6-M3 depth 3, 102 x 180 pattern; emitting face around the perimeter

LS-SDL-0185

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-SDL-0185 — Shadowless lights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Voltage (V)
24
Inner dia (mm)
177x97
Power R (W)
16
Power W/B/G (W)
19

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
