Shadowless lights
20 mm Square Flat Shadowless Light (LS-SDL-0179)
Model LS-SDL-0179
- ColourRed, Green, Blue, White
- Voltage24 V
- Power3 W
- Inner dia5x5 mm
$109.00
Ships in 2-3 weeks
0.2 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
20 mm Square Flat Shadowless Light. Square shadowless light with high brightness and high uniformity, ideal for square-shaped objects. It lights the four-corner contours that a ring light struggles to reach and prevents reflective projections; the illumination area can be customized.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0179 |
|---|---|
| Inner dia (mm) | 5x5 |
| L x W x H (mm) | 20x20x23 |
Interfaces and I/O
| Cable lead (mm, per drawings) | 500 |
|---|
Light
| Colours | Red, Green, Blue, White |
|---|
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 2.5 |
| Power W/B/G (W) | 3 |
Mechanical
| Shipping weight (estimated) | 0.20 kg |
|---|

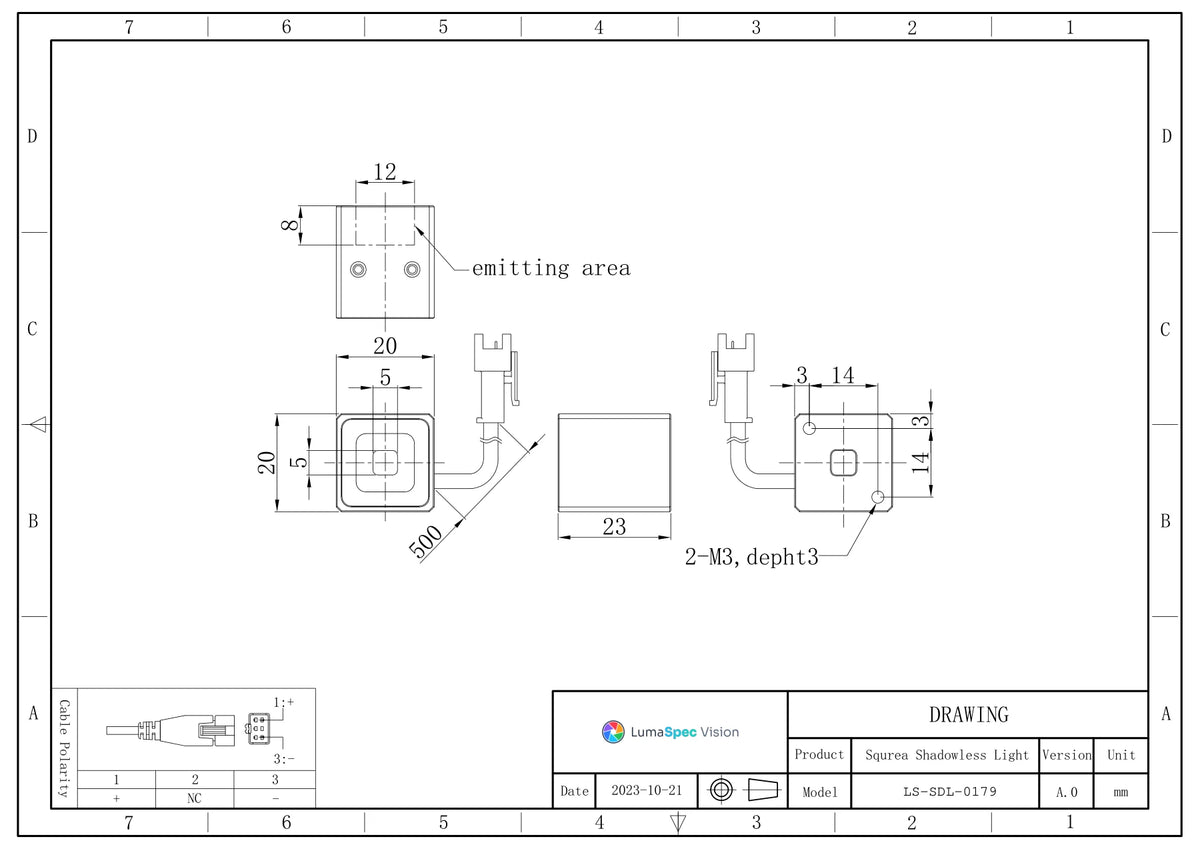

Mounting and drawing data
drawing: 2-M3 depth 3
Other models in the Square shadowless light (LS-SDL-S33) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SDL-0180 | 32 mm | $139.00 | Ships in 2-3 weeks | View |
| LS-SDL-0181 | 48 mm | $179.00 | Ships in 2-3 weeks | View |
| LS-SDL-0182 | 75 mm | $259.00 | Ships in 2-3 weeks | View |
| LS-SDL-0183 | 96 mm | $389.00 | Ships in 2-3 weeks | View |
| LS-SDL-0184 | 120 mm | $449.00 | Ships in 2-3 weeks | View |
| LS-SDL-0185 | 200 x 120 mm | $839.00 | Ships in 2-3 weeks | View |
| LS-SDL-0186 | 300 x 200 mm | $849.00 | Ships in 2-3 weeks | View |
