Square shadowless light (LS-SDL-S01)
  • Square shadowless light (LS-SDL-S01)

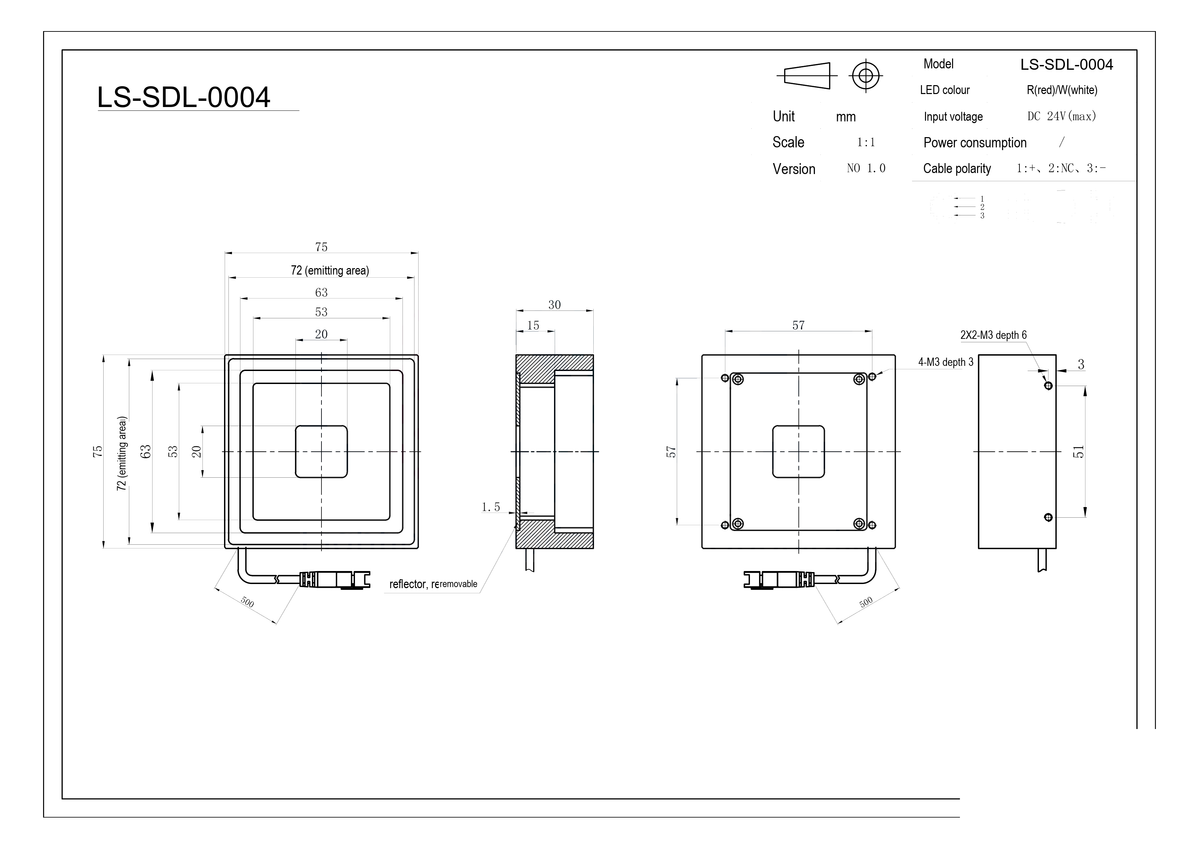

  • LS-SDL-0004 dimensions (mm)

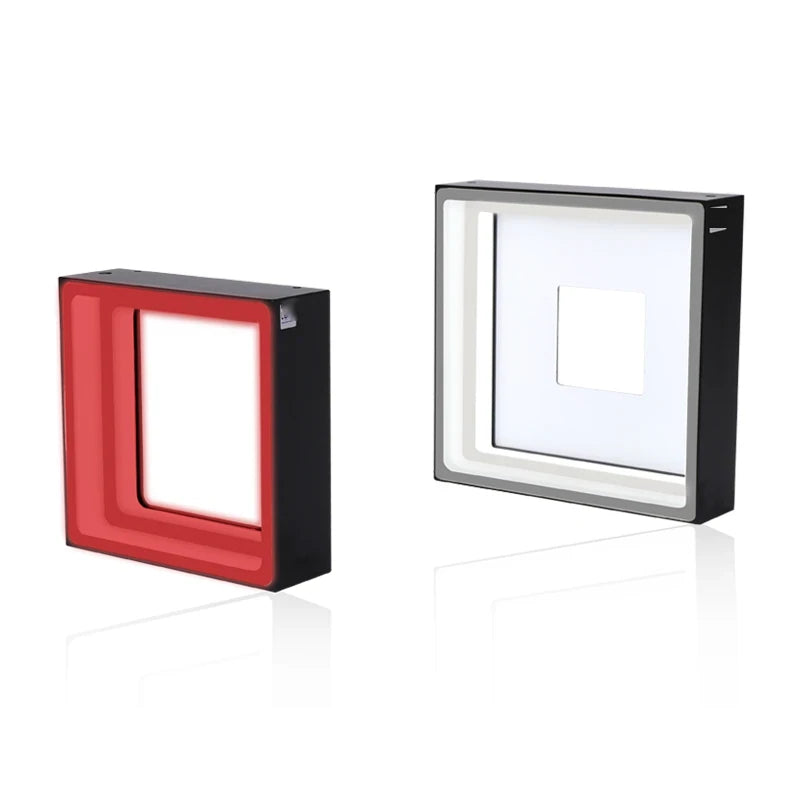

Representative photo of this series

Shadowless lights

Square shadowless light, 75 x 75 x 30 mm (LS-SDL-0004)

Model LS-SDL-0004

  • ColourRed, Blue, Green, White
  • Emitting area72 x 72 mm
  • SizeL75xW75xH30(mm)
  • Voltage24V
  • Power10.6W/11.9W
$259.00

Ships in 2-3 weeks

0.3 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Square shadowless light, 75 x 75 x 30 mm (LS-SDL-0004)LS-SDL-0004

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Unique structure can achieve diffused, even and soft illumination which doesn’t change with the change of altitude. The PCB is fixed with 90 degrees LEDs. Low angle effective illumination can enhance the contrast of features and defects(such as laser printing or etching).

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SDL-0004
NoteUV & IR light can be customized as required.
ReflectorRemovable reflector

Interfaces and I/O

Cable polarity1: +, 2: NC, 3: -
Cable (mm)500 (drawing)

Light

LED colourR(red)/W(white)
Emitting surface (mm)72 x 72

Electrical

Voltage24V
Power10.6W/11.9W
Input voltageDC 24V (max)

Mechanical

DimensionL75xW75xH30(mm)
Mounting holes2×2-M3 depth 6; 4-M3 depth 3
Shipping weight0.30 kg

Other models in the Square shadowless light (LS-SDL-S01) series

See all 10 models
ModelSize / key dataPriceAvailabilityLink
LS-SDL-0001 Red, Blue, Green, White · L32xW32xH30(mm) $139.00 Ships in 2-3 weeks View
LS-SDL-0002 Red, Blue, Green, White · 45 x 45 mm $179.00 Ships in 2-3 weeks View
LS-SDL-0003 Red, Blue, Green, White · 57 x 57 mm $219.00 Ships in 2-3 weeks View
LS-SDL-0005 Red, Blue, Green, White · 93 x 93 mm $339.00 Ships in 2-3 weeks View
LS-SDL-0006 Red, Blue, Green, White · 117 x 117 mm $449.00 Ships in 2-3 weeks View
LS-SDL-0007 Red, Blue, Green, White · 147 x 147 mm $579.00 Ships in 2-3 weeks View
LS-SDL-0008 Red, Blue, Green, White · 177 x 147 mm $729.00 Ships in 2-3 weeks View
LS-SDL-0009 Red, Blue, Green, White · 247 x 137 mm $1,149.00 Ships in 2-3 weeks View
LS-SDL-0010 Red, Blue, Green, White · 342 x 246 mm $1,919.00 Ships in 2-3 weeks View
