Shadowless lights

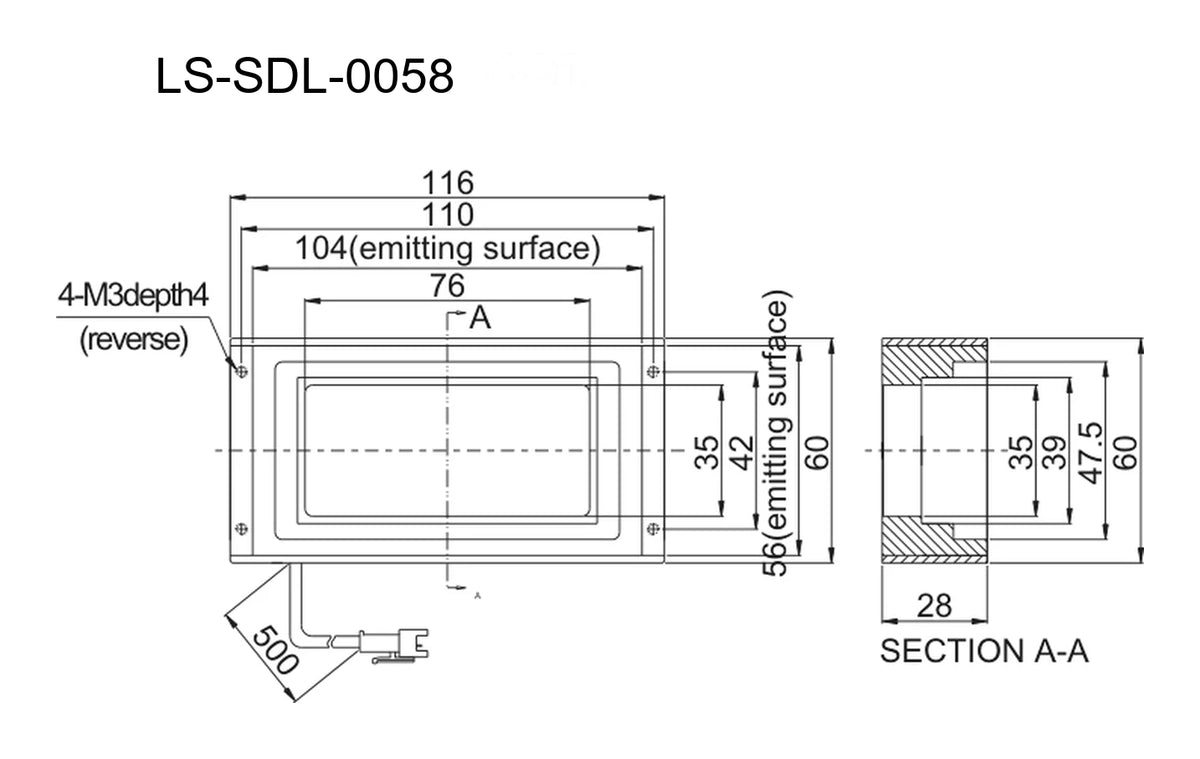

104 x 56 mm Square shadowless light (LS-SDL-0058)
Model LS-SDL-0058
- ColourRed, Green, Blue, White
- Emitting area104 x 56 mm
- Voltage24 V
- Min. size48 mm x 48 mm
$429.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Square shadowless light with a special emitting structure for uniform emission over the working area; efficient low-angle illumination strengthens surface characteristics and highlights defect contrast, for workpieces that need a balanced surface with reduced reflection or flare.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0058 |
|---|---|
| FOV | 1~200 mm |
Optics
| Recommended working distance | 10~150 mm |
|---|
Interfaces and I/O
| Cable length | 500 mm |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
Light
| Colour temperature of white | 6600 K |
|---|---|
| Emitting surface (mm) | 104 x 56 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controllers | Strobe controller, analog controller, digital controller |
| Power (R) | 1.4W |
| Power (G/B/W) | 2.2W |
Mechanical
| Min. size | 48 mm x 48 mm |
|---|---|
| Max. size | 250 mm x 250 mm |
| Weight | 278 g |
Other models in the Square shadowless light (LS-SDL-S10) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SDL-0056 | Red, Green, Blue, White · 24 V | $179.00 | Ships in 2-3 weeks | View |
| LS-SDL-0057 | Red, Green, Blue, White · 24 V | $219.00 | Ships in 2-3 weeks | View |
| LS-SDL-0059 | 108 x 116 mm | $429.00 | Ships in 2-3 weeks | View |
| LS-SDL-0060 | 138 x 146 mm | $569.00 | Ships in 2-3 weeks | View |
| LS-SDL-0061 | 238 x 246 mm | $1,139.00 | Ships in 2-3 weeks | View |
