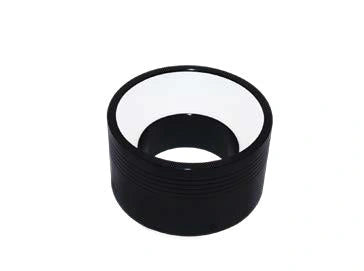

Representative photo of this series
Shadowless lights
130 mm dia. ring-shaped shadowless light (LS-SDL-0141)
Model LS-SDL-0141
- ColourRed, Green, Blue, White, Infrared, UV
- Voltage24 V DC (12 V on request)
- Number of lamp rows2
- Outer diameter130 mm
$489.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ring-shaped light sources provide illumination from different angles, highlighting the three-dimensional information of objects and effectively solving the problem of shadows caused by angled illumination.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0141 |
|---|---|
| Product name | Ring shadowless light |
| Number of lamp rows | 2 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 3.4 |
| Power white/blue/green (W) | 5.7 |

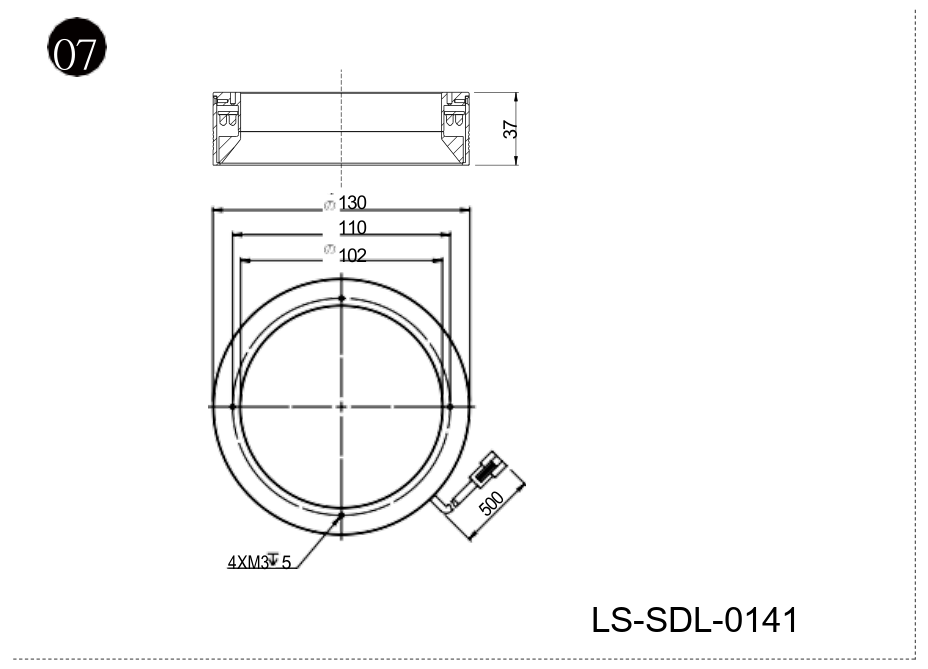

Mechanical
| Outer diameter (mm) | 130 |
|---|---|
| Inner diameter (mm) | 102 |
| Height (mm) | 37 |
| Mounting | 4 x M3 threaded, depth 5 |
| Shipping weight | 0.50 kg |
Other models in the Ring-shaped shadowless light (LS-SDL-S24) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SDL-0135 | 26 mm dia. | $119.00 | Ships in 2-3 weeks | View |
| LS-SDL-0136 | 42 mm dia. | $159.00 | Ships in 2-3 weeks | View |
| LS-SDL-0137 | 66 mm dia. | $229.00 | Ships in 2-3 weeks | View |
| LS-SDL-0138 | 70 mm dia. | $249.00 | Ships in 2-3 weeks | View |
| LS-SDL-0139 | 80 mm dia. | $279.00 | Ships in 2-3 weeks | View |
| LS-SDL-0140 | 88 mm dia. | $389.00 | Ships in 2-3 weeks | View |
