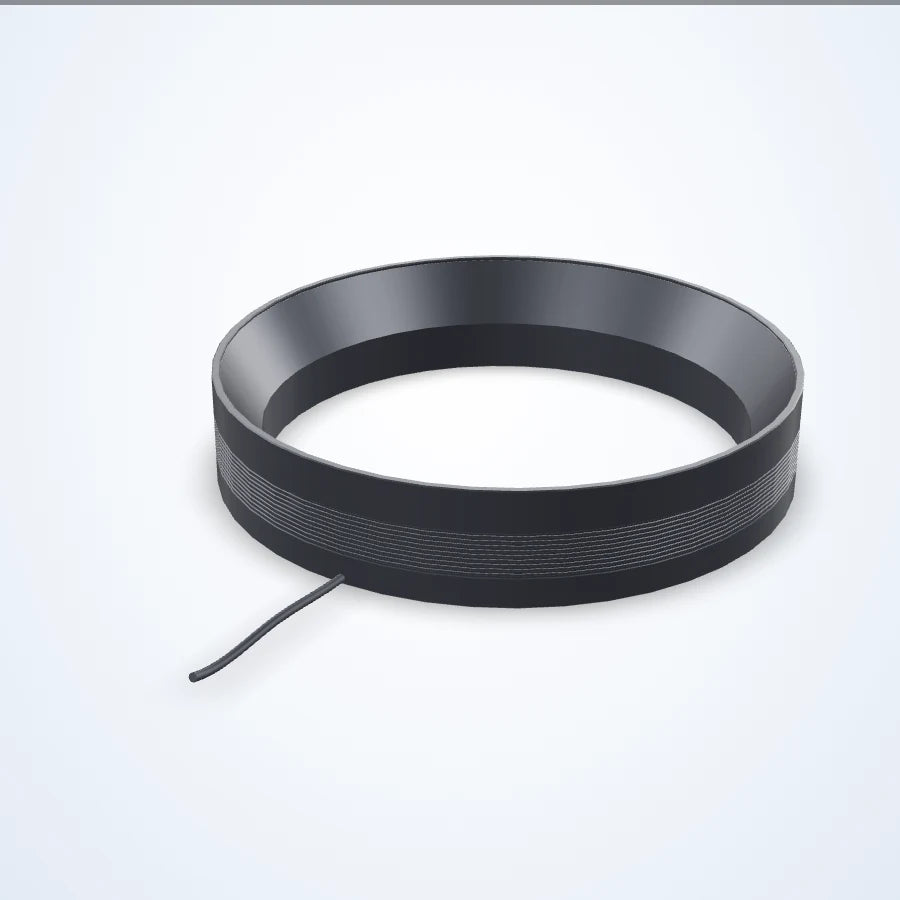

LS-SDL-0172 3D render
  • LS-SDL-0172 3D render

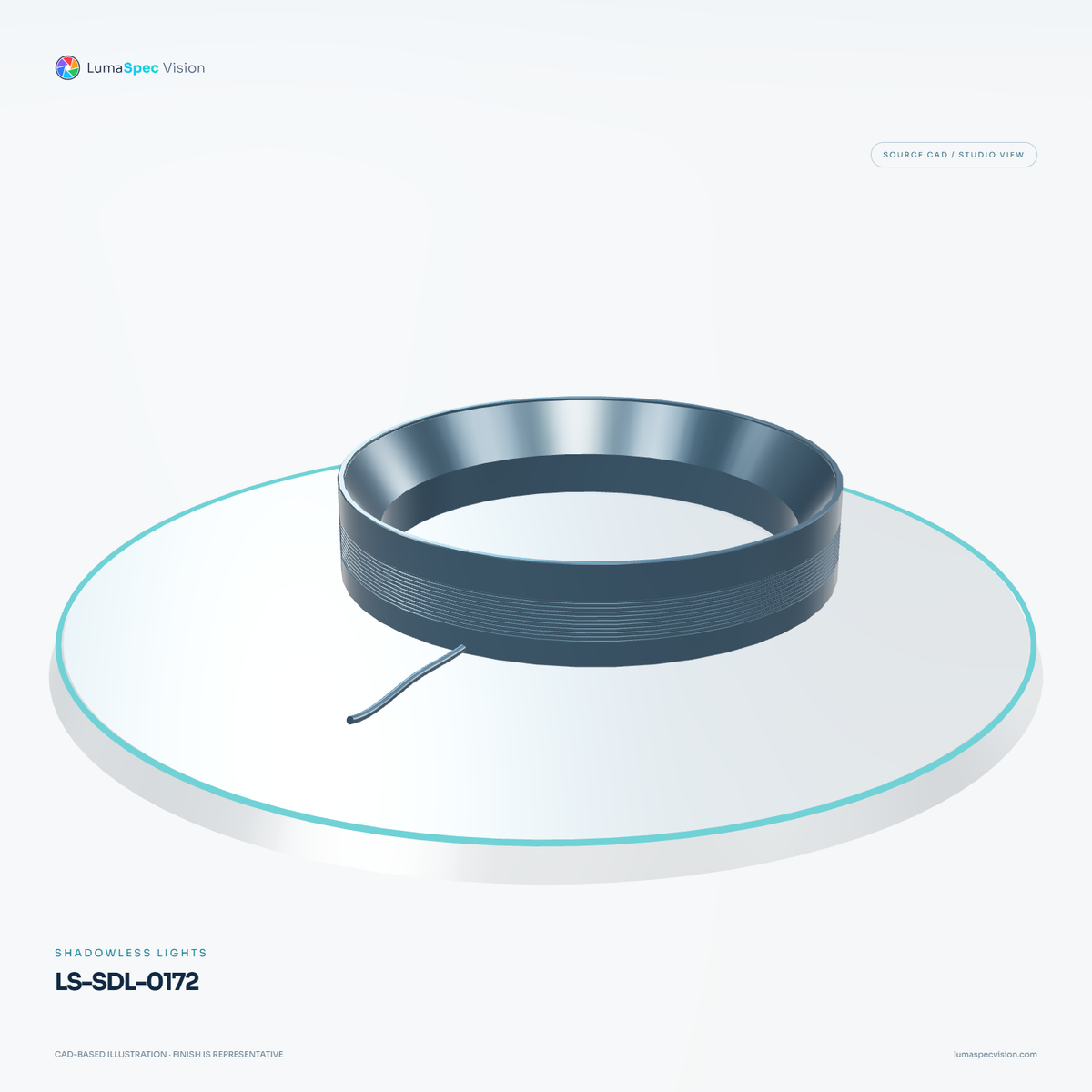

  • LS-SDL-0172 — Shadowless lights, 3D view 1. CAD-based illustration; finish is representative.

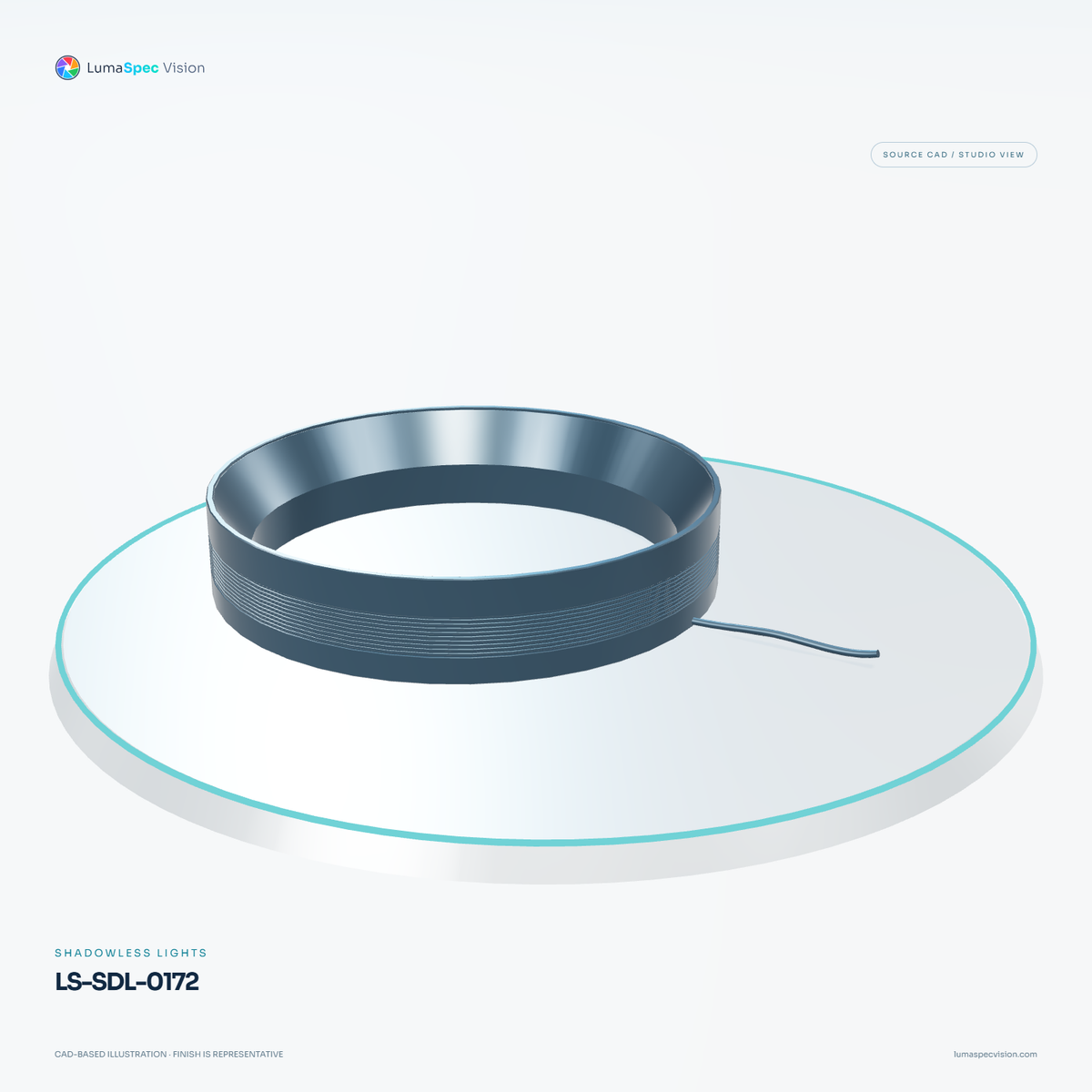

  • LS-SDL-0172 — Shadowless lights, 3D view 2. CAD-based illustration; finish is representative.

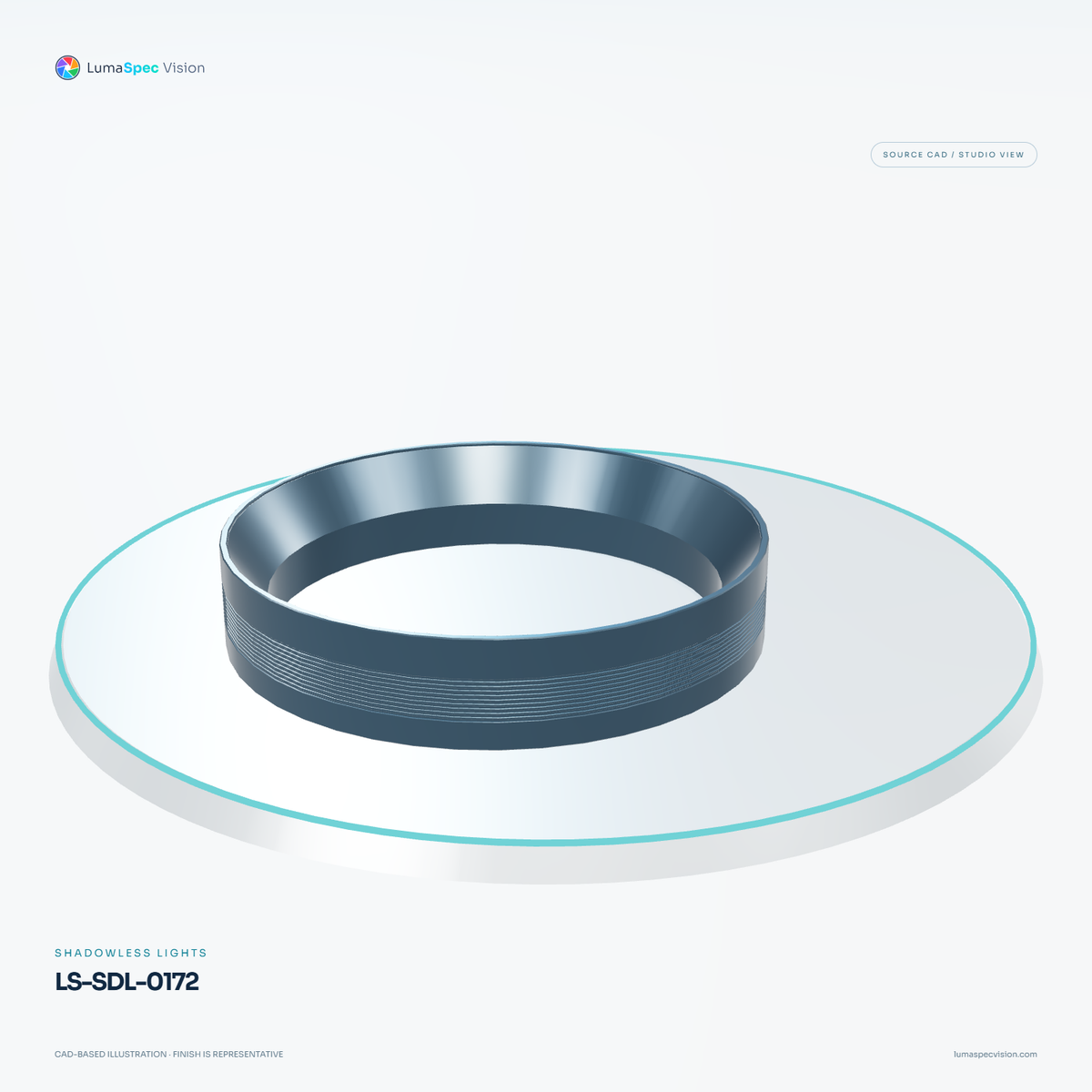

  • LS-SDL-0172 — Shadowless lights, 3D view 3. CAD-based illustration; finish is representative.

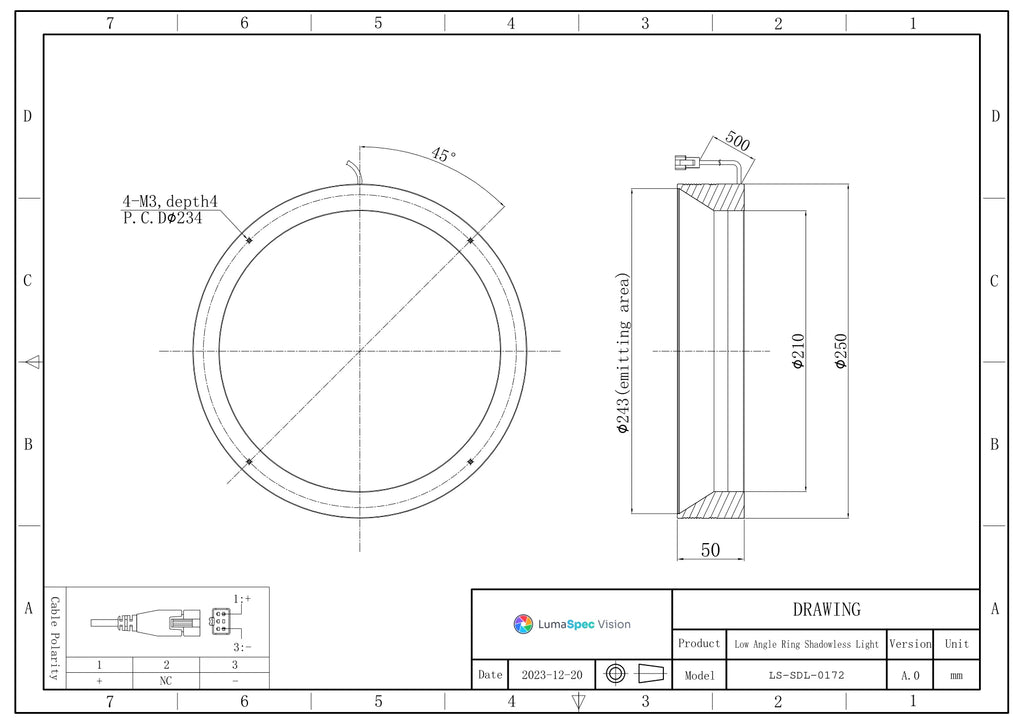

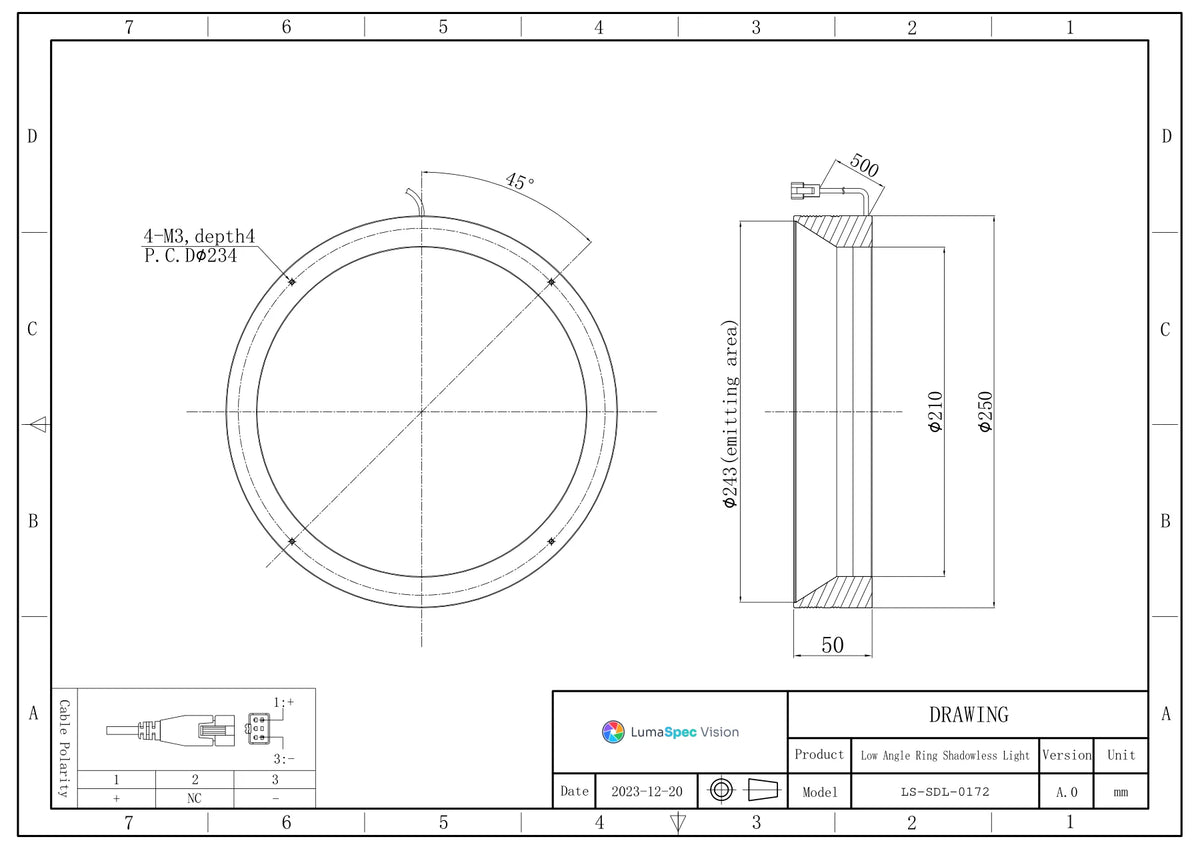

  • LS-SDL-0172 dimensions (mm)

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Shadowless lights

250 mm OD Low-Angle Ring Shadowless Light (LS-SDL-0172)

Model LS-SDL-0172

  • ColourRed, Green, Blue, White
  • Voltage24 V
  • Power15 W
  • Power R14 W
$769.00

Ships in 2-3 weeks

0.65 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

250 mm OD Low-Angle Ring Shadowless Light (LS-SDL-0172)LS-SDL-0172

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

250 mm OD Low-Angle Ring Shadowless Light. Low angle ring shadowless light with high-density LEDs arranged vertically and special light-guiding diffusion. Its efficient low-angle lighting enhances surface features and reduces reflective glare.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SDL-0172
OD x ID x H (mm)250x210x50

Interfaces and I/O

Cable lead (mm, per drawings)500

Light

ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)14
Power W/B/G (W)15

Mechanical

Shipping weight (estimated)0.65 kg

Mounting and drawing data

drawing: 4-M3 depth 4 on P.C.D 234; emitting face dia 243

LS-SDL-0172

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-SDL-0172 — Shadowless lights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

OD x ID x H (mm)
250x210x50
Voltage (V)
24
Power R (W)
14
Power W/B/G (W)
15

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Low angle ring shadowless light (LS-SDL-S30) series

See all 5 models
ModelSize / key dataPriceAvailabilityLink
LS-SDL-0168 88 mm OD $389.00 Ships in 2-3 weeks View
LS-SDL-0169 100 mm OD $389.00 Ships in 2-3 weeks View
LS-SDL-0170 136 mm OD $469.00 Ships in 2-3 weeks View
LS-SDL-0171 180 mm OD $579.00 Ships in 2-3 weeks View
