Shadowless light source / ring light (LS-SDL-S18)
  • Shadowless light source / ring light (LS-SDL-S18)

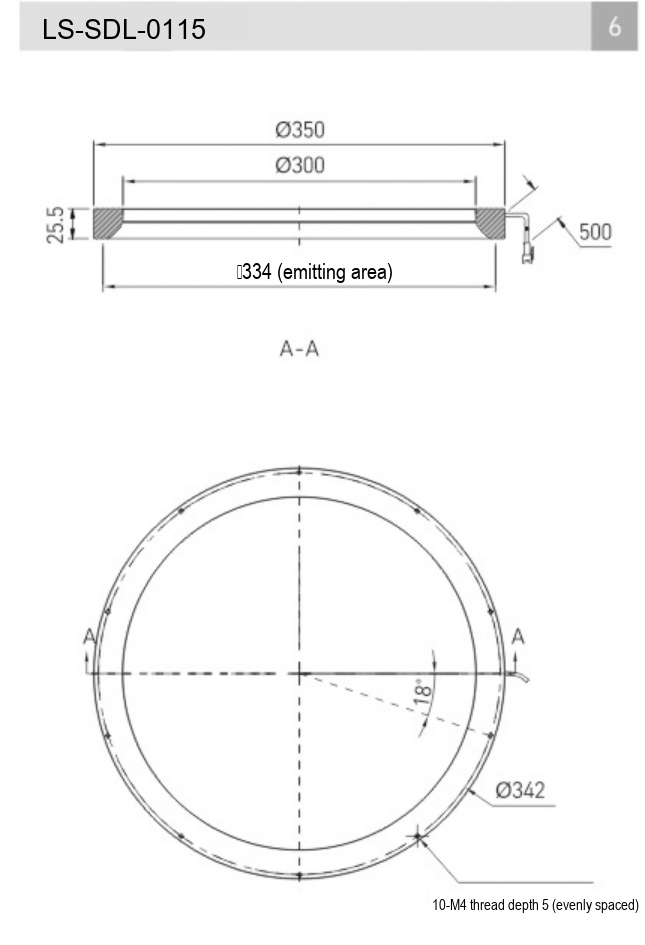

  • LS-SDL-0115 dimensions (mm)

Representative photo of this series

Shadowless lights

334 mm Shadowless light source / ring light (LS-SDL-0115)

Model LS-SDL-0115

  • ColourRed, Green, Blue, White
  • Emitting areadia. 334
  • Voltage24 V
  • Wavelength red620-630 nm
$1,959.00

Ships in 2-3 weeks

1.85 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

334 mm Shadowless light source / ring light (LS-SDL-0115)LS-SDL-0115

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Shadowless ring light with a large irradiated area and high brightness, usable at both high and low working distances.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SDL-0115
Optional accessoriesExtension cable
Service life (red)60000 h continuous at 25 °C, 50% illumination, to 50% decrement
Service life (white)30000 h continuous at 25 °C, 50% illumination, to 50% decrement
Overall OD (mm)350
Overall ID (mm)300
Overall H (mm)25.5

Interfaces and I/O

Cable500 mm

Light

Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue465-475 nm
Colour temperature white6000-6500 K
Wavelength IR850-940 nm
Wavelength UV365-405 nm
Illuminance chart referenceLS-SDL-0111-W; uniformity LS-SDL-0113-W, FOV 120 x 120 mm at LWD 100/150/200 mm
Emitting areadia. 334

Environment and compliance

Storage temperature-20 to 60 °C
Operating temperature0 to 40 °C
Humidity20-85 %RH (non-condensing)

Electrical

ControllerLS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source)
Power R (W)36
Power G/B/W (W)56
Recommended controllerLS-CTL-S69, LS-CTL-S28, LS-CTL-S125
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28

Mechanical

Mounting10-M4 depth 5 (evenly spaced) on dia. 342
Shipping weight1.85 kg

Other models in the Shadowless light source / ring light (LS-SDL-S18) series

See all 6 models
ModelSize / key dataPriceAvailabilityLink
LS-SDL-0110 Red, Green, Blue, White · 24 V $279.00 Ships in 2-3 weeks View
LS-SDL-0111 Red, Green, Blue, White · 24 V $429.00 Ships in 2-3 weeks View
LS-SDL-0112 Red, Green, Blue, White · 24 V $659.00 Ships in 2-3 weeks View
LS-SDL-0113 Red, Green, Blue, White · 24 V $809.00 Ships in 2-3 weeks View
LS-SDL-0114 Red, Green, Blue, White · 24 V $879.00 Ships in 2-3 weeks View
