Shadowless lights
170 mm Low angle shadowless light (LS-SDL-0071)
Model LS-SDL-0071-R
- ColourRed, Green, Blue, White
- Emitting area170 mm
- Voltage24 V
- Power18.8 W/24.5 W
- Largest emitting surface dia. of the 7 models that list it (11 in its series): 170 mm
$529.00
Ships in 2-3 weeks
0.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?

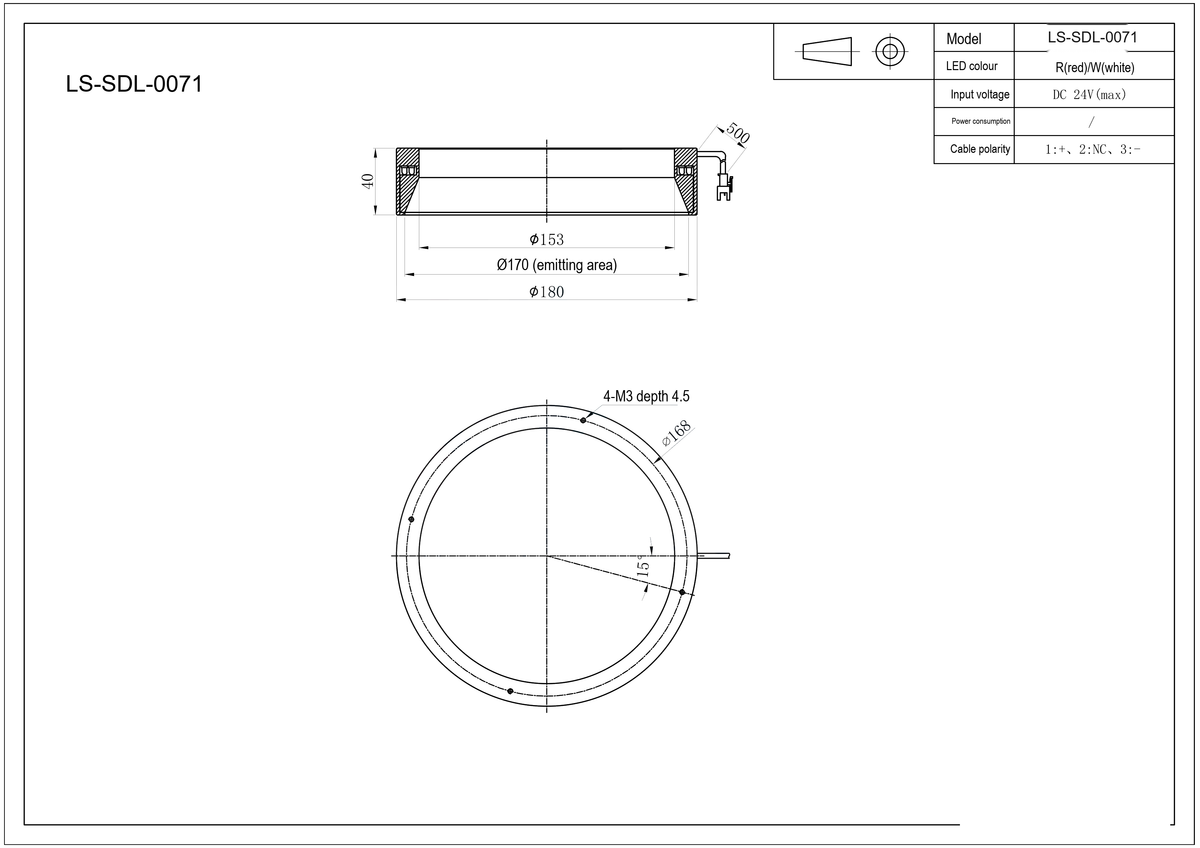

LS-SDL-0071: dimension Outer dia. 180 mm, Inner dia. 153 mm, Height 40 mm; emitting surface dia. 170 mm; power (R) 5.0 W; LED colour R(red)/W(white).
Low-angle shadowless ring light with a special emitting structure for uniform emission; efficient low-angle illumination strengthens surface characteristics, highlights defect contrast and reduces reflections and flare.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SDL-0071 |
|---|---|
| FOV | 1~150 mm |
| Note | UV & IR light can be customized as required. |
Optics
| Recommended working distance | 10~100 mm |
|---|
Interfaces and I/O
| Cable length | 500 mm |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
| Cable polarity | 1: +, 2: NC, 3: - |
Light
| Colour temperature of white | 6600 K |
|---|---|
| Emitting surface dia. (mm) | 170 |
| LED colour | R(red)/W(white) |
Environment and compliance
| Operating temperature | 0 to 50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controllers | Strobe controller, analog controller, digital controller |
| Power (R) | 5.0 W |
| Power (G/B/W) | 8.4 W |
| Power | 18.8 W/24.5 W |
| Input voltage | DC 24 V (max) |
Mechanical
| Min. diameter | dia. 80 |
|---|---|
| Max. diameter | dia. 180 |
| Weight | 404 g |
| Dimension | Outer dia. 180mm, Inner dia. 153mm, Height 40mm |
| Mounting holes | 4-M3 depth 4.5 |
Engineering data
Drive and fit the LS-SDL-0071
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Supply24 V DC
Current at 24 V1021 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 24.5 W
Operating temperature0 to 50 °C
Cable length500 mm
Mounting and installation
| Mounting holes | 4 × M34.5 mm deep |
|---|---|
| Cable | 0.5 m |
As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.
Controllers for this light
30 W per channel at 24 V for this 24.5 W light
36 W per channel at 24 V for this 24.5 W light
4-channel 24 V digital LED light controller, 150 W, RS-232
LS-CTL-0480
- Channels 4
- Output 24 V
$250.00
Ships in 3-4 weeks
37.5 W per channel at 24 V for this 24.5 W light
40 W per channel at 24 V for this 24.5 W light
Digital controller, 16 ch, 450 W
LS-CTL-0421
- Channels 16
- Output Constant voltage 24 V
$1,659.00
Ships in 2-3 weeks
28.1 W per channel at 24 V for this 24.5 W light
60 W per channel at 24 V for this 24.5 W light
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-SDL-0067, a model of this series
Batteries and automotive
Cylindrical battery-end wrap under a ring light
A useful packaging image supports a defined appearance decision.Proposed light housing (spec)Ø120 × 40 mmExplore the study
Set up with the LS-SDL-0113, the same type of part
Food, pharma and agriculture
Culture-dish surface spots
Low, even ring light keeps the medium dark so small raised spots stand out.Light in sourceLS-SDL-0113 · whiteExplore the study
Set up with the LS-SDL-0045, the same type of part
Metal parts and machining
Cutting-bit end-face appearance
Prove the local end-face signal before assigning a wear or damage threshold.Light in sourceLS-SDL-0045 · blueExplore the study
Other models in the Low angle shadowless light (LS-SDL-S11) series
See all 11 models- Largest emitting surface dia. of the 7 models that list it (11 in its series): 170 mm
| Model | Emitting area | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-SDL-0071This model | 170 mm | 18.8 W/24.5 W | $529.00 | Ships in 2-3 weeks | |
| LS-SDL-0062 | 4.4 W/5.4 W | $159.00 | Ships in 2-3 weeks | View | |
| LS-SDL-0063 | 5.8 W/7.2 W | $199.00 | Ships in 2-3 weeks | View | |
| LS-SDL-0064 | 73 mm | 8.6 W/11.5 W | $209.00 | Ships in 2-3 weeks | View |
| LS-SDL-0066 | 80 mm | 10.1 W/11.6 W | $229.00 | Ships in 2-3 weeks | View |
| LS-SDL-0065 | 87 mm | 8.7 W/11.1 W | $349.00 | Ships in 2-3 weeks | View |
| LS-SDL-0068 | 28.8 W/37.5 W | $359.00 | Ships in 2-3 weeks | View | |
| LS-SDL-0067 | 113 mm | 11.6 W/14.4 W | $429.00 | Ships in 2-3 weeks | View |
| LS-SDL-0069 | 142 mm | 31.7 W/39.9 W | $489.00 | Ships in 2-3 weeks | View |
| LS-SDL-0070 | 150 mm | 15.9 W/20.2 W | $489.00 | Ships in 2-3 weeks | View |
| LS-SDL-0072 | 24.5 W/30.3 W | $569.00 | Ships in 2-3 weeks | View |
