Light controllers

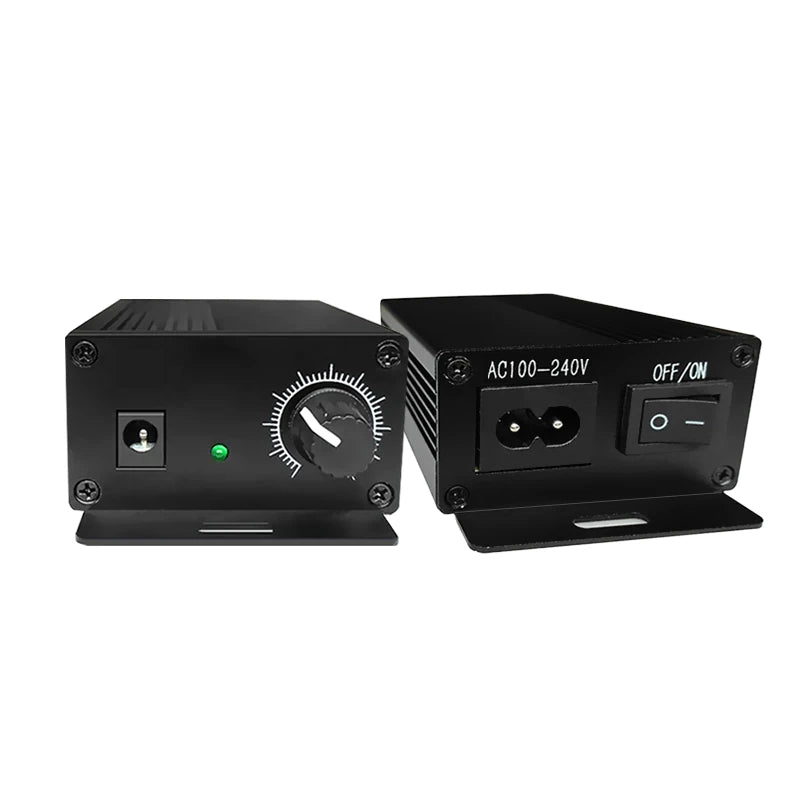

Common controller, single channel analog, 1 ch, 30 W (LS-CTL-0451)
Model LS-CTL-0451
- Channels1
- Output16-24V
- Total output30 W
- Controlanalog
$159.00
Ships in 2-3 weeks
0.3 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Common single channel analog controller with an aluminium alloy shell for good heat dissipation; DC output port, 3P port and adjustable knob.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0451 |
|---|---|
| Type | Analog Common |
| Control | analog |
Environment and compliance
| Operating temperature | -10~50 ℃ |
|---|---|
| Operating humidity | 20~80% |
| Storage temperature | -20~70℃ |
| Storage humidity | 10~90% |
Electrical
| Output voltage DC | 16-24V |
|---|---|
| Maximum current | 1.2A |
| Current | DC |
| Input Volt | AC240C |
| Output Volt | 24V |
| Output Power Per Channel | 30W |
| Input Volt | 100-240VAC |
| Channels | 1 |
| Total output (W) | 30 |
Mechanical

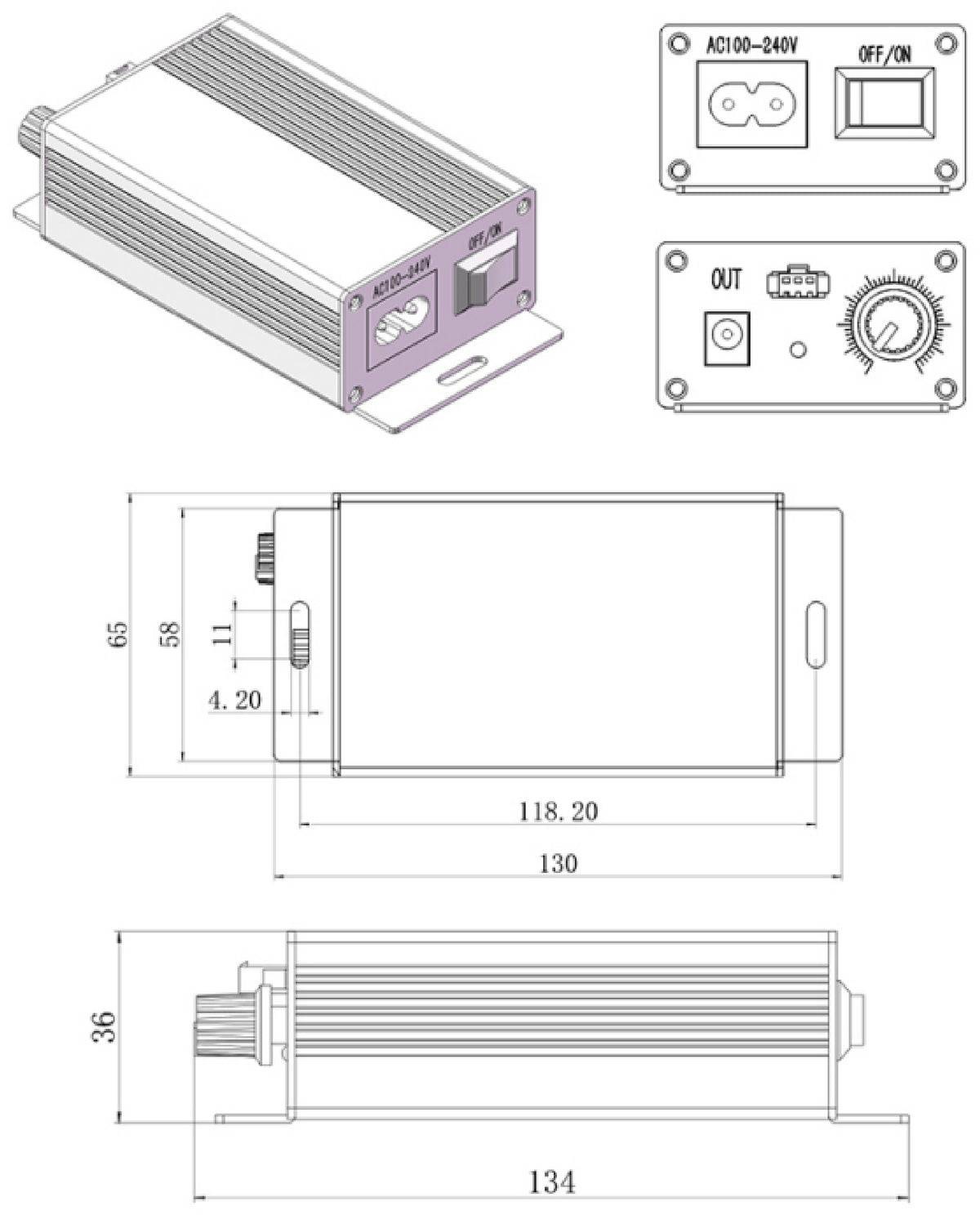

| Dimensions | 134×65×36mm |
|---|---|
| Shipping weight | 0.30 kg |
